Technical specifications
|
| Model: |

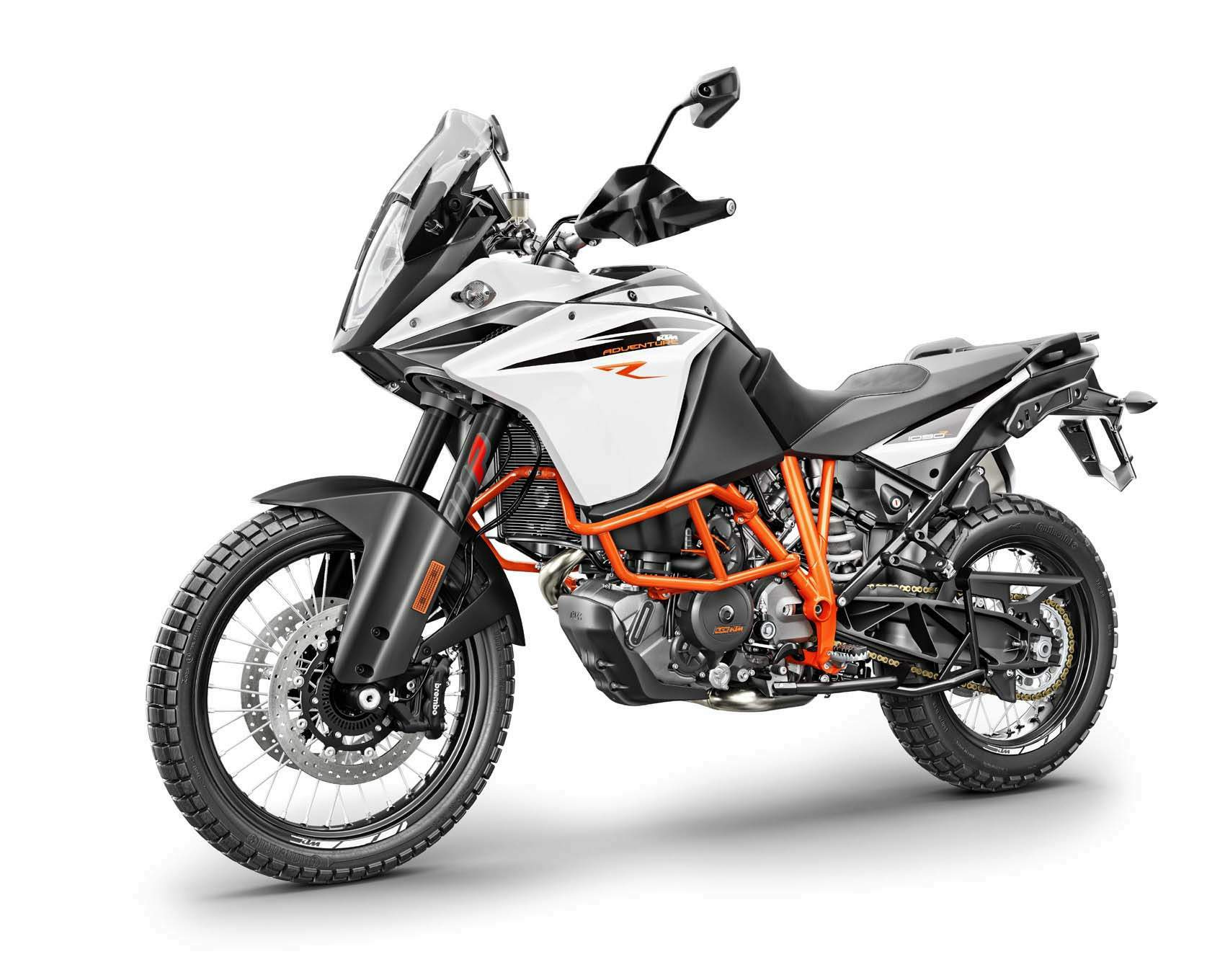

1090 Adventure R |
| Years: |
2017 |
|
Engine:
|
Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
|
|
Capacity:
|
1050 cc / 64.0 cu-in
|
|
Bore x Stroke:
|
103 x 63 mm
|
|
Cooling System:
|
Liquid cooling system, continuous circulation of cooling liquid with water pump
|
|
Compression Ratio:
|
-
|
|
Lubrication:
|
Forced oil lubrication with 3 rotor pumps
|
|
Induction:
|
EFI, ride by wire
|
|
Ignition:
|
Keihin EMS with RBW, twin ignition
|
|
Starting:
|
Electric
|
|
Max Power:
|
125 hp / 91.2 kW @ 8500 rpm
|
|
Max Torque:
|
109 Nm / 80.4 lb.-ft. @ 6500 rpm
|
|
Clutch:
|
PASC (TM) slipper clutch, hydraulically actuated
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain X-Ring 5/8 x 5/16″
|
|
Primary Gear Ratio:
|
40:76
|
|
Secondary Gear Ratio:
|
17:42
|
|
Frame:
|
Chromium-Molybdenum steel trellis frame, powder coated
|
|
Front Suspension:
|
48mm WP Suspension Up Side Down
|
|
Front Wheel Travel:
|
220 mm / 8.7 in
|
|
Rear Suspension:
|
WP-PDS Monoshock
|
|
Rear Wheel Travel:
|
220 mm / 8.7 in
|
|
Front Brakes:
|
2x 320mm discs 4 piston calipers
|
|
Rear Brakes:
|
Single 267mm disc 2 piston caliper
|
|
ABS:
|
Bosch 9M+ Two-channel ABS (incl. offroad mode, disengageable)
|
|
Front Tyre:
|
90/90 R21 Continental TKC 80 Twinduro
|
|
Rear Tyre:
|
150/70 R18 Continental TKC 80 Twinduro
|
|
Rake:
|
26.0°
|
|
Steering Head Angle:
|
64°
|
|
Trail:
|
119.8 mm / 4.72 in.
|
|
Wheelbase:
|
1580 mm / 62.2 in
|
|
Seat Height:
|
890 mm / 35.0 in
|
|
Ground Clearance:
|
250 mm / 9.8 in
|
|
Dry Weight:
|
207 kg / 456.4 lbs
|
|
Fuel Capacity:
|
23 Litres / 6.08 gal
|
