Kawasaki ZX-6R (ZX 636) (2005) technical specifications

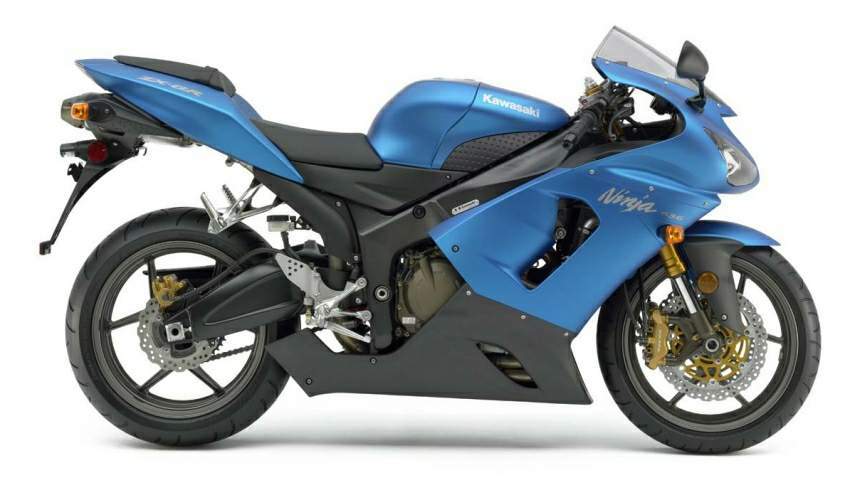

Kawasaki ZX-6R (ZX 636) technical specifications

Kawasaki ZX-6R (ZX 636) is produced in 2005. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 636 cc / 38.8 cub in , produces power 96 kW / 130.5 hp @ 14000 rpm and 70.5 Nm / 7.2 kgf-m / 52 ft. lbs @ 11,500 rpm. Kawasaki ZX-6R (ZX 636) top speed is 263.8 km/h / 163.9 mph. Kawasaki ZX-6R (ZX 636) weighs 164 kg / 361.5 lbs. Kawasaki ZX-6R (ZX 636) has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: ZX-6R (ZX 636)
Years: 2005
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity: 636 cc / 38.8 cub in
Bore x Stroke: 68.9 x 43.8 mm
Compression Ratio: 13.9:1
Cooling System: Liquid cooled
Induction: 4x 38 mm Keihin, twin injection
Lubrication: Wet sump
Ignition: TCBI with Digital advance
Starting: Electric
Spark Plug: NGK, CR 9 E
Motor Oil: Synthetic, 10-60
Max Power: 96 kW / 130.5 hp @ 14000 rpm
Max Torque: 70.5 Nm / 7.2 kgf-m / 52 ft. lbs @ 11,500 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 6 Speed
Final Drive: X-ring chain
Frame: Perimeter, pressed-aluminium
Front Suspension: 41 mm inverted cartridge fork with top-out springs, stepless rebound damping, stepless compression damping, fully-adjustable spring preload
Front Wheel Travel: 120 mm / 4.5 in
Rear Suspension: Bottom-Link Uni-Trak® with gas-charged shock, top-out spring and pillow ball upper mount, dual-range (high/low-speed) stepless compression damping, 25-way Adjustable rebound damping, fully-adjustable spring preload
Rear Wheel Travel: 133 mm / 5.2 in
Front Brakes: 2 x 300mm discs, 4 piston calipers
Rear Brakes: Single 210mm disc, 1 piston caliper
Front Tyre: 120/65 ZR17
Rear Tyre: 180/55 ZR17
Rake: 25°
Trail: 109 mm / 4.3 in
Dimensions: Length 2105 mm / 2.8 in Width 715 mm / 28.1 in Height 1110 mm / 43.7 in
Wheelbase: 1405 mm / 55.3 in.
Seat Height: 820 mm / 32.3 in.
Dry-Weight: 164 kg / 361.5 lbs
Wet-Weight: 185 kg / 407.8 lbs
Fuel Capacity: 17 Litres / 4.5 gal
Standing ¼ Mile: 11.0. sec
Top Speed: 263.8 km/h / 163.9 mph

Riders reviews(1)

Vladi
2020.12.30 11:48
Appearance
5
Comfort
4
not so comfortable, but it's a sport bike
Performance
5
fastest in 600cc class
Durability
5
no major problems
Maintcost
3
like any other bikes
