Kawasaki ZX-6R Ninja (2017) technical specifications

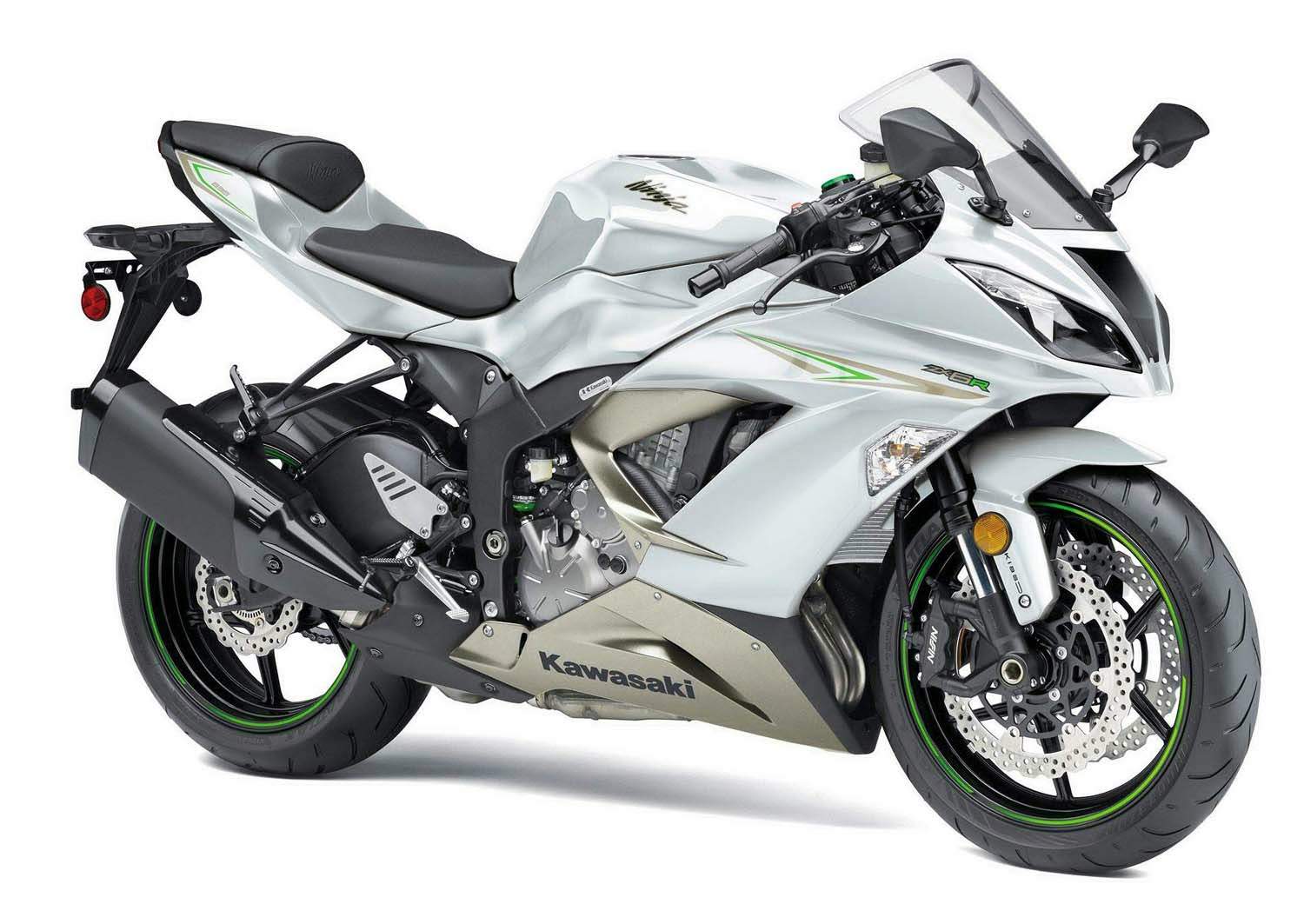

![Kawasaki ZX-6R Ninja technical specifications Kawasaki ZX-6R Ninja technical specifications](https://www.moto-data.net/media/kawasaki/pics/kawasaki-zx-6r-ninja-2017[1].jpg)
Kawasaki ZX-6R Ninja is produced in 2017. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 636 cc / 38.8 cub in , produces power 97.7 kW / 131 hp @ 13500 rpm and 71 Nm / 7.2 kgf.m / 52.4 lb-ft @ 11500 rpm. Kawasaki ZX-6R Ninja wet weight is 192 kg / 423.4 lbs - 194 kg / 427.8 lbs ABS. Kawasaki ZX-6R Ninja has 3 photos.
Technical specifications
+ Add to 'Compare list'Model: | ZX-6R Ninja |
Years: | 2017 |
Engine: | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
Capacity: | 636 cc / 38.8 cub in |
Bore x Stroke: | 67.0 x 45.1mm |
Compression Ratio: | 12.9:1 |
Cooling System: | Liquid cooled |
Induction: | DFI® with four 38mm Keihin throttle bodies and oval sub-throttles |
Lubrication: | Forced lubrication, wet sump |
Ignition: | TCBI with digital advance |
Starting: | Electric |
Max Power: | 97.7 kW / 131 hp @ 13500 rpm |
Max Torque: | 71 Nm / 7.2 kgf.m / 52.4 lb-ft @ 11500 rpm |
Clutch: | Wet multi-disc, manual |
Transmission: | 6 Speed |
Final Drive: | 520 series X-ring chain |
Gear Ratios: | 1st 2.714 (38/14) / 2nd 2.200 (33/15) / 3rd 1.850 (37/20) / 4th 1.600 (32/20 / 5th 1.421 (27/19) / 6th 1.300 (26/20) Final reduction ratio 2.688 (43/16) |
Final Reduction Ratio: | 2.688 (43/16) |
Steering angle (left/right): | 27° / 27° |
Frame: | Aluminum perimeter |
Front Suspension: | 41mm inverted Showa BP-SFF fork with top-out springs, stepless compression and rebound damping, adjustable spring preload |
Rear Wheel Travel: | 134.6 mm / 5.3 in |
Rear Suspension: | Bottom-link Uni-Trak® with gas-charged shock, top-out spring and pillow ball upper mount, stepless compression damping, 25-way adjustable rebound damping, fully adjustable spring preload |
Front Brakes: | 2 x 310mm petal rotors with dual radial-mount, Nissin four-piston, monobloc calipers and available KIBS ABS |
Rear Brakes: | Single 220mm petal rotor with single-piston caliper and KIBS ABS |
Front Tyre: | 120/70 ZR17 |
Rear Tyre: | 180/55 ZR17 |
Rake: | 23.5° |
Trail: | 103 mm / 4.0 in. |
Dimensions: | Length 2085 mm / 82.1 in Width 705 mm / 27.8 in Height 1115 mm / 43.9 in |
Wheelbase: | 1395 mm / 54.9 in. |
Seat Height: | 830.5 mm / 32.7 in. |
Ground Clearance: | 120 mm / 4.0 in |
Wet Weight: | 192 kg / 423.4 lbs - 194 kg / 427.8 lbs ABS |
Fuel Capacity: | 17 Litres 4.5 US gal |
