Kawasaki ZX-6R Ninja (2013) technical specifications

Kawasaki ZX-6R Ninja is produced in 2013. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 636 cc / 38.8 cub in , produces power 97.7 kW / 131 hp @ 13500 rpm and 71 Nm / 7.2 kgf.m / 52.4 lb-ft @ 11500 rpm. Kawasaki ZX-6R Ninja wet weight is 192 kg / 423.4 lbs - 194 kg / 427.8 lbs ABS. Kawasaki ZX-6R Ninja has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	ZX-6R Ninja
Years:	2013

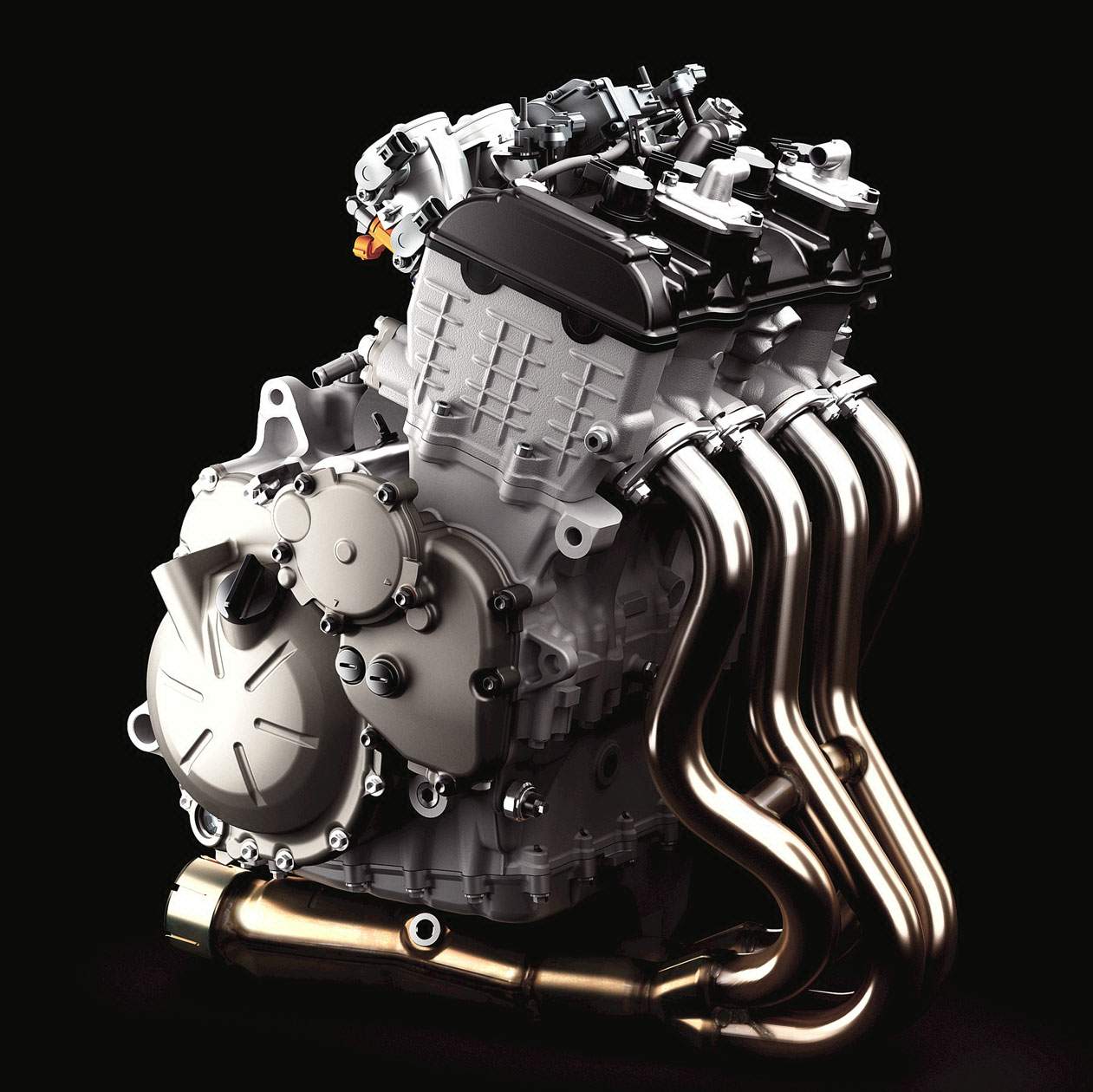

Engine:	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity:	636 cc / 38.8 cub in
Bore x Stroke:	67.0 x 45.1mm
Compression Ratio:	12.9:1
Cooling System:	Liquid cooled
Induction:	DFI® with four 38mm Keihin throttle bodies and oval sub-throttles
Lubrication:	Forced lubrication, wet sump
Ignition:	TCBI with digital advance
Starting:	Electric
Max Power:	97.7 kW / 131 hp @ 13500 rpm
Max Torque:	71 Nm / 7.2 kgf.m / 52.4 lb-ft @ 11500 rpm
Clutch:	Wet multi-disc, manual
Transmission:	6 Speed
Final Drive:	520 series X-ring chain
Gear Ratios:	1st 2.714 (38/14) / 2nd 2.200 (33/15) / 3rd 1.850 (37/20) / 4th 1.600 (32/20 / 5th 1.421 (27/19) / 6th 1.300 (26/20) Final reduction ratio 2.688 (43/16)
Final Reduction Ratio:	2.688 (43/16)
Steering angle (left/right):	27° / 27°
Frame:	Aluminum perimeter
Front Suspension:	41mm inverted Showa BP-SFF fork with top-out springs, stepless compression and rebound damping, adjustable spring preload
Rear Wheel Travel:	134.6 mm / 5.3 in
Rear Suspension:	Bottom-link Uni-Trak® with gas-charged shock, top-out spring and pillow ball upper mount, stepless compression damping, 25-way adjustable rebound damping, fully adjustable spring preload
Front Brakes:	2 x 310mm petal rotors with dual radial-mount, Nissin four-piston, monobloc calipers and available KIBS ABS
Rear Brakes:	Single 220mm petal rotor with single-piston caliper and KIBS ABS
Front Tyre:	120/70 ZR17
Rear Tyre:	180/55 ZR17
Rake:	23.5°
Trail:	103 mm / 4.0 in.
Dimensions:	Length 2085 mm / 82.1 in Width 705 mm / 27.8 in Height 1115 mm / 43.9 in
Wheelbase:	1395 mm / 54.9 in.
Seat Height:	830.5 mm / 32.7 in.
Ground Clearance:	120 mm / 4.0 in
Wet Weight:	192 kg / 423.4 lbs - 194 kg / 427.8 lbs ABS
Fuel Capacity:	17 Litres 4.5 US gal
