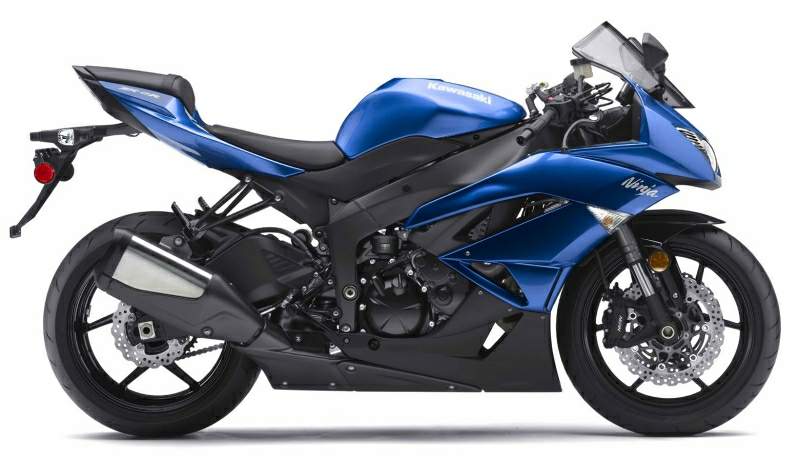

Kawasaki ZX-6R (2009) technical specifications

Kawasaki ZX-6R is produced in 2009. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 599 cc / 36.6 cub in , produces power 94.1 kW / 128 hp @ 14000 rpm and 66.7 Nm / 6.8 kgf-m / 49.2 lb-ft @ 11800 rpm. Kawasaki ZX-6R top speed is 257.8 km/h / 160.2 mph. Kawasaki ZX-6R wet weight is 191 kg / 421 lbs. Kawasaki ZX-6R has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	ZX-6R
Years:	2009
Engine:	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity:	599 cc / 36.6 cub in
Bore x Stroke:	67 x 42.5mm
Compression Ratio:	13.3:1
Cooling System:	Liquid cooled,
Induction:	DFI® with four 38mm Keihin throttle bodies, oval sub-throttles, two injectors per throttle body
Ignition:	TCBI with digital advance
Starting:	Electric
Max Power:	94.1 kW / 128 hp @ 14000 rpm
Max Power Ram Air:	98.5 kW / 134 hp @ 14000 rpm
Max Torque:	66.7 Nm / 6.8 kgf-m / 49.2 lb-ft @ 11800 rpm
Clutch:	Wet multi-disc, manual
Transmission:	6 Speed
Final Drive:	Sealed Chain
Gear Ratios:	1st 2.714 (38/14) / 2nd 2.200 (33/15) / 3rd 1.850 (37/20) / 4th 1.600 (32/20) / 5th 1.421 (27/19) / 6th 1.300 (26/20) Final reduction ratio 2.688 (43/16)
Primary Reduction Ratio:	1.900 (76/40)
Frame:	Aluminum perimeter
Front Suspension:	41 mm inverted Showa Big Piston Front fork with top-out springs, stepless compression and rebound damping, fully-adjustable spring preload,
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Bottom-Link Uni-Trak® with gas-charged shock, top-out spring and pillow ball upper mount, dual-range (high/low-speed) stepless compression damping, 25-way adjustable rebound damping, fully-adjustable spring preload
Rear Wheel Travel:	134 mm / 5.2 in.
Front Brakes:	2x 300mm discs, 4 piston calipers
Rear Brakes:	Single 220mm disc, 1 piston caliper
Front Tyre:	120/70 ZR17
Rear Tyre:	180/55 ZR17
Rake:	24°
Trail:	102 mm / 4.0 in.
Dimensions:	Length 2090 mm / 2.3 in Width 705 mm / 28.0 in Height 1115 mm /43.9 in
Wheelbase:	1400 mm / 5.1 in
Ground Clearance:	120 mm / 4.72 in
Seat Height:	815 mm / 32.3 in.
Wet Weight:	191 kg / 421 lbs
Fuel Capacity:	17 Litres / 4.5 US gal
Consumption Average:	5.3 L/100 km / 18.9 km/l 44.5 US mpg
Standing ¼ Mile:	11.1 sec
Top Speed:	257.8 km/h / 160.2 mph
