Kawasaki ZX-12R Ninja (2002) technical specifications

Kawasaki ZX-12R Ninja technical specifications

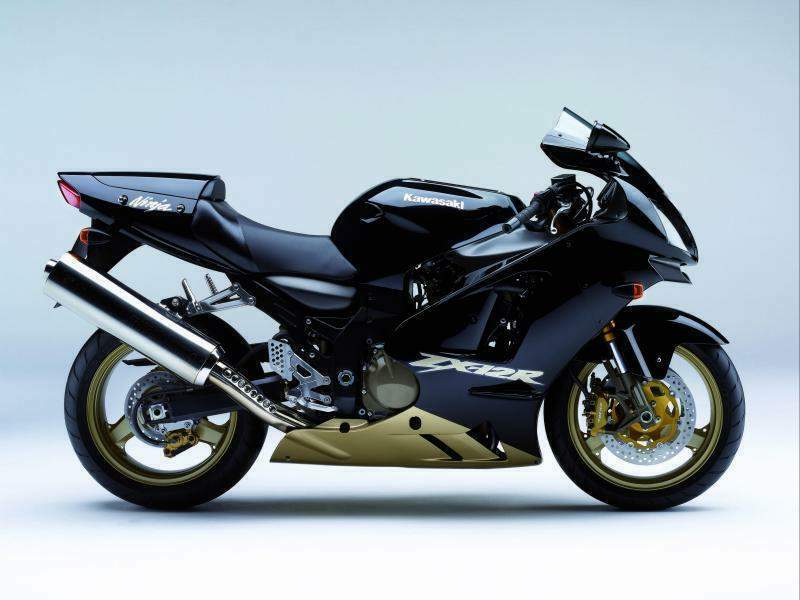

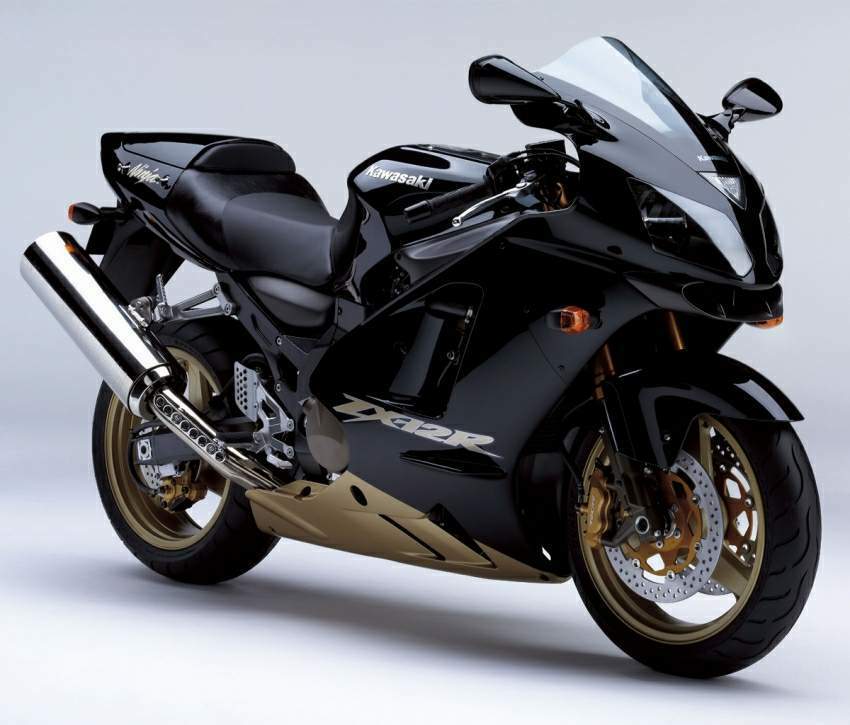

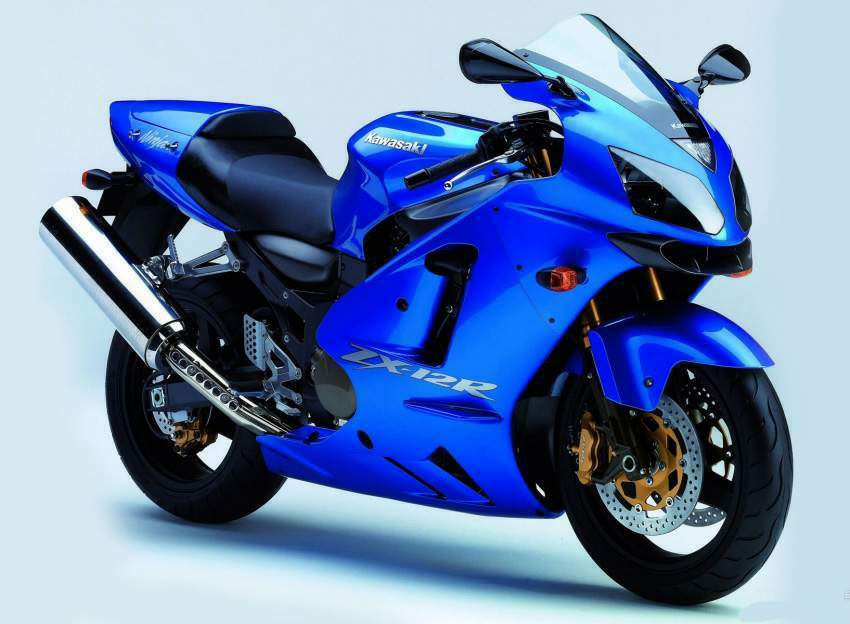

Kawasaki ZX-12R Ninja is produced in 2002. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder., displacement 1199 cc / 73.1 cu-in , produces power 178 hp / 131 kW @ 10500 rpm and 134 Nm / 13.66 kgf-m @ 7500 rpm. Kawasaki ZX-12R Ninja top speed is 303.2 km/h / 188.3 mph. Kawasaki ZX-12R Ninja weighs 210 kg / 463 lbs.. Kawasaki ZX-12R Ninja has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: ZX-12R Ninja
Years: 2002
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Capacity: 1199 cc / 73.1 cu-in
Bore x Stroke: 83 x 55.4 mm
Compression Ratio: 12.2:1
Cooling System: Liquid cooled
Lubrication: Wet sump
Engine Oil: Synthetic, 10W/40
Induction: Electronic fuel injection
Ignition: Digital ignition
Spark Plug: NGK, CR9EKPA
Starting: Electric
Max Power: 178 hp / 131 kW @ 10500 rpm
Max Torque: 134 Nm / 13.66 kgf-m @ 7500 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 6 Speed
Final Drive: Chain
Front Suspension: 43mm upside-down cartridge fork with adjustable preload, 12-way rebound and 12-way compression damping.
Front Wheel Travel: 120 mm / 4.5 in
Rear Suspension: Bottom-Link with gas-charged shock: piggy-back reservoir, adjustable spring preload, 18-way rebound and 20-way compression damping
Rear Wheel Travel: 123 mm / 4.8 in
Front Brakes: 2x 320mm discs 6 piston calipers
Rear Brakes: Single 230mm disc 2 piston caliper
Front Tyre: 120/70 ZR17
Rear Tyre: 200/50 ZR17
Rake: 24°
Trail: 107 mm / 3.9 in
Dimensions: Length 2120 mm / 82.1 in Width 739 mm / 29.1 in Height 1199 mm / 47.2 in
Wheelbase: 1450 mm / 57.1 in
Seat Height: 820 mm / 32.3 in
Ground clearance: 119 mm / 4.7 in.
Dry Weight: 210 kg / 463 lbs.
Wet Weight: 245 kg / 540 lbs
Fuel Capacity: 20 Litres / 5.0 gal
Consumption average: 14.8 km/lit
Standing ¼ Mile: 10.3 sec
Top Speed: 303.2 km/h / 188.3 mph
