Technical specifications
|
| Model: |

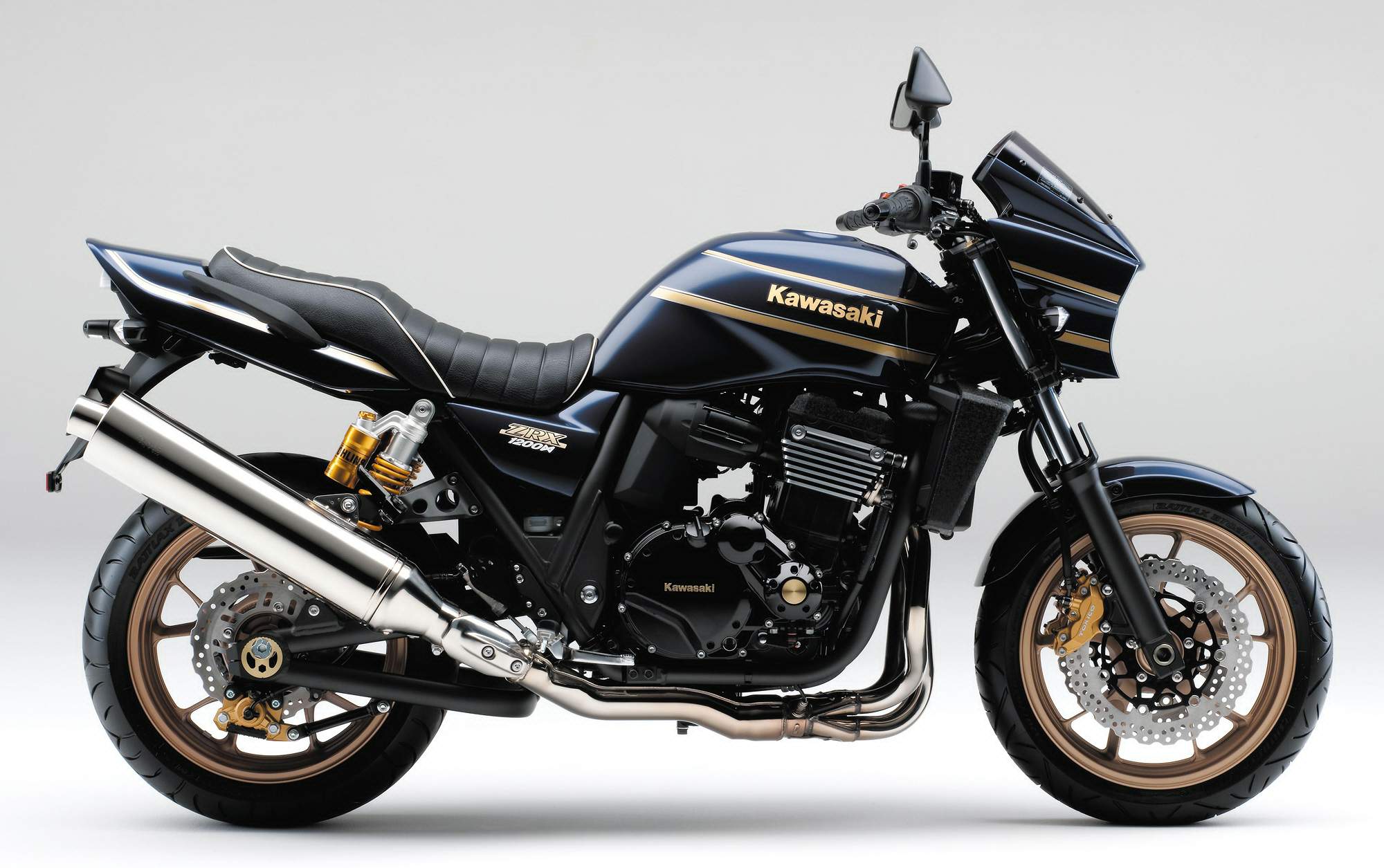

ZRX 1200R DAEG Special Edition |
| Years: |
2015-16 |
|
Engine:
|
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
|
|
Capacity:
|
1165 cc / 71.0 cu-in
|
|
Bore x Stroke:
|
79 x 59.4 mm.
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
10.1:1
|
|
Induction:
|
Fuel Injection, with Z1000 based fuel pump.
|
|
Ignition:
|
Digital with K-TRICK
|
|
Starting:
|
Electric
|
|
Max Power:
|
110 hp / 80.3 kW @ 8000 rpm
|
|
Max Torque:
|
107 Nm / 78.9 lb-ft @ 6000 rpm
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
43 mm fully adjustable, conventional cartridge-type fork, offers 12-way compression and rebound damping adjustment as well as fork spring preload
|
|
Rear Suspension:
|
Fully adjustable rear Ohlins Shocks
|
|
Front Brakes:
|
2x 310mm discs 6 piston calipers
|
|
Rear Brakes:
|
Single 250mm disc 2 piston caliper
|
|
Front Tyre:
|
120/70 ZR17
|
|
Rear Tyre:
|
180/55 ZR17
|
|
Wheelbase:
|
1465 mm / 57.7 in
|
|
Seat Height:
|
790 mm / 31.1 in
|
|
Dry Weight:
|
223 kg / 491.6 lbs
|
|
Fuel Capacity:
|
19 Litres / 5.0 US gal
|
