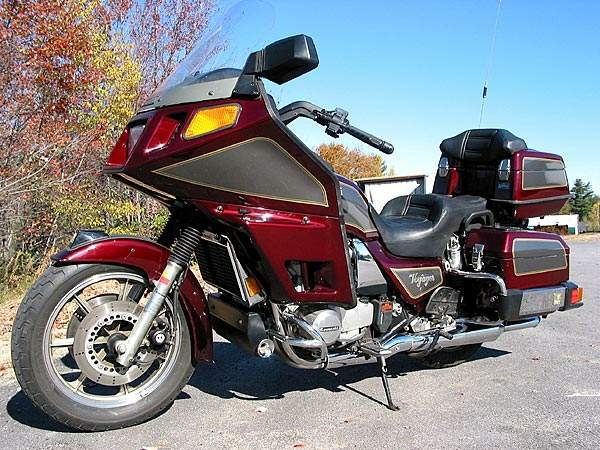

Kawasaki ZG 1300 Voyager (1987-89) technical specifications
Kawasaki ZG 1300 Voyager is produced in 1987-89. Engine is Four stroke transverse four cylinder. DOHC, 4 valve per cylinder, displacement 1286 cc / 78.5 cub in. , produces power 96.9 kW / 130 hp @ 8000 rpm and 118 Nm / 12.03 kgf-m / 87 ft. lbs @ 6500 rpm. Kawasaki ZG 1300 Voyager top speed is 233.3 km/h / 145 mph. Kawasaki ZG 1300 Voyager weighs 324 kg / 714.3 lbs. Kawasaki ZG 1300 Voyager has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | ZG 1300 Voyager |
| Years: | 1987-89 |
| Engine: | Four stroke transverse four cylinder. DOHC, 4 valve per cylinder |
| Capacity: | 1286 cc / 78.5 cub in. |
| Bore x Stroke: | 62 x 71 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 9.3;1 |
| Lubrication: | Wet, Multi-disc, Manual |
| Induction: | Mikuni fuel injection |
| Ignition: | Electronic with vacuum advance |
| Starting: | Electric |
| Max Power: | 96.9 kW / 130 hp @ 8000 rpm |
| Max Torque: | 118 Nm / 12.03 kgf-m / 87 ft. lbs @ 6500 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Shaft |
| Gear Ratio: | transmission (1) 41/16, 2.56 (2)36/20.1.80 (3)33/24,1,38 (4)30/27,1.11 (5)27/29,0.93 overall (1) 11.72 (2) 8.23 (3) 6.29 (4) 5.08 (5) 4.26 |
| Frame: | Double-downtube, full-cradle frame; box-section steel swing arm |
| Front Suspension: | 41mm Kayaba air adjustable forks |
| Rear Suspension: | Dual Kayaba shocks, fully adjustable. |
| Front Brakes: | 2x 266mm discs 1 piston caliper |
| Rear Brakes: | Single 296mm disc 1 piston caliper |
| Front Tyre: | 130/90-16 |
| Rear Tyre: | 150/90-15 |
| Seat Height: | 757 mm |
| Dry Weight: | 324 kg / 714.3 lbs |
| Wet Weight: | 417 kg / 916 lbs |
| Fuel Capacity: | 27 Litres / 7.1 US gal |
| Standing ¼ Mile: | 13.1 sec / 100 mp/h |
| Consumption average: | 34 mpg |
| Top Speed: | 233.3 km/h / 145 mph |
