Technical specifications
|
| Model: |

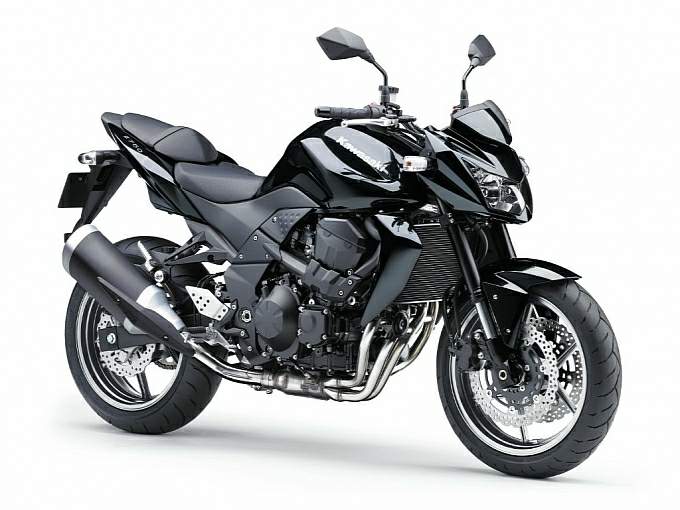

Z750 Urban Sports Special Edition |
| Years: |
2011-12 |
|
Engine:
|
Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.
|
|
Capacity:
|
748 cc / 45.6 cu-in
|
|
Bore x Stroke:
|
68.4 x 50.9 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
11.3:1
|
|
Induction:
|
Fuel injection: ø 32 mm x 4 (Keihin) with oval sub-throttles
|
|
Ignition:
|
Digital
|
|
Starting:
|
Electric
|
|
Max Power:
|
77.7 kW / 106 hp @ 10500 rpm
|
|
Max Torque:
|
78 Nm / 8.0 kg-fm @ 8300 rpm
|
|
Clutch:
|
Multiple wet plate manual
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Tubular backbone (with engine sub-frame), high-tensile steel
|
|
Front Suspension:
|
41mm telescopic forks
|
|
Front Wheel Travel:
|
120 mm / 4.7 in
|
|
Rear Suspension:
|
Bottom link, Uni-Trak, 4-way rebound adjustment, 7-way preload
|
|
Rear Wheel Travel:
|
124 mm / 4.9 in
|
|
Front Brakes:
|
2x 300mm discs 2 piston caliper
|
|
Rear Brakes:
|
Single 200mm disc 1 piston caliper
|
|
Front Tyre:
|
120/70 -17
|
|
Rear Tyre:
|
180/55 –17
|
|
Rake:
|
24.5°
|
|
Trail:
|
103 mm / 4.1 in
|
|
Dimensions:
|
Length 2085 mm / 82.1 in Width 805 mm / 31.7 in Height 1100 mm / 43.3 in
|
|
Wheelbase:
|
1440 mm / 56.7 in
|
|
Seat Height:
|
815 mm / 32.1 in
|
|
Ground Clearance:
|
155 mm / 6.1 in
|
|
Dry Weight:
|
207.0 kg / 456.4 lbs
|
|
Fuel Capacity:
|
18.5 Litres / 4.8 US gal
|
|
Consumption Average:
|
19.2 km/lit
|
|
Standing ¼ Mile:
|
11.2 sec
|
|
Top Speed:
|
233.1 km/h
|
