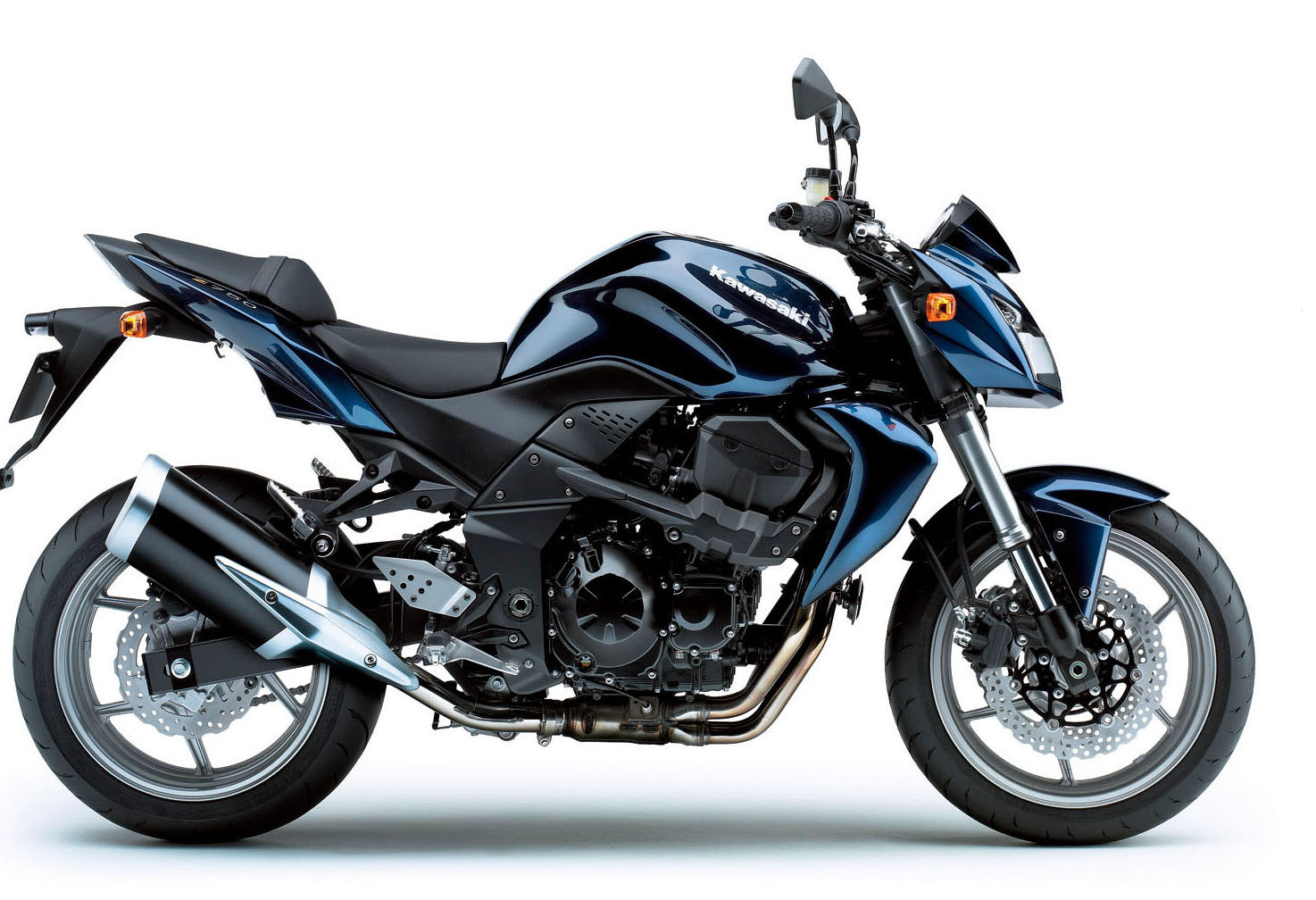

Kawasaki Z 750 (2009-10) technical specifications

Kawasaki Z 750 is produced in 2009-10. Engine is Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder., displacement 748 cc / 45.6 cu-in , produces power 77.7 kW / 106 hp @ 10500 rpm and 78 Nm / 8.0 kg-fm @ 8300 rpm. Kawasaki Z 750 top speed is 233.1 km/h. Kawasaki Z 750 weighs 207.0 kg / 456.4 lbs. Kawasaki Z 750 has 3 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Z 750
Years:	2009-10
Engine:	Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.
Capacity:	748 cc / 45.6 cu-in
Bore x Stroke:	68.4 x 50.9 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.3:1
Induction:	Fuel injection: ø 32 mm x 4 (Keihin) with oval sub-throttles
Ignition:	Digital
Starting:	Electric
Max Power:	77.7 kW / 106 hp @ 10500 rpm
Max Torque:	78 Nm / 8.0 kg-fm @ 8300 rpm
Clutch:	Multiple wet plate manual
Transmission:	6 Speed
Final Drive:	Chain
Frame:	Tubular backbone (with engine sub-frame), high-tensile steel
Front Suspension:	41mm telescopic forks
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Bottom link, Uni-Trak, 4-way rebound adjustment, 7-way preload
Rear Wheel Travel:	124 mm / 4.9 in
Front Brakes:	2x 300mm discs 2 piston caliper
Rear Brakes:	Single 200mm disc 1 piston caliper
Front Tyre:	120/70 -17
Rear Tyre:	180/55 –17
Rake:	24.5°
Trail:	103 mm / 4.1 in
Dimensions:	Length 2085 mm / 82.1 in Width 805 mm / 31.7 in Height 1100 mm / 43.3 in
Wheelbase:	1440 mm / 56.7 in
Seat Height:	815 mm / 32.1 in
Ground Clearance:	155 mm / 6.1 in
Dry Weight:	207.0 kg / 456.4 lbs
Fuel Capacity:	18.5 Litres / 4.8 US gal
Consumption Average:	19.2 km/lit
Standing ¼ Mile:	11.2 sec
Top Speed:	233.1 km/h
