Technical specifications
|
| Model: |

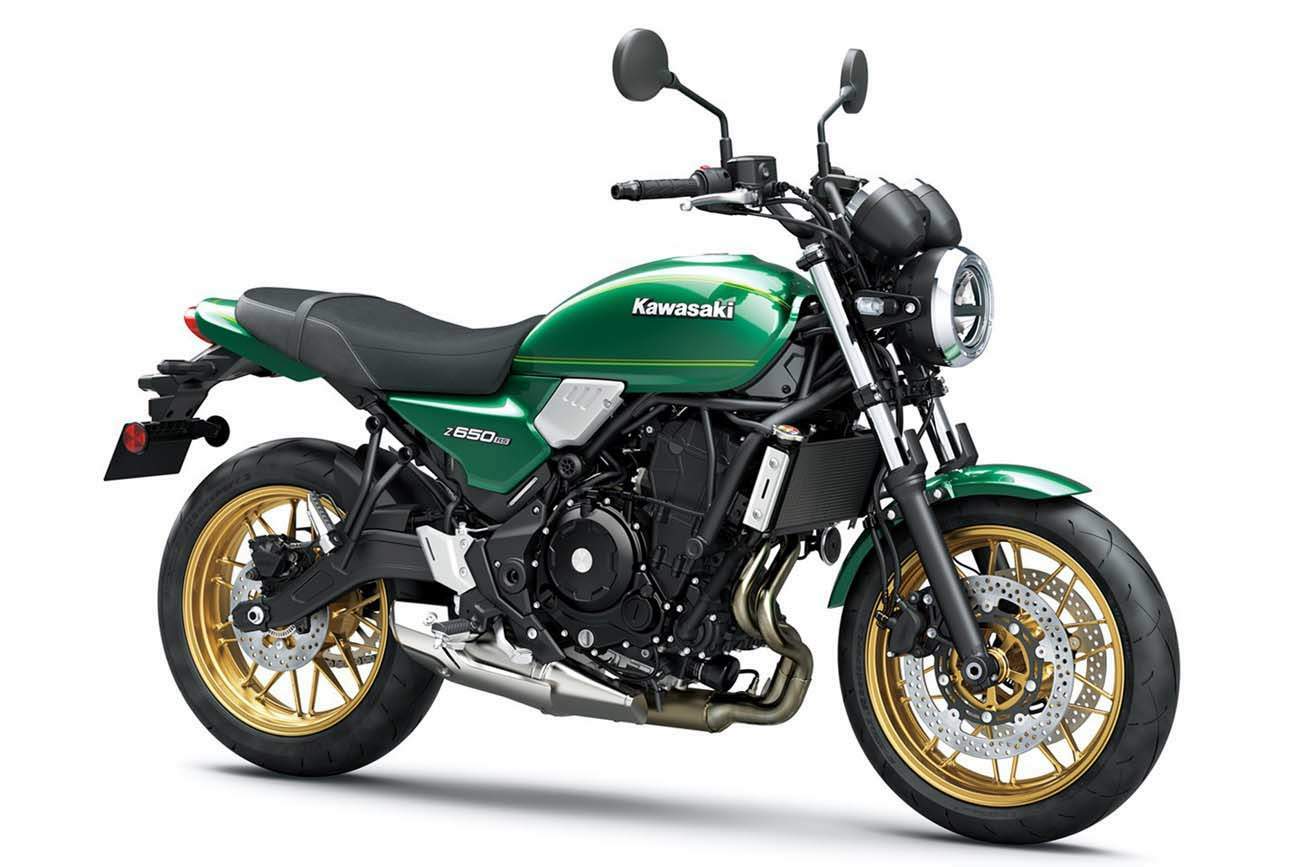

Z 650RS |
| Years: |
2022 |
|
Engine:
|
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
|
|
Capacity:
|
649 cc / 39.65 cu-in
|
|
Bore x Stroke:
|
83 x 60 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
10.8:1
|
|
Lubrication:
|
Forced lubrication, semi‑dry sump
|
|
Induction:
|
DFI with Keihin 36mm x 2 throttle bodies
|
|
Emission:
|
EURO5
|
|
Ignition:
|
TCBI with electronic advance
|
|
Starting:
|
Electric
|
|
Max Power:
|
50.2 kW / 67.3 hp @ 8000 rpm
|
|
Max Torque:
|
64 Nm / 47.2 lb-ft @ 6700 rpm
|
|
Clutch:
|
Wet multi-disc, manual
|
|
Transmission:
|
6 Speed, return
|
|
Final Drive:
|
Sealed chain
|
|
Primary Reduction Ratio:
|
2.095 (88/42)
|
|
Gear Ratio:
|
1st 2.438 (39/16) 2nd 1.714 (36/21) 3rd 1.333 (32/24) 4th 1.111 (30/27) 5th 0.966 (28/29) 6th 0.852 (23/27)
|
|
Frame:
|
Trellis, high-tensile steel
|
|
Front Suspension:
|
41 mm hydraulic telescopic fork
|
|
Front Wheel Travel:
|
125 mm / 4.9 in
|
|
Rear Suspension:
|
Horizontal back-link with adjustable preload swingarm
|
|
Rear Wheel Travel:
|
130 mm / 5.1 in
|
|
Front Brakes:
|
2x 300mm discs, 2 piston calipers
|
|
Rear Brakes:
|
Single 220mm disc, 1 piston caliper
|
|
ABS:
|
Bosch advanced
|
|
Front Tyre:
|
120/70ZR17M/C (58W)
|
|
Rear Tyre:
|
160/60ZR17M/C (69W)
|
|
Rake:
|
24°
|
|
Trail:
|
100 mm / 3.9 in
|
|
Dimensions:
|
Length 2065 mm / 81.3 in Width 800 mm / 31.4 in Height 1115 mm / 43.8 in
|
|
Wheelbase:
|
1405 mm / 55.3 in
|
|
Seat Height:
|
820 mm / 32.2 in
|
|
Ground Clearance:
|
135 mm / 4.9 in
|
|
Wet Weight:
|
187 kg / 412.3 lbs
|
|
Fuel Capacity:
|
12 Litres / 3.1 US gal
|
