Technical specifications
|
| Model: |

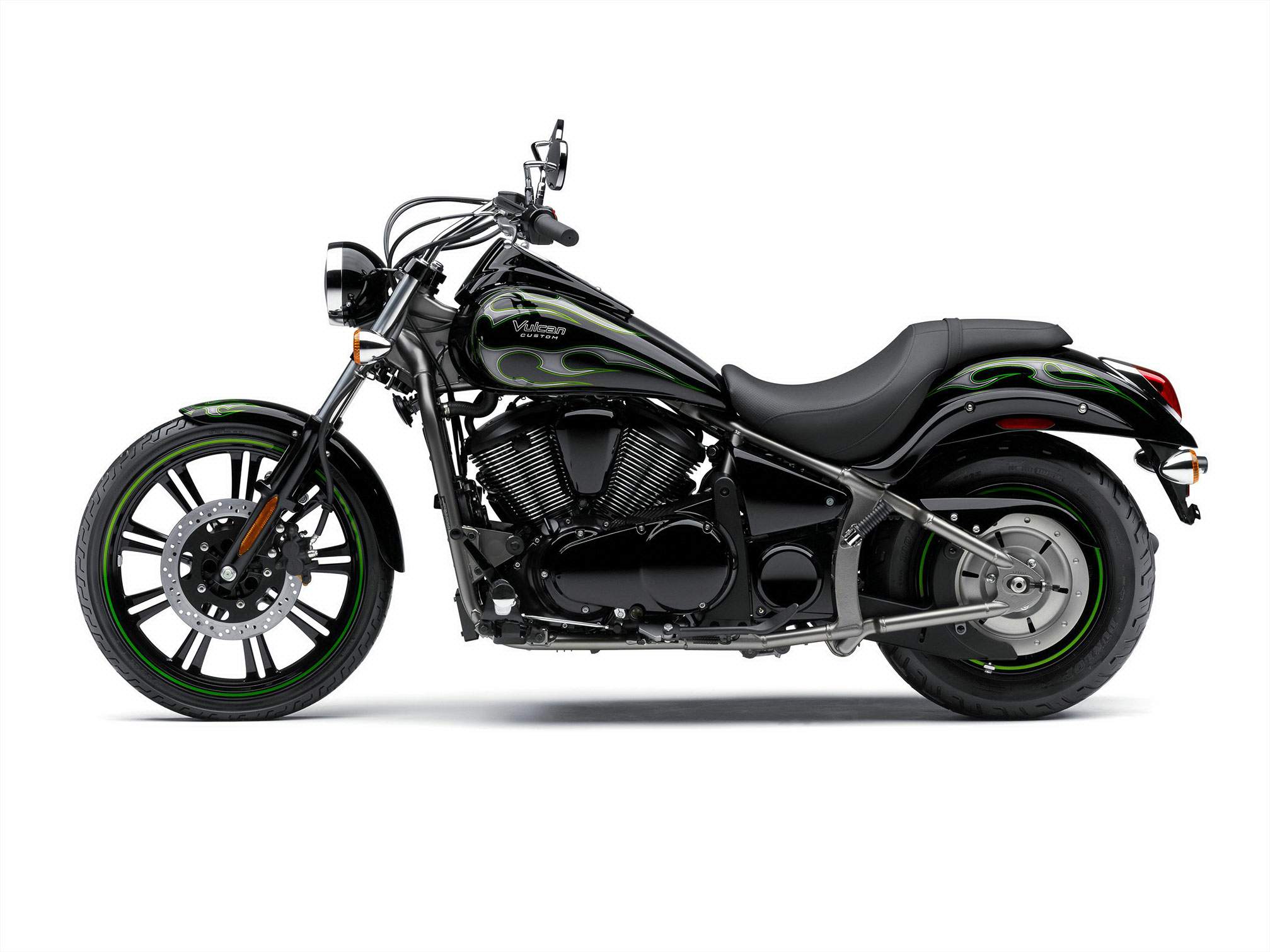

VN 900 Vulcan Custom |
| Years: |
2015-16 |
|
Engine:
|
Four stroke, V-twin, SOHC, 4 valves per cylinder
|
|
Capacity:
|
903 cc / 49 cu-in
|
|
Bore x Stroke:
|
88.0 x 74.2 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
9.5:1
|
|
Induction:
|
2x 34mm ø Fuel injection with dual throttles
|
|
Ignition:
|
Digital
|
|
Starting:
|
Electric
|
|
Max Power:
|
37 kW / 50 hp @ 5700 rpm
|
|
Max Torque:
|
78 Nm / 8.0 kg-fm @ 3700 rpm
|
|
Clutch:
|
Wet multi-disc, manual
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Belt
|
|
Frame:
|
Double-cradle, steel
|
|
Front Suspension:
|
41mm telescopic fork with 7-way preload
|
|
Front Wheel Travel:
|
150 mm / 5.9 in
|
|
Rear Suspension:
|
Uni-Trak with 7-way adjustable preload
|
|
Rear Wheel Travel:
|
103 mm / 4.1 in
|
|
Front Brakes:
|
Single 300mm disc
|
|
Rear Brakes:
|
Single 270mm disc
|
|
Front Tyre:
|
80/90 -21
|
|
Rear Tyre:
|
180/70 -15
|
|
Dimensions:
|
Length 2405 mm / 94.7 ub Width 894 mm / 35.2 in Heigh 1120 mm / 44.1 in
|
|
Wheelbase:
|
1646 mm / 64.8 in
|
|
Seat Height:
|
685 mm / 27.0 in
|
|
Wet Weight:
|
277 kg / 610.8 lbs
|
|
Fuel Capacity:
|
20 Litres / 5.3 US gal
|
