Kawasaki VN 1600 Classic FI (2003-05) technical specifications

Kawasaki VN 1600 Classic FI technical specifications

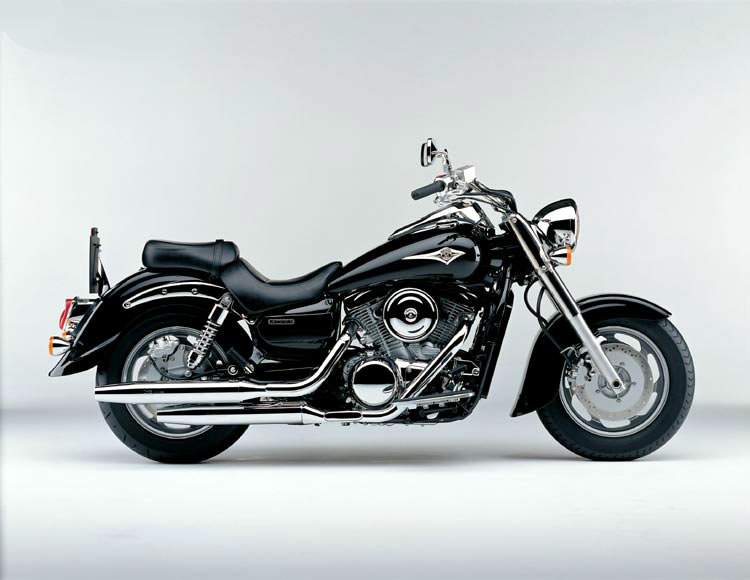

Kawasaki VN 1600 Classic FI is produced in 2003-05. Engine is Four stroke, V-Twin, SOHC, 4 valves per cylinder, displacement 1552 cc / 94.7 cu-in , produces power 65.7 hp / 48 kW @ 4700 rpm and 127 Nm / 93.7 lb-ft @ 2700 rpm. Kawasaki VN 1600 Classic FI weighs 307 kg / 676.8 lbs. Kawasaki VN 1600 Classic FI has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: VN 1600 Classic FI
Years: 2003-05
Engine: Four stroke, V-Twin, SOHC, 4 valves per cylinder
Capacity: 1552 cc / 94.7 cu-in
Bore x Stroke: 102 x 95 mm
Cooling System: Liquid cooled
Compression Ratio: 9.0:1
Induction: Electronic fuel injection, 2 x 40mm throttle bodies
Ignition: Electronic
Starting: Electric
Max Power: 65.7 hp / 48 kW @ 4700 rpm
Max Torque: 127 Nm / 93.7 lb-ft @ 2700 rpm
Transmission: 5 Speed
Final Drive: Shaft
Front Suspension: 43mm inverted forks
Front Wheel Travel: 150 mm / 5.9 in
Rear Suspension: Swingarm with dual air-assisted shocks, adjustable for rebound and preload
Rear Wheel Travel: 94 mm / 3.7 in
Front Brakes: 2x 320mm discs 6 piston calipers
Rear Brakes: Single 300mm disc 2 piston caliper
Front Tyre: 130/90 x 16
Rear Tyre: 170/70 x 16
Rake: 32.0°
Dimensions: Height 1130 mm / 44.5 in Length 2504 mm / 98.6 in Width 1039 mm / 40.9 in
Wheelbase: 1680 mm / 66.1 in
Seat Height: 680 mm / 26.8 in
Ground Clearance: 130 mm / 5.1 in
Dry Weight: 307 kg / 676.8 lbs
Fuel Capacity: 20 Litres / 5.2 US gal
