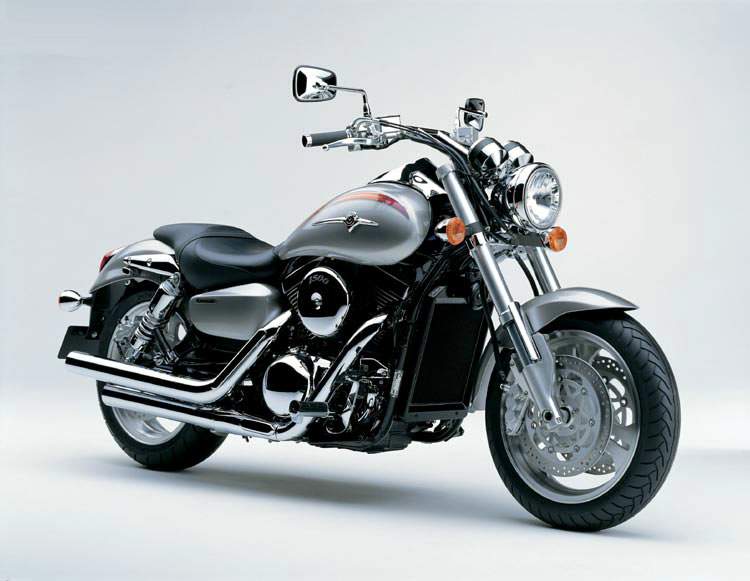

Kawasaki VN 1500 Vulcan Nomad FI (2002-04) technical specifications
Kawasaki VN 1500 Vulcan Nomad FI is produced in 2002-04. Engine is Four stroke, 50° V-Twin, SOHC, 4 valves per cylinder, displacement 1470 cc / 89.7 cu-in , produces power 64 hp / 46.7 kW @ 4700 rpm and 112 Nm / 82.6 lb-ft @ 3000 rpm. Kawasaki VN 1500 Vulcan Nomad FI weighs 337.0 kg / 739 lbs. Kawasaki VN 1500 Vulcan Nomad FI has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | VN 1500 Vulcan Nomad FI |
| Years: | 2002-04 |
| Engine: | Four stroke, 50° V-Twin, SOHC, 4 valves per cylinder |
| Capacity: | 1470 cc / 89.7 cu-in |
| Bore x Stroke: | 102 x 90 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 9.0:1 |
| Induction: | Digital Fuel Injection with dual 36mm throttle bodies |
| Ignition: | Digital |
| Max Power: | 64 hp / 46.7 kW @ 4700 rpm |
| Max Torque: | 112 Nm / 82.6 lb-ft @ 3000 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Shaft |
| Frame: | High-tensile steel, double cradle |
| Front Suspension: | 41mm cartridge fork |
| Front Wheel Travel: | 150 mm / 5.9 in |
| Rear Suspension: | Dual air assisted shock absorbers with 4-way rebound damping adjustment |
| Rear Wheel Travel: | 100 mm / 3.9 in |
| Front Brakes: | 2x 320mm discs 6 piston calipers |
| Rear Brakes: | Single 270mm disc 2 piston caliper |
| Front Tyre: | 150/80R-16 |
| Rear Tyre: | 150/80R-16 |
| Rake: | 32.0° |
| Trail: | 177 mm / 6.9 in |
| Wheelbase: | 1661 mm / 65.4 in |
| Seat Height: | 718 mm / 28.3 in |
| Dry Weight: | 337.0 kg / 739 lbs |
| Fuel Capacity: | 18.9 Litres / 5.0 US gal |
