Technical specifications
|
| Model: |

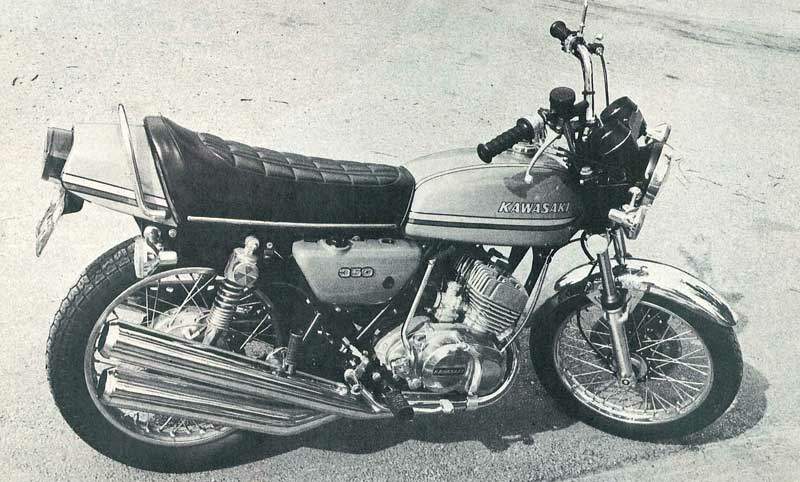

S2 350SS MKII |
| Years: |
1973-74 |
|
Engine:
|
Two stroke, transverse three cylinder
|
|
Capacity:
|
346 cc / 21 cu-in
|
|
Cooling System:
|
Air cooled
|
|
Bore x Stroke:
|
53 x 52.3 mm
|
|
Compression Ratio:
|
7,3:1
|
|
Induction:
|
3x Mikuni VM24SC, Ø 24 mm carburetors
|
|
Ignition:
|
Battery and coil
|
|
Starting:
|
Kick
|
|
Max Power:
|
45 hp / 33.5 kW @ 8000 rpm
|
|
Max Torque:
|
30.7 lb-ft 41.6 Nm @ 7000 rpm
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Double cradle tubular
|
|
Front Suspension:
|
Telescopic Hydraulic forks
|
|
Rear Suspension:
|
Dual shocks, Swing arm
|
|
Front Brakes:
|
180mm Drum
|
|
Rear Brakes:
|
180mm Drum
|
|
Front Tyre:
|
3.00 -18
|
|
Rear Tyre:
|
3.50 -18
|
|
Trail:
|
109 mm / 4.3 in
|
|
Dimensions:
|
Length 2010 mm / 79 in Width 1095 mm / 43.1 in
|
|
Wheelbase:
|
1330 mm / 52 in
|
|
Seat Height:
|
800 mm / 31 in
|
|
Dry Weight:
|
151 kg / 332.8lbs
|
|
Fuel Capacity:
|
14 Litres / 3.7 US gal
|
