Kawasaki Ninja H2 Carbon Limited Edition (2019) technical specifications

Kawasaki Ninja H2 Carbon Limited Edition is produced in 2019. Engine is Four Stroke, transverse four cylinder, DOHC, 16 valve, Supercharger Centrifugal, scroll-type, displacement 998 cc / 60.9 cub in , produces power 228 hp / 166.4 kW @ 11500 rpm and 141.7 Nm / 104.5 lb-ft @ 11000 rpm. Kawasaki Ninja H2 Carbon Limited Edition wet weight is 216 kg / 476.3 lb. Kawasaki Ninja H2 Carbon Limited Edition has 7 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Ninja H2 Carbon Limited Edition
Years:	2019
Production:	100 Units
Engine:	Four Stroke, transverse four cylinder, DOHC, 16 valve, Supercharger Centrifugal, scroll-type
Capacity:	998 cc / 60.9 cub in
Bore x Stroke:	76 x 55 mm
Cooling System:	Liquid cooled
Compression Ratio:	8.3:1
Lubrication:	Forced, wet sump with oil cooler
Exhaust:	4-1-2
Induction:	DFI® with 50mm throttle bodies (4) with dual injection
Electronic Rider Aids:	Kawasaki Cornering Management Function (KCMF), Kawasaki Traction Control (KTRC), Kawasaki Launch Control Mode (KLCM), Kawasaki Intelligent anti-lock Brake System (KIBS), Kawasaki Engine Brake Control, Kawasaki Quick Shifter (KQS) (upshift & downshift), Öhlins Electronic Steering Damper Performance
Ignition:	Digital
Starting:	Electric
Max Power:	228 hp / 166.4 kW @ 11500 rpm
Max Torque:	141.7 Nm / 104.5 lb-ft @ 11000 rpm
Clutch:	Multiplate assist and slipper clutch
Transmission:	6 Speed, with Kawasaki Quick Shifter (KQS) (upshift & downshift)
Final Drive:	Sealed chain
Frame:	Trellis, high-tensile steel, with swingarm mounting plate
Front Suspension:	43mm inverted fork with adjustable rebound and compression damping, spring preload adjustability and top-out springs
Front Wheel Travel:	119 mm / 4.7 in
Rear Suspension:	Uni-Trak®, Öhlins TTX36 gas charged shock with piggyback reservoir, 22-way compression and rebound damping and adjustability, and hand-turn spring preload adjustability and top-out spring
Rear Wheel Travel:	135 mm / 5.3 in

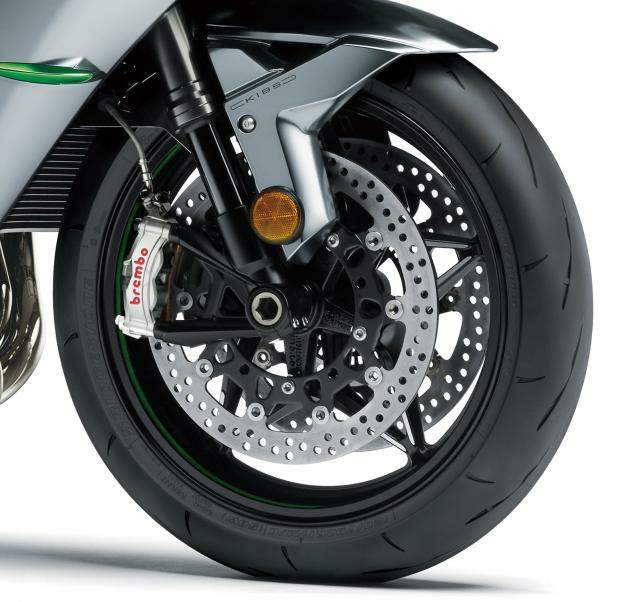

Front Brakes:	2x 330 mm semi floating discs, radial-mount, opposed 4-piston Brembo Stylema® calipers, KIBS ABS
Rear Brakes:	Single 250mm disc, opposed 2-piston calipers, KIBS ABS
Front Tyre:	120/70 ZR17 Bridgestone V01F slick
Rear Tyre:	190/65 ZR17 Bridgestone V01R slick
Rake:	24.4°
Trail:	101.6 mm / 4.0 in
Dimensions:	Length 2070 mm / 81.5 in Width 850.9 mm / 33.5 in Height 1160.8 mm / 45.7 in
Wheelbase:	1450 mm / 57.1 in
Ground Clearance:	130 mm / 5.1 in
Seat Height:	830 mm / 32.7 in
Wet Weight:	216 kg / 476.3 lb
Fuel Capacity:	17 Litres / 4.5 US gal
