Kawasaki Ninja 300 (2015) technical specifications

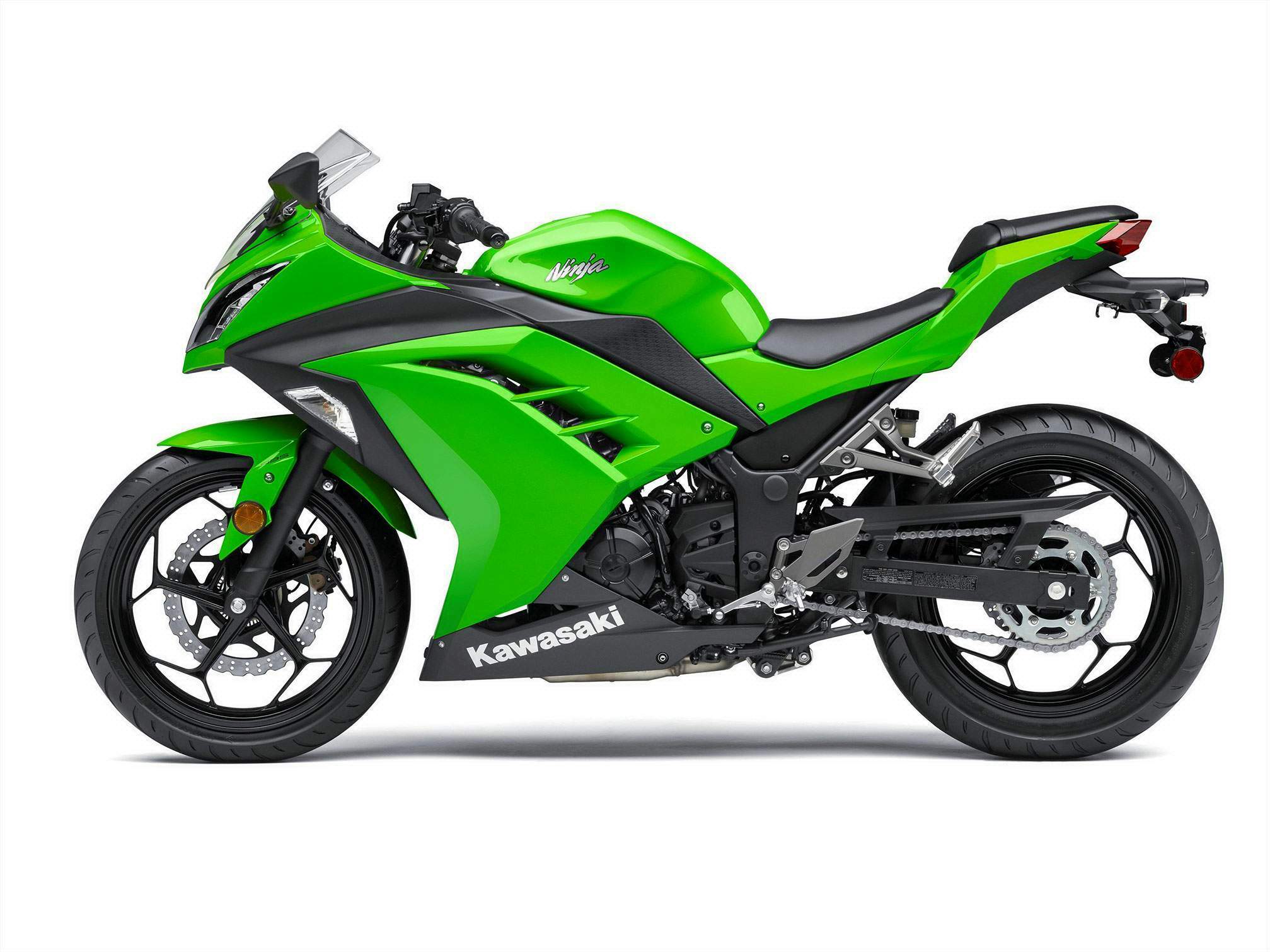

Kawasaki Ninja 300 technical specifications

Kawasaki Ninja 300 is produced in 2015. Engine is Four stroke . parallel twin, DOHC, 4 valves per cylinder, displacement 296 cc / 18.0 cu-in , produces power 29.0 kW / 39 hp @ 11000 rpm and 27.0 Nm / 2.8 kg-fm @ 10000 rpm. Kawasaki Ninja 300 wet weight is 172 kg / 379.1 lbs - ABS 174 kg / 383.6 lbs. Kawasaki Ninja 300 has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: Ninja 300
Years: 2015
Engine: Four stroke . parallel twin, DOHC, 4 valves per cylinder
Capacity: 296 cc / 18.0 cu-in
Bore x Stroke: 62 x 49 mm
Cooling System: Liquid cooled
Compression Ratio: 10.6:1
Lubrication: Forced lubrication, wet sump
Induction: Fuel injection: ø32 mm x 2 (Keihin), with dual throttle valves
Ignition: TCBI with Digital Advance
Starting: Electric
Max Power: 29.0 kW / 39 hp @ 11000 rpm
Max Torque: 27.0 Nm / 2.8 kg-fm @ 10000 rpm
Clutch: Wet multi-disc, manual
Transmission: 6 Speed
Final Drive: Chain
Primary Reduction Ratio: 3.087 (71/23)
Gear Ratio: 1st 2.714 (38/14) 2nd 1.789 (34/19) 3rd 1.409 (31/22) 4th 1.160 (29/25) 5th 1.000 (27/27) 6th 0.893 (25/28)
Final Reduction Ratio: 3.000 (42/14)
Frame: Tube diamond, steel
Front Suspension: 37 mm Telescopic fork,
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Bottom-Link Uni-Trak with gas-charged shock and 5-way adjustable preload,
Rear Wheel Travel: 132 mm / 5.1 in
Front Brakes: Single 290 mm petal disc Single balanced actuation dual-piston
Rear Brakes: Single 220 mm petal disc Caliper: Dual-piston
Front Tyre: 110/70-17 M/C 54S
Rear Tyre: 140/70-17 M/C 66S
Rake: 27°
Trail: 93 mm / 3.6 in
Dimensions: Length 2015 mm / 79.3 in Width 715 mm / 29.1 in Height 1110 mm / 43.7 in
Wheelbase: 1405 mm / 55.3 in
Seat Height: 785 mm / 30.8 in
Ground Clearance: 140 mm / 5.5 in
Wet Weight: 172 kg / 379.1 lbs - ABS 174 kg / 383.6 lbs
Fuel Capacity: 17 Litres / 3.8 US gal
