Technical specifications
|

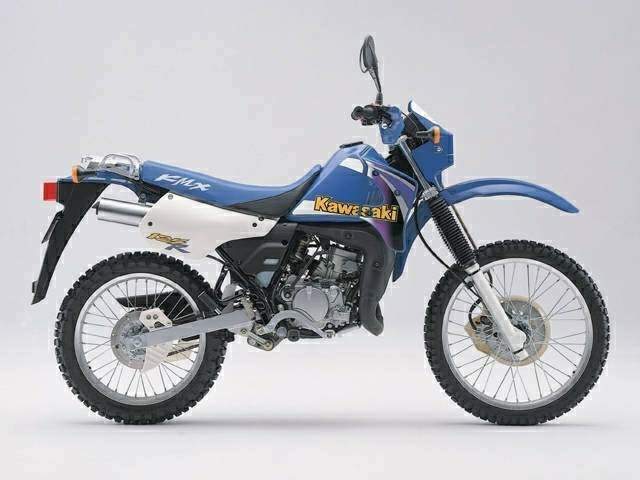

Model: |
KMX 125 |
Years: |
2002- |
Engine:
|
Two stroke, single cylinder
|
Capacity:
|
124 cc / 7.6 cu-in
|
Bore x Stroke:
|
54 х 54.4 mm
|
Cooling System:
|
Liquid cooled
|
Compression Ratio:
|
7.8:1
|
Induction:
|
Carburetor
|
Ignition:
|
CDI
|
Starting:
|
kcik
|
Max Power:
|
22 hp / 16.4 kW @ 9500 rpm
|
Max Torque:
|
1.7 kgf-m / 12.2 lb-ft @ 9000 rpm
|
Transmission:
|
6 Speed
|
Final Drive:
|
Chain
|
Front Suspension:
|
Telescopic forks
|
Front Wheel Travel:
|
230 mm / 9.1 in
|
Rear Suspension:
|
Swing arm
|
Rear Wheel Travel:
|
230 mm / 9.1 in
|
Front Brakes:
|
Single 230mm disc
|
Rear Brakes:
|
Single 210mm disc
|
Front Tyre:
|
2.75-21
|
Rear Tyre:
|
4.10-18
|
Wheelbase:
|
1375 mm / 54.1 in
|
Seat Height:
|
865 mm / 34.1 in
|
Dry-Weight:
|
96 kg / 211.6 lbs
|
Fuel Capacity:
|
9.3 Litres / 2.4 US gal
|
