Kawasaki KLR 650 New Edition (2014) technical specifications

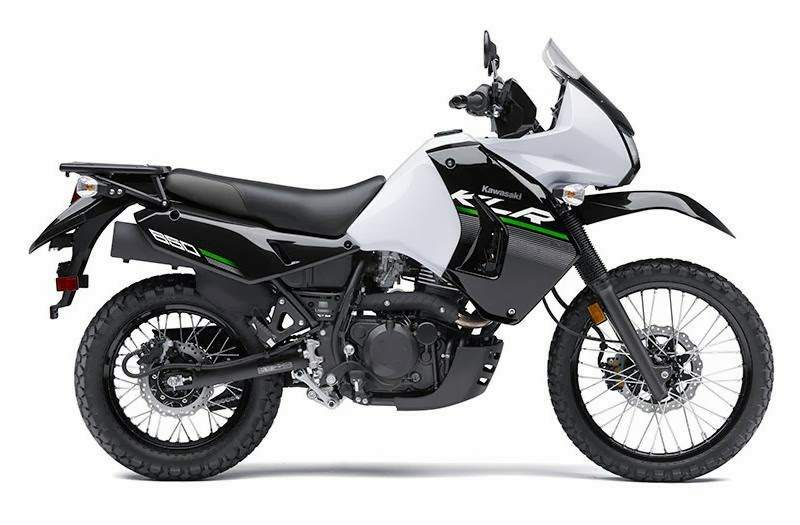

Kawasaki KLR 650 New Edition is produced in 2014. Engine is Four stroke, single cylinder, DOHC, 4 valves per cylinder, displacement 651 cc / 39.7 cu-in , produces power 42.1 hp / 31 kW @ 7000 rpm and 47 Nm / 4.7 kgf-m @ 5000 rpm. Kawasaki KLR 650 New Edition wet weight is 194 kg / 432 lbs. Kawasaki KLR 650 New Edition has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	KLR 650 New Edition
Years:	2014
Engine:	Four stroke, single cylinder, DOHC, 4 valves per cylinder
Capacity:	651 cc / 39.7 cu-in
Bore x Stroke:	100 x 83 mm.
Cooling System:	Liquid cooled
Compression Ratio:	9.8:1
Induction:	Keihin CVK40
Lubrication:	Forced lubrication (wet sump)
Engine Oil:	Semi-Synthetic, 10W/40
Spark Plug:	NGK, DPR 8EA/9
Ignition:	Transistorized
Starting:	Electric
Max Power:	42.1 hp / 31 kW @ 7000 rpm
Max Torque:	47 Nm / 4.7 kgf-m @ 5000 rpm
Clutch:	Wet multi-disc, cable operation
Transmission:	5 Speed
Final Drive:	Sealed Chain
Primary Reduction Ratio:	2.272 / 75/33
Gear Ratio:	1st 2.266 (34/15) 2nd 1.444 (26/18) 3rd 1.136 (25/22) 4th 0.954 (21/22) 5th 0.791 (19/24)
Final Reduction Ratio:	2.867 (43/15)
Frame:	Semi-double Cradle Made of high-tech, round-section, high-tensile steel
Front Suspension:	41mm Air-adjustable forks,
Front Wheel Travel:	200 mm / 7.8 in
Rear Suspension:	UNI-TRAK® linkage, 5-way preload shock absorber with 4way rebound damping.
Rear Wheel Travel:	185 mm / 7.2 in
Front Brakes:	Single 280mm disc 2 piston caliper
Rear Brakes:	Single 203mm disc 1 piston caliper
Front Tyre:	90/90 -21
Rear Tyre:	130/80 -17
Rake:	28.0°
Trail:	112 mm / 4.4 in
Dimensions:	length 2295 mm / 90.4 in Width 960 mm / 37.8 in Height 1350 mm / 53.1 in
Wheelbase:	1480 mm / 58.3 in
Ground Clearance:	210 mm / 8.3 in
Seat Height:	889 mm / 35 in
Wet Weight:	194 kg / 432 lbs
Fuel Capacity:	23 Litres / 5.8 US gal.
