Technical specifications
|

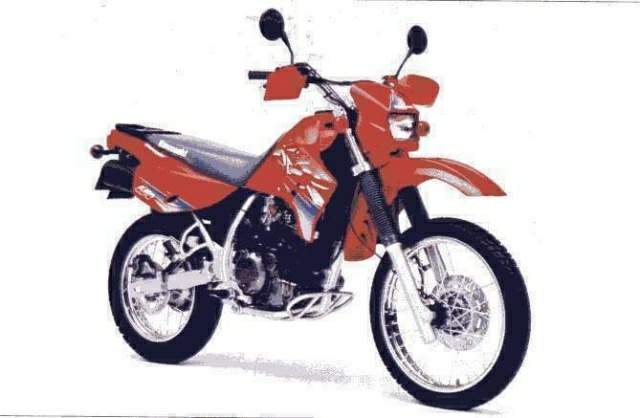

| Model: |
KLR 650 |
| Years: |
1995-96 |
|
Engine:
|
Four stroke, single cylinder, DOHC, 4 valve
|
|
Capacity:
|
651 cc / 39.7 cu-in
|
|
Bore x Stroke:
|
100 х 83 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
9.5:1
|
|
Induction:
|
Keihin CVK40 carburetor
|
|
Ignition:
|
Digital TCBI
|
|
Starting:
|
Electric
|
|
Max Power:
|
48 hp / 35.0 kW @ 6500 rpm
|
|
Max Power Rear Tyre:
|
41.7 hp @ 7100 rpm
|
|
Max Torque:
|
5.3 kgf-m / 38.3 lb-ft @ 5500 rpm
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Chain
|
|
Gear Ratio:
|
1st 2.266 (34/15) 2nd 1.444 (26/18) 3rd 1.136 (25/22) 4th 0.954 (21/22) 5th 0.791 (19/24)
|
|
Frame:
|
Single downtubes, fully cradle frame box section aluminium swingarm
|
|
Front Suspension:
|
38mm Air assisted Kayaba forks
|
|
Front Wheel Travel:
|
230 mm / 9.0 in
|
|
Rear Suspension:
|
Single Kayaba shock
|
|
Rear Wheel Travel:
|
230 mm / 9.0 in
|
|
Front Brakes:
|
Single 230mm disc
|
|
Rear Brakes:
|
Single 204mm disc
|
|
Front Tyre:
|
90/90 -21
|
|
Rear Tyre:
|
130/80-17
|
|
Rake:
|
28°
|
|
Trail:
|
111 mm / 4.4 in
|
|
Seat Height:
|
889 mm / 35.0 in
|
|
Dry Weight:
|
153 kg / 337.3 lbs
|
|
Wet Weight:
|
189 kg / 416 lbs
|
|
Fuel Capacity:
|
23 Litres / 6.0 US gal
|
|
Consumption Average:
|
18.1 km/lit
|
|
Braking 60 - 0 / 100 - 0:
|
13.7 m / 40.0 m
|
|
Standing ¼ Mile:
|
14.2 sec / 139.9 km/h
|
|
Top Speed:
|
163.5 km/h / 101.6 mph
|
