Kawasaki KLR 650 (1987-88) technical specifications

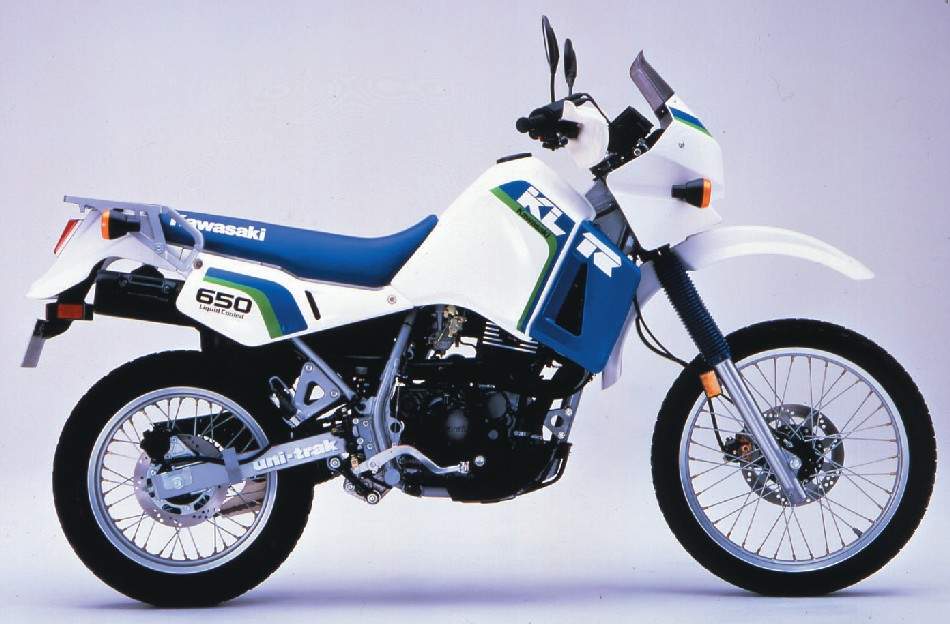

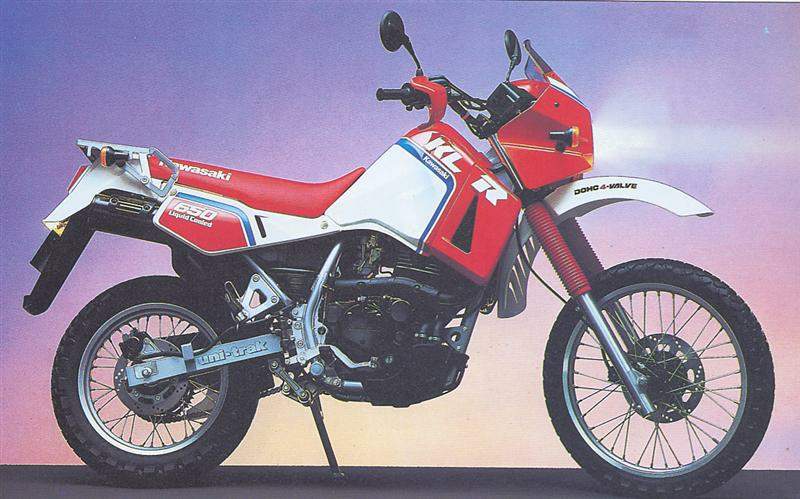

Kawasaki KLR 650 is produced in 1987-88. Engine is Four stroke, single cylinder, DOHC, 4 valve, displacement 651 cc / 39.7 cu-in , produces power 41.7 hp @ 7100 rpm and 5.3 kgf-m / 38.3 lb-ft @ 5500 rpm. Kawasaki KLR 650 top speed is 163.5 km/h. Kawasaki KLR 650 weighs 153 kg / 337.3 lbs. Kawasaki KLR 650 has 2 photos.

Technical specifications

+ Add to 'Compare list'

Model:	KLR 650
Years:	1987-88
Engine:	Four stroke, single cylinder, DOHC, 4 valve
Capacity:	651 cc / 39.7 cu-in
Bore x Stroke:	100 х 83 mm
Cooling System:	Liquid cooled
Compression Ratio:	9.5:1
Induction:	Keihin CVK40 carburetor
Ignition:	Digital TCBI
Starting:	Electric
Max Power:	41.7 hp @ 7100 rpm
Max Torque:	5.3 kgf-m / 38.3 lb-ft @ 5500 rpm
Transmission:	5 Speed
Final Drive:	Chain
Gear Ratio:	1st 2.266 (34/15) 2nd 1.444 (26/18) 3rd 1.136 (25/22) 4th 0.954 (21/22) 5th 0.791 (19/24)
Frame:	Single downtubes, fully cradle frame box section aluminium swingarm
Front Suspension:	38mm Air assisted Kayaba forks
Front Wheel Travel:	230 mm / 9.0 in
Rear Suspension:	Single Kayaba shock
Rear Wheel Travel:	230 mm / 9.0 in
Front Brakes:	Single 230mm disc
Rear Brakes:	Single 204mm disc
Front Tyre:	90/90 -21
Rear Tyre:	130/80-17
Rake:	28°
Trail:	111 mm / 4.4 in
Seat Height:	889 mm / 35.0 in
Dry Weight:	153 kg / 337.3 lbs
Wet Weight:	189 kg / 416 lbs
Fuel Capacity:	23 Litres / 6.0 US gal
Consumption average:	18.1 km/lit
Braking 60 - 0 / 100 - 0:	13.7 m / 40.0 m
Standing ¼ Mile:	14.2 sec / 139.9 km/h
Top Speed:	163.5 km/h
