Kawasaki KLR 250 (1993-96) technical specifications

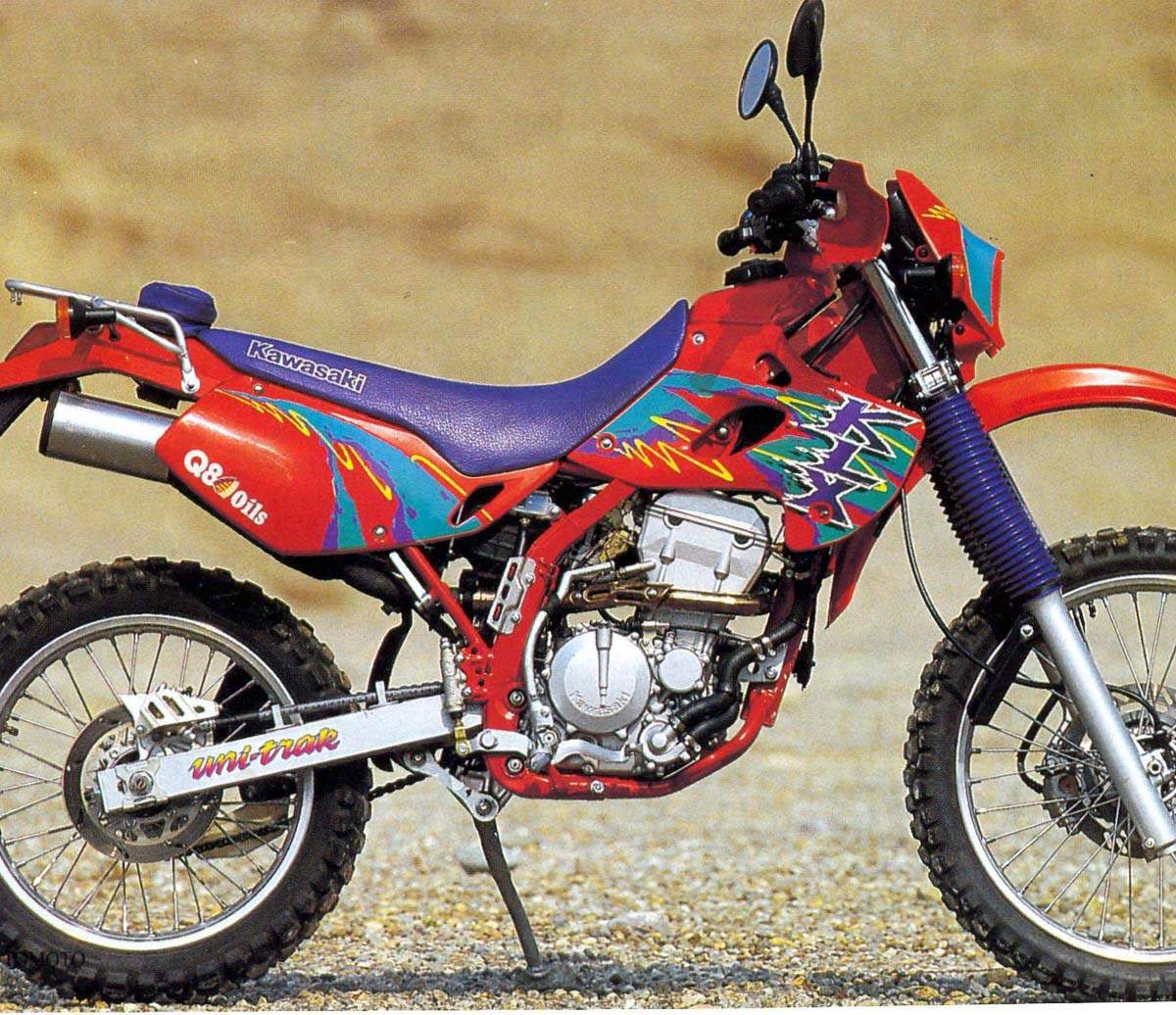

Kawasaki KLR 250 is produced in 1993-96. Engine is Four stroke single cylinder, DOHC, 4 valve, displacement 249 cc / 15.2 cu-in , produces power 30 hp / 22.3 kW @ 8500 rpm and 2.6 kgf-m / 18.8 lb-ft @ 7500 rpm. Kawasaki KLR 250 weighs 117 kg / 258 lbs. Kawasaki KLR 250 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | KLR 250 |
| Years: | 1993-96 |
| Engine: | Four stroke single cylinder, DOHC, 4 valve |
| Capacity: | 249 cc / 15.2 cu-in |
| Bore x Stroke: | 74 х 58 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 11.0:1 |
| Induction: | Keihin CVK34 carburetor |
| Ignition: | CDI |
| Spark Plug: | NGK DP9EA-9 or ND X27EP-U9 |
| Starting: | Kick |
| Max Power: | 30 hp / 22.3 kW @ 8500 rpm |
| Max Power Rear Tyre: | 23.5 hp / 17.5 Kw @ 8200 rpm |
| Max Torque: | 2.6 kgf-m / 18.8 lb-ft @ 7500 rpm |
| Transmission: | 6 Speed |
| Final Drive: | Chain |
| Gear Ratio: | 1st 2.000:1 2nd 2.000:1 3rd 1.500:1 4th 1.250:1 5th 1.050:1 6th 0.904:1 |
| Front Suspension: | Air-adjustable leading-axle fork |
| Front Wheel Travel: | 231 mm / 9.1 in |
| Rear Suspension: | Uni-Trak single shock with adjustable preload and 4-way rebound damping |
| Rear Wheel Travel: | 231 mm / 9.1 in |
| Front Brakes: | Single 250mm disc 2 piston caliper |
| Rear Brakes: | Drum |
| Front Tyre: | 3.00 -21 |
| Rear Tyre: | 4.60 -17 |
| Rake: | 28.5° |
| Trail: | 117 mm // 4.6 in |
| Wheelbase: | 1415mm / 55.71 in |
| Seat Height: | 856mm / 33.7 in |
| Dry Weight: | 117 kg / 258 lbs |
| Fuel Capacity: | 11 Litres / 2.9 US gal |
| Related Link: | Kawasaki KLR 250 |
| Road Test: | Enduro Test 1994 Tuttomoto |
