Kawasaki KLR 250 (1991-92) technical specifications

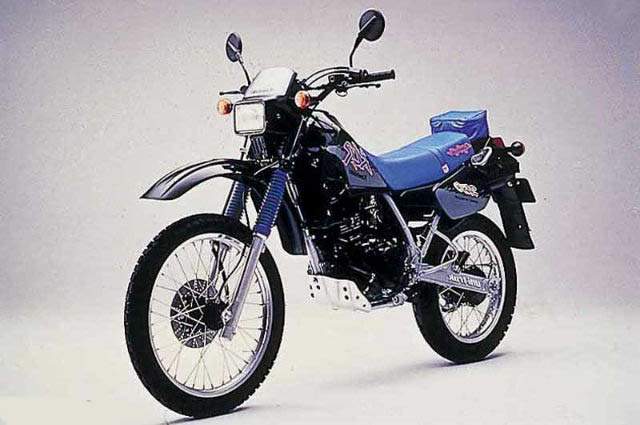

Kawasaki KLR 250 is produced in 1991-92. Engine is Four stroke single cylinder, DOHC, 4 valve, displacement 249 cc / 15.2 cu-in , produces power 28 hp / 20.8 kW @ 9000 rpm and 2.3 kgf-m / 16.6 lb-ft @ 7500 rpm. Kawasaki KLR 250 weighs 117 kg / 258 lbs. Kawasaki KLR 250 has 2 photos.

Technical specifications

+ Add to 'Compare list'

Model:	KLR 250
Years:	1991-92
Engine:	Four stroke single cylinder, DOHC, 4 valve
Capacity:	249 cc / 15.2 cu-in
Bore x Stroke:	74 х 58 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.0:1
Induction:	Keihin CVK34 carburetor
Main jet. / Jet needle.:	120 / N31B
Ignition:	CDI
Spark Plug:	NGK DP9EA-9 or ND X27EP-U9
Starting:	Kick
Max Power:	28 hp / 20.8 kW @ 9000 rpm
Max Torque:	2.3 kgf-m / 16.6 lb-ft @ 7500 rpm
Transmission:	6 Speed
Final Drive:	Chain
Gear Ratio:	1st 2.000:1 2nd 2.000:1 3rd 1.500:1 4th 1.250:1 5th 1.050:1 6th 0.904:1
Front Suspension:	Air-adjustable leading-axle fork
Front Wheel Travel:	231 mm / 9.1 in
Rear Suspension:	Uni-Trak single shock with adjustable preload and 4-way rebound damping
Rear Wheel Travel:	231 mm / 9.1 in
Front Brakes:	Single 250mm disc 2 piston caliper
Rear Brakes:	Drum
Front Tyre:	3.00 - 21
Rear Tyre:	4.60 - 17
Rake:	28.5°
Trail:	117 mm // 4.6 in
Wheelbase:	1415mm / 55.71 in
Seat Height:	856mm / 33.7 in
Dry Weight:	117 kg / 258 lbs
Fuel Capacity:	11 Litres / 2.9 US gal
