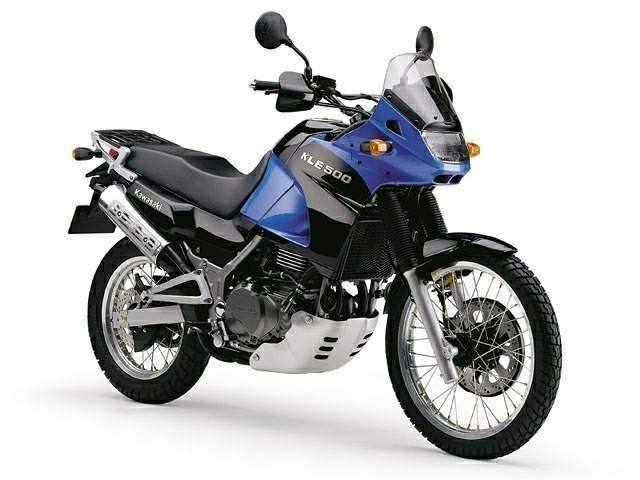

Technical specifications
|
| Model: |
KLE 500 |
| Years: |
2003-04 |
|
Engine:
|
Four stroke, parallel twin Cylinder, DOHC, 4 Valves per cylinder
|
|
Capacity:
|
498 cc / 30.4 cu-in
|
|
Bore x Stroke:
|
74 x 58 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
10.8:1
|
|
Induction:
|
2x 34mm Keihin carburetors
|
|
Ignition:
|
CDI
|
|
Starting:
|
Electric
|
|
Max Power:
|
44.8 hp / 33 kW @ 8500 rpm
|
|
Max Torque:
|
41 Nm / 30.2 lb-ft @ 6500r pm
|
|
Transmission:
|
6 Speed
|
|
Final lDrive:
|
Chain
|
|
Front Suspension:
|
41mm Telescopic forks air assisted
|
|
Front Wheel Travel:
|
220 mm / 8.6 in
|
|
Rear Suspension:
|
Steal awing arm with preload adjustment
|
|
Rear Wheel Travel:
|
220 mm / 8.6 in
|
|
Front Brakes:
|
Single 300mm disc 2 piston caliper
|
|
Rear Brakes:
|
Single 230mm disc 1 piston caliper
|
|
Front Tyre:
|
90/90 VR21
|
|
Rear Tyre:
|
130/80 VR17
|
|
Seat Height:
|
850 mm / 33.5 in
|
|
Wheelbase:
|
1510 mm / 59.4 in
|
|
:
|
180 mm / 7.0 in
|
|
Dry Weight:
|
178 kg / 392 lbs
|
|
Wet Weight:
|
192 kg / 423 lbs
|
|
Fuel Capacity:
|
15 Litres / 3.9 US gal
|
|
Consumption Average:
|
18.2 km/lit
|
|
Braking 60 - 0 / 100 - 0:
|
14.0 m / 40.2 m
|
|
Standing ¼ Mile:
|
13.4 sec / 152.8 km/h
|
|
Top Speed:
|
190.7 km/h / 118.4 mph
|
