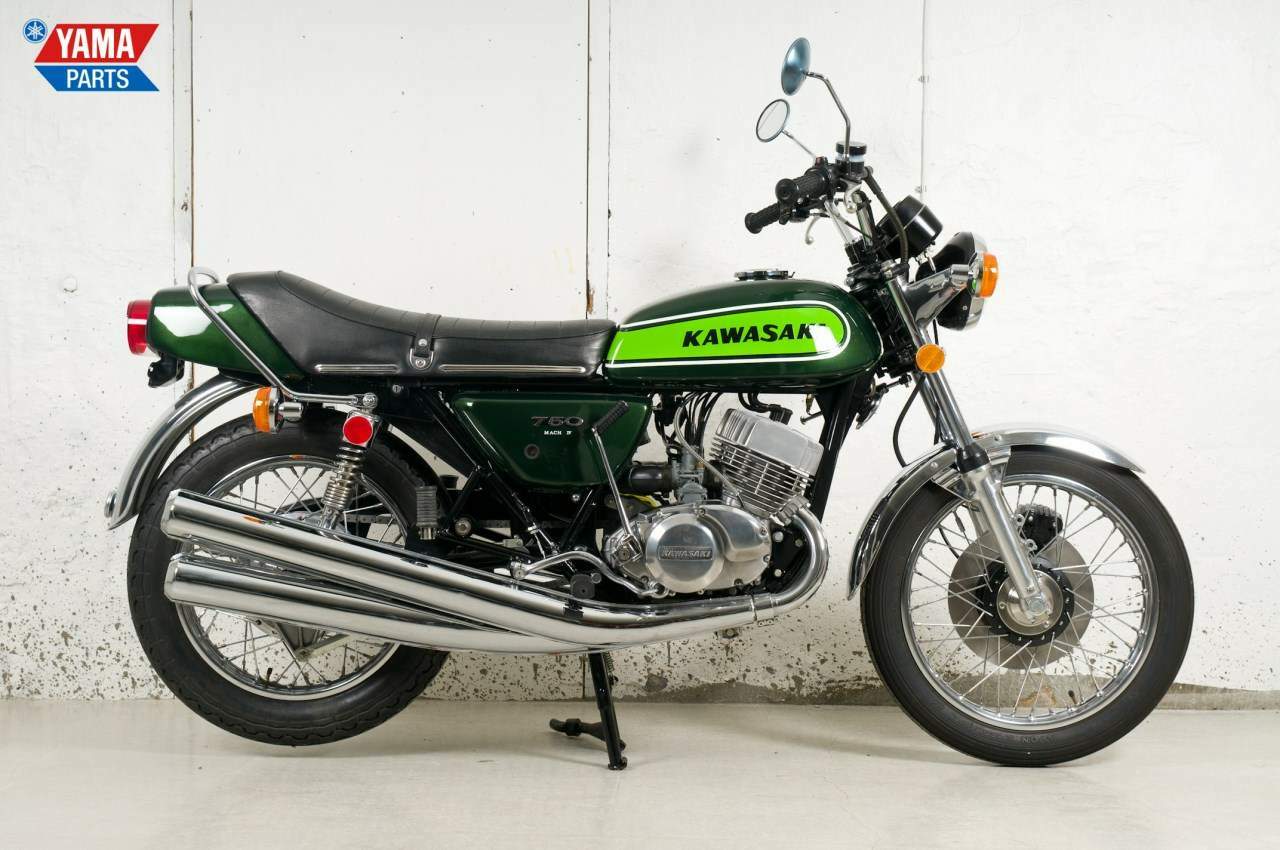

Kawasaki H2 750 Mach IV (1974) technical specifications
Kawasaki H2 750 Mach IV is produced in 1974. Engine is Two stroke, transverse three cylinder, displacement 748 cc / 45.6 cu-in , produces power 74 hp / 55.1 kW @ 6800 rpm and 77.4 Nm / 7.9 kgf-m @ 6500 rpm. Kawasaki H2 750 Mach IV top speed is 120 mph / 192 km/h. Kawasaki H2 750 Mach IV weighs 192 kg / 423.2 lbs. Kawasaki H2 750 Mach IV has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | H2 750 Mach IV |
| Years: | 1974 |
| Engine: | Two stroke, transverse three cylinder |
| Capacity: | 748 cc / 45.6 cu-in |
| Bore x Stroke: | 71 х 63 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 7.1:1 |
| Lubrication: | Oil injection |
| Induction: | 3 x 30mm Mikuni VM30SC carburetors |
| Ignition: | CDI |
| Battery: | 12V-6AH |
| Starting: | Kick |
| Max Power: | 74 hp / 55.1 kW @ 6800 rpm |
| Max Torque: | 77.4 Nm / 7.9 kgf-m @ 6500 rpm |
| Clutch: | Wet, multi-plate |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Gear Ratio: | 1st 12.75:1 2nd 8.64:1 3rd 6.53:1 4th 5.42:1 5th 4.76:1 |
| Frame: | Tubular, double cradle |
| Front Suspension: | Telescopic forks non adjustable |
| Rear Suspension: | Dual shocks preload adjustable |
| Front Brakes: | Single 295mm disc |
| Rear Brakes: | 203mm drum |
| Front Tyre: | 8.25-19 |
| Rear Tyre: | 4.00-18 |
| Wheelbase: | 1410 mm / 55.4 in |
| Seat Height: | 795 mm/ 31.25 in |
| Ground Clearance: | 183 mm / 7.2 in. |
| Dry Weight: | 192 kg / 423.2 lbs |
| Fuel Capacity: | 16.7 Litres / 4.4 US gal |
| Braking 30 mph - 0: | 33 ft |
| Braking 60 mph - 0: | 111.7 ft. |
| Acceleration 0-30 mph: | 2.9 sec. |
| Acceleration 0-60 mph: | 5.0 sec. |
| Standing ¼ Mile: | 12.3 sec / 105 mph / 168 km/h |
| Top Speed: | 120 mph / 192 km/h |
