Kawasaki GTR 1400 Concours 14 (2019-20) technical specifications

Kawasaki GTR 1400 Concours 14 technical specifications

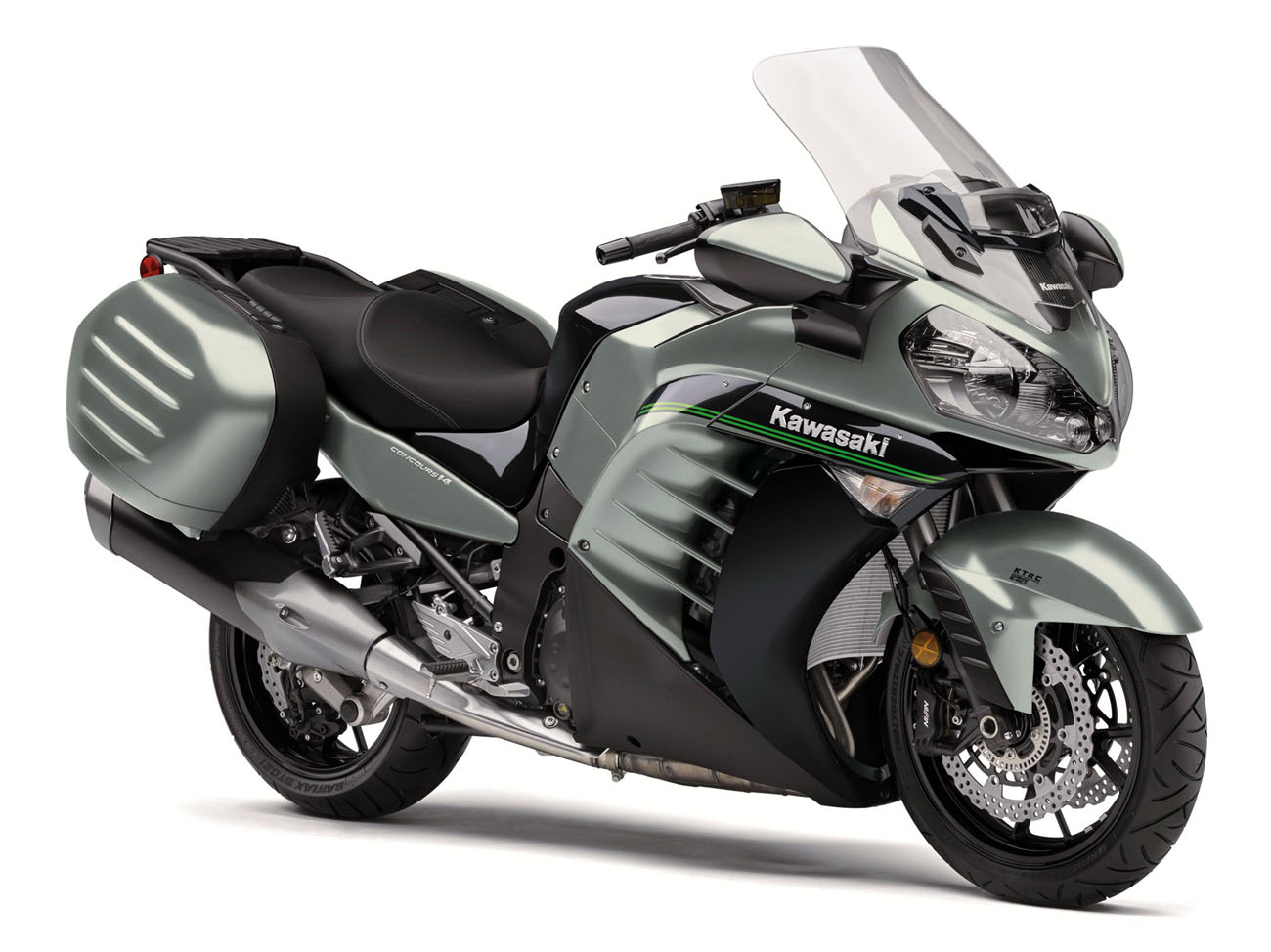

Kawasaki GTR 1400 Concours 14 is produced in 2019-20. Engine is Four stroke, transverse four cylinders, DOHC, 4 valves per cylinder, displacement 1352 cc / 82.5 cu-in , produces power 114 kW / 155 PS @ 8800 rpm and 136 Nm / 13.9 kgf.m @ 6200 rpm. Kawasaki GTR 1400 Concours 14 wet weight is 305 kg / 672 lbs (Without saddlebags). Kawasaki GTR 1400 Concours 14 has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: GTR 1400 Concours 14
Years: 2019-20
Engine: Four stroke, transverse four cylinders, DOHC, 4 valves per cylinder
Capacity: 1352 cc / 82.5 cu-in
Bore x Stroke: 84 x 61 mm
Cooling: Liquid cooled
Compression Ratio: 10.7;1
Induction: DFI® with four 40mm throttle bodies
Lubrication: Forced lubrication, wet sump
Ignition: TCBI with Digital Advance
Starting: Electric
Max Power: 114 kW / 155 PS @ 8800 rpm
Max Power Ram Air: 117.6 kW / 160 PS @ 8800 rpm
Max Torque: 136 Nm / 13.9 kgf.m @ 6200 rpm
Clutch: Wet multi-disc manual
Transmission: 6 Speed
Final Drive: Tetra-Lever shaft drive
Primary Reduction Ratio: 1.556 (84/54)
Gear Ratio: 1st 3.538 (46/13) 2nd 2.412 (41/17) 3rd 1.900 (38/20) 4th 1.545 (34/22) 5th 1.292 (31/24) 6th 1.074 (29/27)
Final Reduction Ratio: 2.036 (14/22 x 32/10)
Frame: Monocoque, aluminium
Front Suspension: 43 mm inverted fork with adjustable rebound damping and spring preload
Front Wheel Travel: 113 mm / 4.4 in
Rear Suspension: Bottom-Link Uni-Trak with gas-charged shock, Tetra-Lever
Rear Wheel Travel: 136 mm / 5.4 in
Front Brakes: 2X 310mm discs 4 piston calipers, ABS
Rear Brakes: Single 270mm disc 2 piston caliper. ABS
Front Tyre: 120/70- ZR17
Rear Tyre: 190/50 -ZR17
Rake: 26.1°
Trail: 112 mm / 4.4 in
Dimensions: Length 2230 mm / 87.8 in. Width 1000 mm / 39.4 in Height 1343 mm / 52.9 in. - 1465 mm / 55.3 in. (High position)
Wheelbase: 1520 mm / 59.8 in
Ground Clearance: 125 mm / 4.9 in
Seat Height: 815 mm / 32.1 in.
Wet Weight: 305 kg / 672 lbs (Without saddlebags)
Fuel Capacity: 22 Litres / 5.8 US gal
