Technical specifications
|
| Model: |

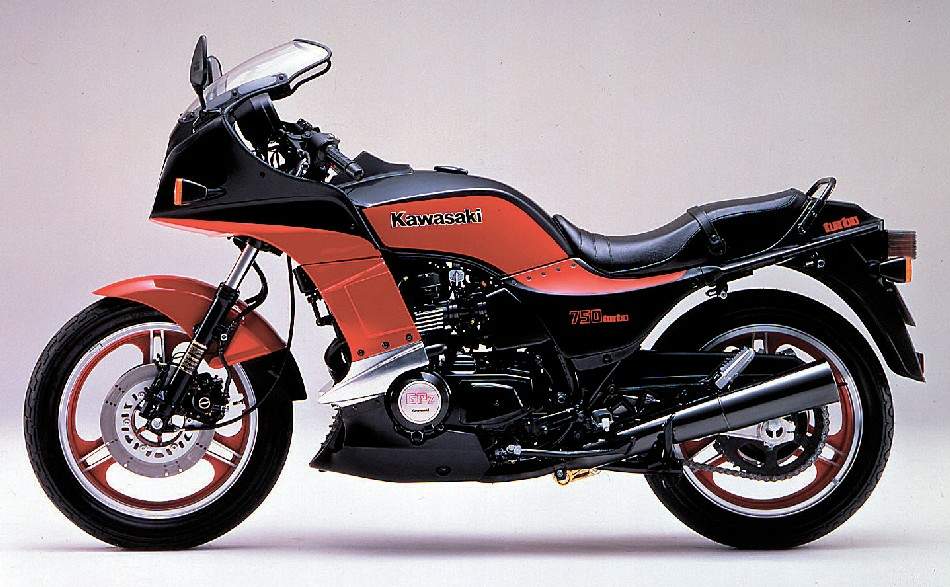

GPz 750R Ninja / ZX 750R |
| Years: |
1984 |
|
Engine:
|
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
|
|
Capacity:
|
746 cc / 45.6 cu-in
|
|
Bore x Stroke:
|
70.0 x 48.6 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
10.5:1
|
|
Lubrication:
|
Wet sump
|
|
Induction:
|
4x 34mm Mikuni carburetors
|
|
Ignition:
|
Transistorised, electronic advance
|
|
Starting:
|
Electric
|
|
Max Power:
|
92 hp / 67.2 kW @ 10000 rpm
|
|
Max Torque:
|
7.2 kg-m / 52 lb-ft @ 8500 rpm
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
Air assisted forks, 160mm wheel travel.
|
|
Rear Suspension:
|
Single shock swinging arm, 109mm wheel travel.
|
|
Front Brakes:
|
2x 270mm discs
|
|
Rear Brakes:
|
Single 256mm disc
|
|
Front Tyre:
|
120/80-16
|
|
Rear Tyre:
|
130/80-18
|
|
Wheelbase:
|
1495 mm / 58.8 in
|
|
Seat Heigth:
|
780 mm / 30.7 in
|
|
Dry Weight:
|
228 kg / 502.5 lbs
|
|
Fuel Capacity:
|
22 Litres / 5.8 US gal
|
|
Consumption Average:
|
36 mpg
|
|
Standing ¼ Mile:
|
12.4 sec / 106 mph
|
|
Top Speed:
|
218.8 km/h / 136 mph
|
