Kawasaki ER-6f (2012) technical specifications

Kawasaki ER-6f technical specifications

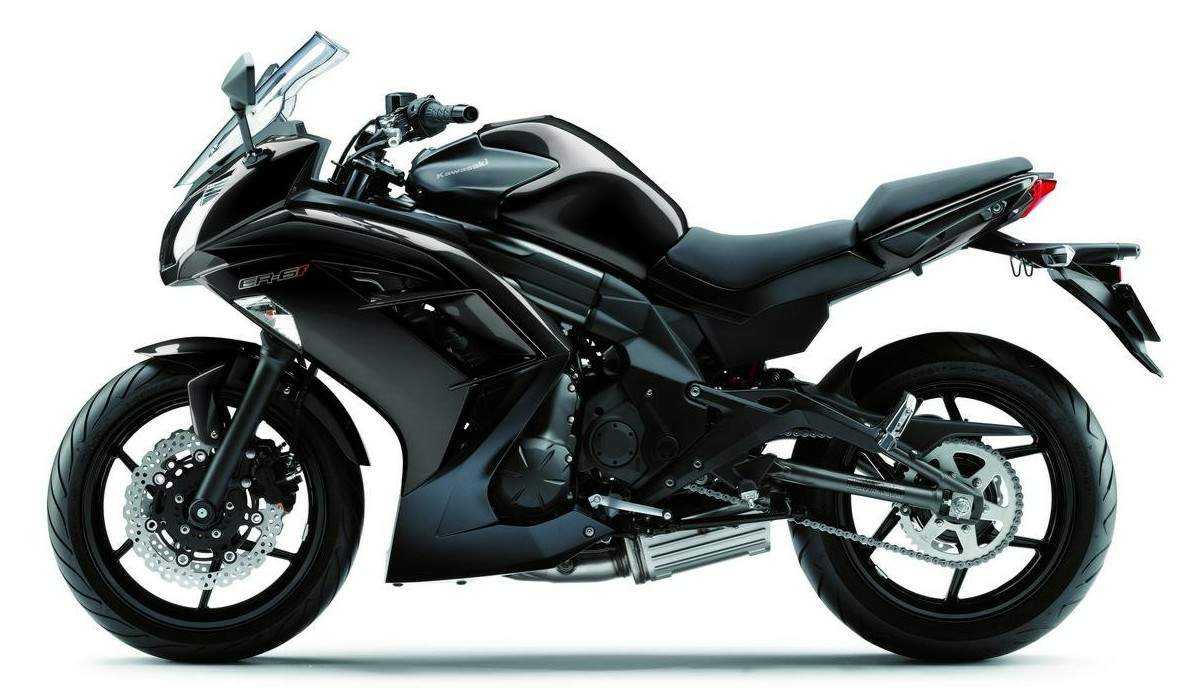

Kawasaki ER-6f is produced in 2012. Engine is Four stroke, parallel twin, DOHC, 4 valves per cylinder., displacement 649 cc / 39.6 cu-in , produces power 53 kW / 72.1 hp @ 8500 rpm and 66 Nm / 6.7 m-kg @ 7000 rpm. Kawasaki ER-6f wet weight is 209 kg / 460 lbs. Kawasaki ER-6f has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: ER-6f
Years: 2012
Engine: Four stroke, parallel twin, DOHC, 4 valves per cylinder.
Capacity: 649 cc / 39.6 cu-in
Bore x Stroke: 83 X 60mm
Cooling System: Liquid cooled,
Compression Ratio: 11.3;1
Lubrication: Wet sump
Engine Oil: Synthetic, 10-40
Induction: 2x 38mm Electronic Fuel Injection Keihin
Ignition: Digital TCBI
Spark Plug: NGK, CR9EIA-9
Starting: Electric
Max Power: 53 kW / 72.1 hp @ 8500 rpm
Max Torque: 66 Nm / 6.7 m-kg @ 7000 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 6 Speed
Gear Ratio: 1st 2.438 (39/16) 2nd 1.714 (36/21) 3rd 1.333 (32/24) 4th 1.111 (30/27) 5th 0.966 (28/29) 6th 0.852 (23/27)
Frame: Perimeter, high-tensile steel
Front Suspension: 41 mm telescopic fork
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Offset laydown single-shock with adjustable preload
Rear Wheel Travel: 130 mm / 5.1 in
Front Brakes: 2x 300mm discs 2 piston Calipers
Rear Brakes: Single 220mm disc 1 piston Caliper
Front Tyre: 120/70ZR17
Rear Tyre: 160/60ZR17
Rake: 25°
Trail: 106 mm / 4.1 in
Dimension: Length 2105 mm / 82.9 in Width 760 mm / 29.9 in Height 1210 mm / 47.6 in
Wheelbase: 1410 mm / 55.5 in
Seat Height: 805 mm / 31.7 in
Ground Clearance: 130 mm / 5.1 in
Wet Weight: 209 kg / 460 lbs
Fuel Capacity: 16 Litres / 4.2 US gal
