Indian Springfield Dark Horse 116 (2020) technical specifications

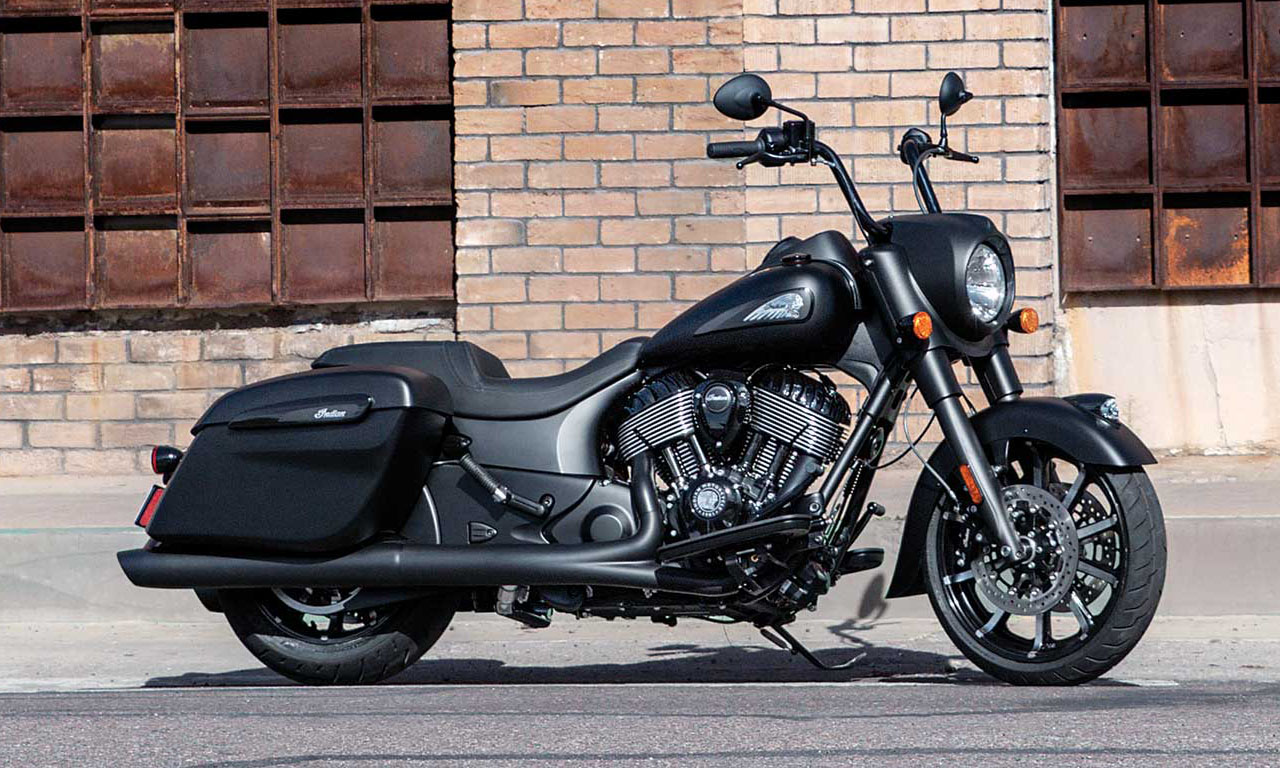

Indian Springfield Dark Horse 116 is produced in 2020. Engine is Thunder Stroke 116, 49˚ V-Twin, displacement 1890 cc / 115 cub in Indian Springfield Dark Horse 116 weighs 344 kg / 758 lbs. Indian Springfield Dark Horse 116 has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Springfield Dark Horse 116
Years:	2020
Engine:	Thunder Stroke 116, 49˚ V-Twin
Capacity:	1890 cc / 115 cub in
Bore x Stroke:	103.2 x 113mm
Compression Ratio:	11.0:1
Cooling:	Air / Oil cooled
Exhaust:	Split dual exhaust with crossover
Induction:	Electronic fuel injection, closed loop, 54 mm bore
Starting:	Electric
Max Toque:	168 Nm / 126 lb-ft @ 2900 rpm
Clutch:	Wet, multi-plate
Transmission:	6 Speed
Final Drive:	Belt, 152 tooth
Gear Ratio:	1st 9.403 : 1 2nd 6.411 : 1 3rd 4.763 : 1 4th 3.796 : 1 5th 3.243 : 1 6th 2.789 : 1
Final Drive Ratio:	2.2:1
Frame:	High tensile steel, monoshock
Front Suspension:	46mm Telescopic forks
Front Wheel Travel:	119 mm / 4.7 in
Rear Suspension:	Single shock
Rear Wheel Travel:	114 mm / 4.5 in
Front Brakes:	2x 300mm Floating rotor 4 piston calipers
Rear Brakes:	Single 300mm floating rotor 2 piston calipers
ABS:	Individual front and rear control with ABS
Front Wheel:	Cast 19″ x 3.5″ with tire pressure monitoring
Rear Wheel:	Cast 16″ x 5.0″ with tire pressure monitoring
Front Tyre:	130/60B19 61H Dunlop American Elite
Rear Tyre:	180/60R16 80H Dunlop Elite 3
Rake:	25°
Trail:	150 mm / 5.9 in
Dimensions:	Length 2522 mm / 99.3 in Width 1000 mm / 39.4 in Height 1261 mm / 49.6 in
Wheelbase:	1701 mm / 67 in
Seat Height:	660 mm / 26 in
Ground Clearance:	133 mm / 5.2 in
Dry Weight:	344 kg / 758 lbs
Wet Weight:	358 kg / 790 lbs
GVWR:	628 kg / 1385 lbs
Fuel Capacity:	20.8 Litres / 5.5 US gal
