Indian Chieftain Limited 116 (2020) technical specifications

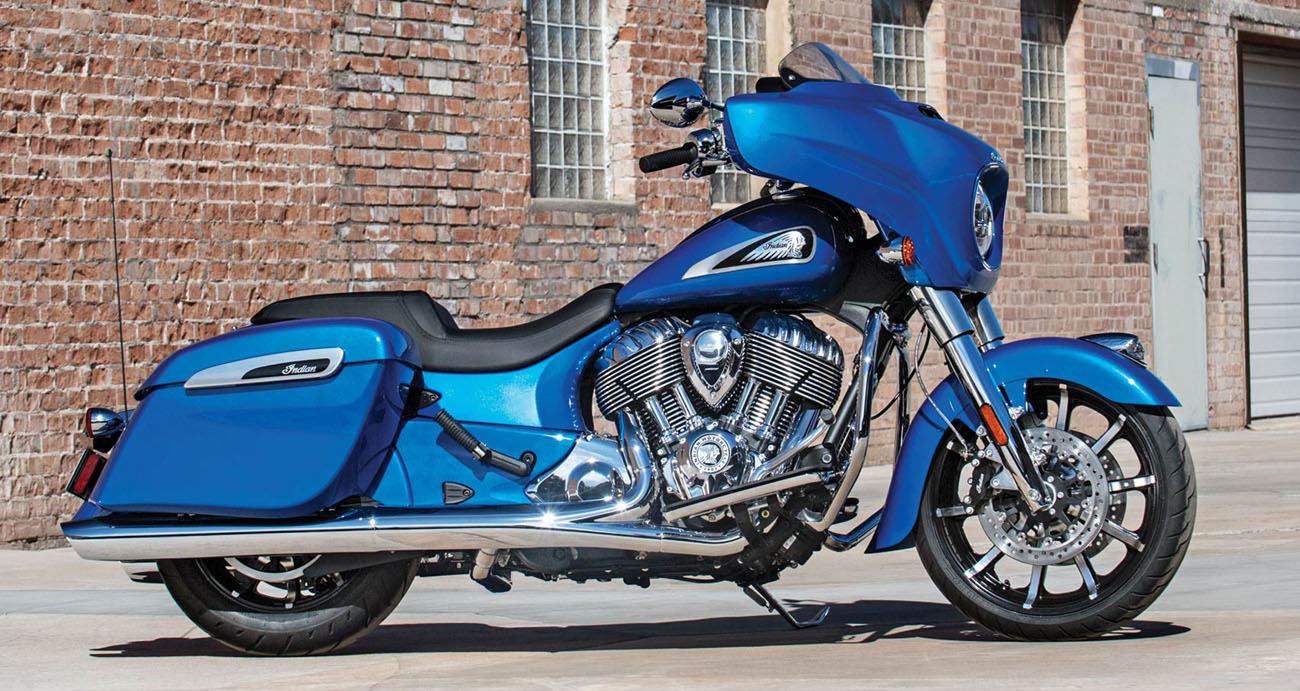

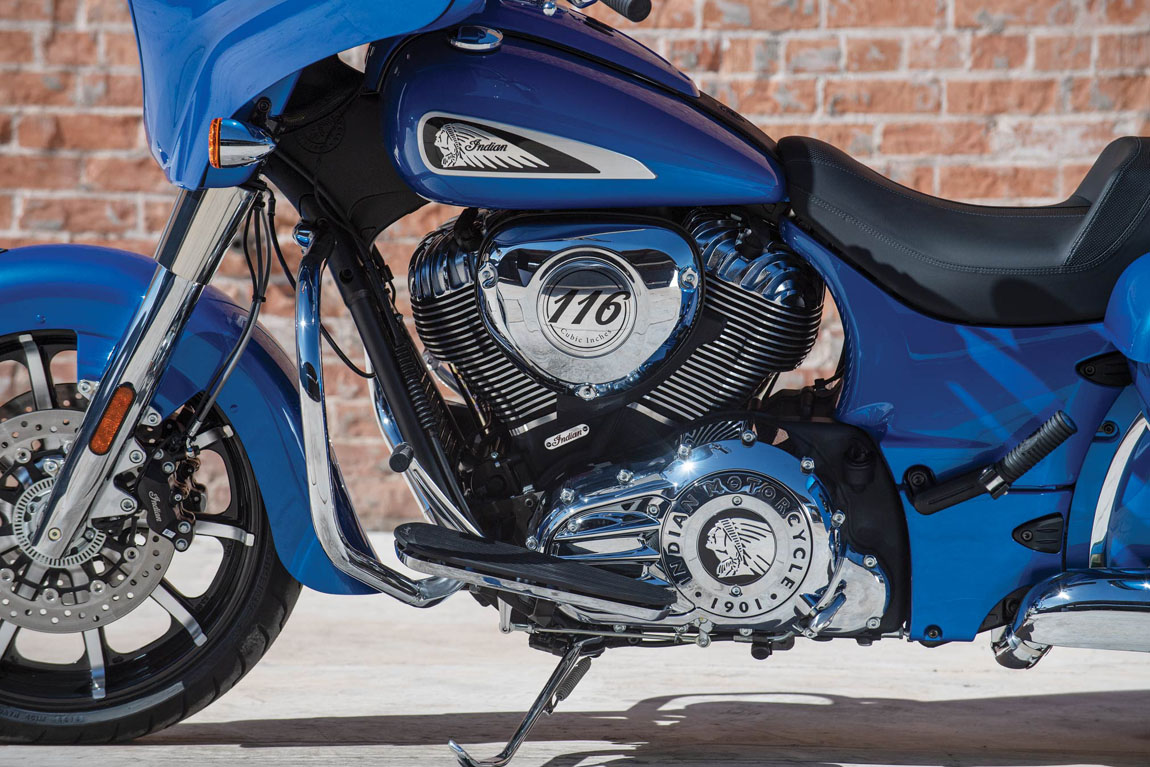

Indian Chieftain Limited 116 is produced in 2020. Engine is Thunder Stroke 116, 49˚ V-Twin, displacement 1890 cc / 115 cub in Indian Chieftain Limited 116 weighs 362 kg / 798 lbs. Indian Chieftain Limited 116 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Chieftain Limited 116 |
| Years: | 2020 |
| Engine: | Thunder Stroke 116, 49˚ V-Twin |
| Capacity: | 1890 cc / 115 cub in |
| Bore x Stroke: | 103.2 x 113mm |
| Compression Ratio: | 11.0:1 |
| Cooling System: | Air / Oil cooled |
| Exhaust: | Split dual exhaust with cross-over |
| Induction: | Electronic fuel injection, closed loop, 54 mm bore |
| Starting: | Electric |
| Max Toque: | 168 Nm / 126 lb-ft @ 2900 rpm |
| Clutch: | Wet, multi-plate |
| Transmission: | 6 Speed |
| Final Drive: | Belt, 152 tooth |
| Gear Ratio: | 1st 9.403 : 1 2nd 6.411 : 1 3rd 4.763 : 1 4th 3.796 : 1 5th 3.243 : 1 6th 2.789 : 1 |
| Final Drive Ratio: | 2.2:1 |
| Frame: | High tensile steel, monoshock |
| Front Suspension: | 46mm Telescopic forks |
| Front Wheel Travel: | 119 mm / 4.7 in |
| Rear Suspension: | Single shock, air adjustable |
| Rear Wheel Travel: | 114 mm / 4.5 in |
| Front Brakes: | 2 x 300mm Floating rotor 4 piston calipers |
| Rear Brakes: | Single 300mm floating rotor 2 piston calipers |
| ABS: | Individual front and rear control with ABS |
| Front Wheel: | Cast 19″ x 3.5″ |
| Rear Wheel: | Cast 16″ x 5.0″ |
| Front Tyre: | 130/60B19 61H Dunlop American Elite |
| Rear Tyre: | 180/60R16 80H Dunlop Elite 3 |
| Rake: | 25° |
| Trail: | 150 mm / 5.9 in |
| Dimensions: | Length 2506 mm / 98.7 in |
| Wheelbase: | 1668 mm / 65.7 in |
| Seat Height: | 650 mm / 25.6 in |
| Ground Clearance: | 130 mm / 5.1 in |
| Dry Weight: | 362 kg / 798 lbs |
| Wet Weight: | 376 kg / 830 lbs |
| GVWR: | 628 kg / 1385 lbs |
| Fuel Capacity: | 20.8 Litres / 5.5 US gal |
