Indian Chief Classic Vintage Jack Daniels Limited Edition (2016) technical specifications

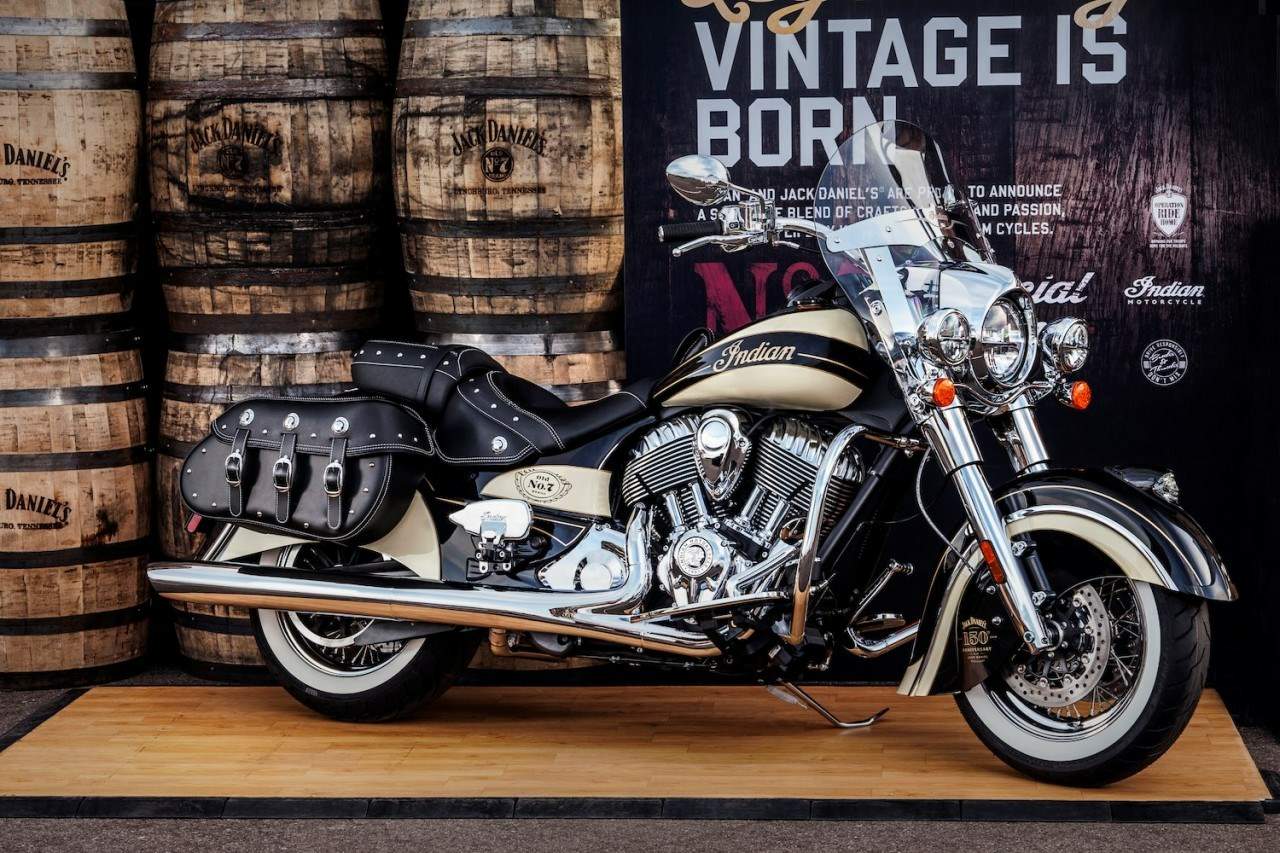

Indian Chief Classic Vintage Jack Daniels Limited Edition is produced in 2016. Engine is Thunder Stroke 111, displacement 1811.cc / 111 cu-in Indian Chief Classic Vintage Jack Daniels Limited Edition weighs 365 kg / 805 lbs. Indian Chief Classic Vintage Jack Daniels Limited Edition has 1 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Chief Classic Vintage Jack Daniels Limited Edition
Years:	2016
Engine:	Thunder Stroke 111
Capacity:	1811.cc / 111 cu-in
Bore x Stroke:	101 x 113 mm
Compression Ratio:	9.5:1
Induction:	Electronic fuel injection system closed loop fuel injection / 54mm bore
Battery:	12 volts / 18 amp/hour, 310 CCA
Starting:	Electric
Max Toque:	119.2 ft-lbs / 161.6 Nm @ 3000 rpm
Clutch:	Wet, Multi-Plate
Transmission:	6 Speed
Final Drive:	Belt
Gear Ratio:	1st 9.403 : 1 2nd 6.411 : 1 3rd 4.763 : 1 4th 3.796 : 1 5th 3.243 : 1 6th 2.789 : 1
Final Drive Ratio:	2.2:1
Frame:	Cast Aluminum Frame with Integrated Air-Box
Front Suspension:	Telescopic forks
Front Wheel Travel:	119 mm / 4.7 in
Rear Suspension:	Single shock
Rear Wheel Travel:	104 mm / 3.7 in
Front Brakes:	2x 300 mm Floating rotor 4 piston calipers
Rear Brakes:	Single 300 mm Floating rotor 2 piston calipers
Front Tyre:	130/90B16 67H
Rear Tyre:	180/65B16 81H
Rake:	29°
Trail:	155 mm / 6.1 in
Dimensions:	Length 2634 mm / 103.7 in Width 1025 mm / 40.4 in Height 1490 mm / 58.7 in
Wheelbase:	1730 mm / 68.1 in
Seat Height:	692 mm / 29.0 in
Ground Clearance:	140 mm / 5.5 in
Dry Weight:	365 kg / 805 lbs
Wet Weight:	379 kg / 835 lbs
GVWR:	573 kg / 1260 lbs
Fuel Capacity:	20.8 Litres / 5.5 Gal
