Technical specifications
|
| Model: |

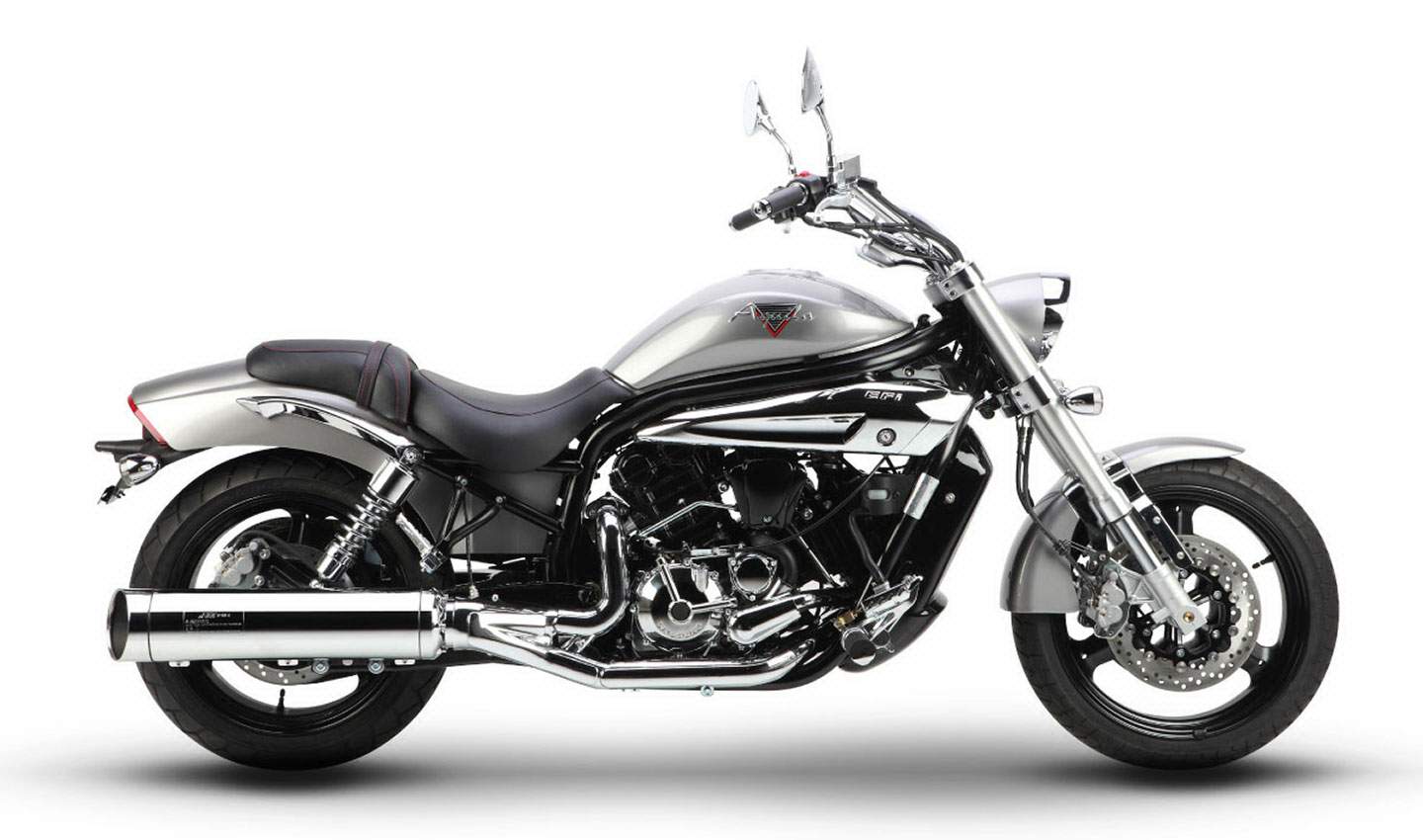

GV 650 Aquila Pro |
| Years: |
2014-15 |
|
Engine:
|
Four stroke, 90° V twin, DOHC, 4 valve per cylinder.
|
|
Capacity:
|
647 cc / 39.4 cu-in
|
|
Bore x Stroke:
|
81.5 x 62 mm
|
|
Cooling:
|
Liquid cooled
|
|
Compression Ratio:
|
10.3:1
|
|
Lubrication:
|
Wet sump
|
|
Engine Oil:
|
Semi-Synthetic, 10W/40
|
|
Induction:
|
Fuel injection
|
|
Ignition:
|
Digital CDI
|
|
Spark Plug:
|
NGK, CR8E
|
|
Starting:
|
Electric
|
|
Max Power:
|
72.1 hp / 52.4 kW @ 9000 rpm
|
|
Max Torque:
|
61.2 Nm / 6.28 kgf-m @ 7500 rpm
|
|
Clutch:
|
Wet, multiple discs, cable operated
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Belt
|
|
Frame:
|
Steel, double pipe
|
|
Front Suspension:
|
41mm upside down forks.
|
|
Rear Suspension:
|
Swing arm with Hydraulic Double shock absorber Preload adjustable
|
|
Front Brakes:
|
2x 300mm discs
|
|
Rear Brakes:
|
Single 230mm disc
|
|
Front Tyre:
|
110/70-17 54H
|
|
Rear Tyre:
|
180/55-17 69H
|
|
Dimensions:
|
Length 2040 mm / 80.3 in Width 840 mm / 33 in Height 1150 mm / 45.2 in
|
|
Wheelbase:
|
1665 mm / 65.5 in
|
|
Ground Clearance:
|
160 mm / 6.2 in
|
|
Seat Height:
|
690 mm / 27.1 in
|
|
Dry Weight:
|
218 kg / 480 lbs
|
|
Wet Weight:
|
2322 kg / 512lbs
|
|
Fuel Capacity:
|
15 Litres / 4.2 gal
|
