Husqvarna Witpilen 401 (2018-19) technical specifications

Husqvarna Witpilen 401 technical specifications

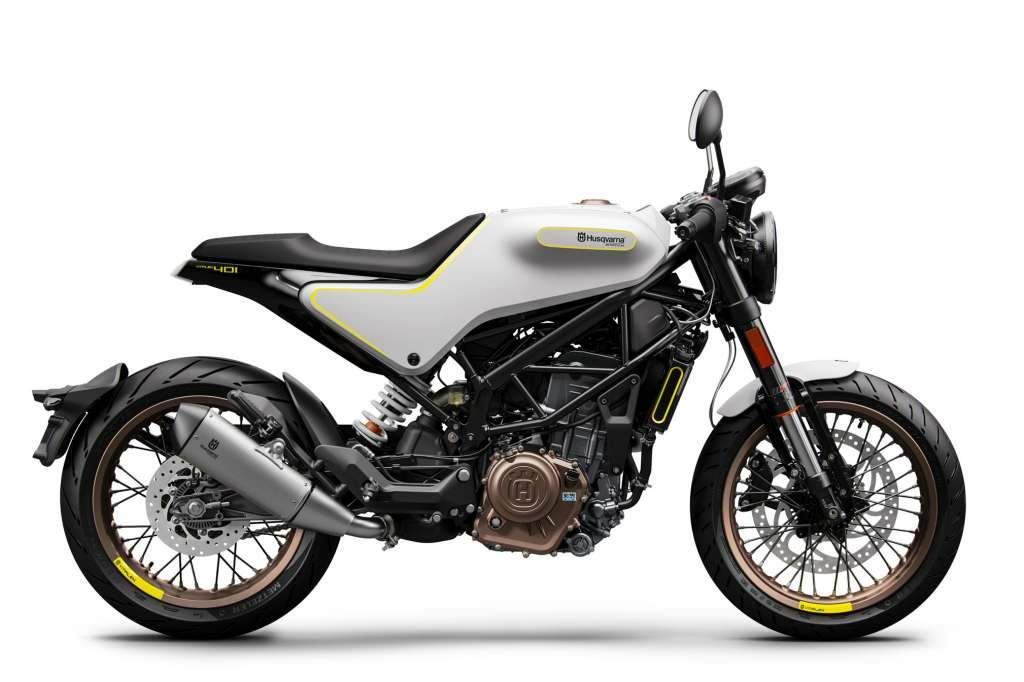

Husqvarna Witpilen 401 is produced in 2018-19. Engine is Four stroke, single cylinder, DOHC, 4 valve, displacement 373.2 cc / 22.8 cu-in , produces power 43 hp / 32 kW @ 9000 rpm and 37 Nm / 27.3 lb-ft @ 7000 rpm. Husqvarna Witpilen 401 wet weight is 150kg / 330.6 lbs. Husqvarna Witpilen 401 has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Witpilen 401
Years: 2018-19
Engine: Four stroke, single cylinder, DOHC, 4 valve
Capacity: 373.2 cc / 22.8 cu-in
Bore x Stroke: 89 x 60 mm
Cooling System: Liquid cooled
Compression Ratio: 12.6:1
Lubrication: Wet sump
Exhaust: Stainless steel/ Aluminum silencer with regulated catalytic converter
Induction: Fuel injection
Ignition: Digital CDI
Starting: Electric
Max Power: 43 hp / 32 kW @ 9000 rpm
Max Torque: 37 Nm / 27.3 lb-ft @ 7000 rpm
Clutch: PASC™ antihopping clutch, mechanically operated
Transmission: 6 Speed
Final Drive: Chain, X-Ring 5/8 x 1/4″
Secondary Gear Ratio: 15:45
Primary Gear Ratio: 30:80
EMS: Bosch EMS
Frame: Steel trellis frame, powder coated
Front Suspension: 43mm WP upside-down forks
Front Wheel Travel: 142 mm / 5.5 in
Rear Suspension: WP monoshock
Rear Wheel Travel: 150 mm / 5.9 in
Front Brakes: Single 320mm disc, 4 piston floating calliper
Rear Brakes: Single 230mm disc 1 piston floating calliper
ABS: Bosch 9M+ two-channel ABS (disengageable)
Front Wheel: Wire-spoked w/ aluminum rims 3.00 x 17
Rear Wheel: Wire-spoked w/ aluminum rims 4.00 x 17
Front Tyre: 110/70 - 17 Pirelli Scorpion Rally STR
Rear Tyre: 150/60 - 17 Pirelli Scorpion Rally STR
Steering Head Angle: 65 °
Rake: 25°
Triple Clamp Offset: 32 mm / 1.8 in
Trail: 95 mm / 3.7 in
Wheelbase: 1357 ± 15.5 mm / 53.4 in
Seat Height: 835 mm / 32.8 in
Ground Clearance: 170 mm / 6.7 in
Wet Weight: 150kg / 330.6 lbs
Fuel Capacity: 9.5 Litres / 2.5 US gal
