Husqvarna Vitpilen 125 (2024) technical specifications

Husqvarna Vitpilen 125 technical specifications

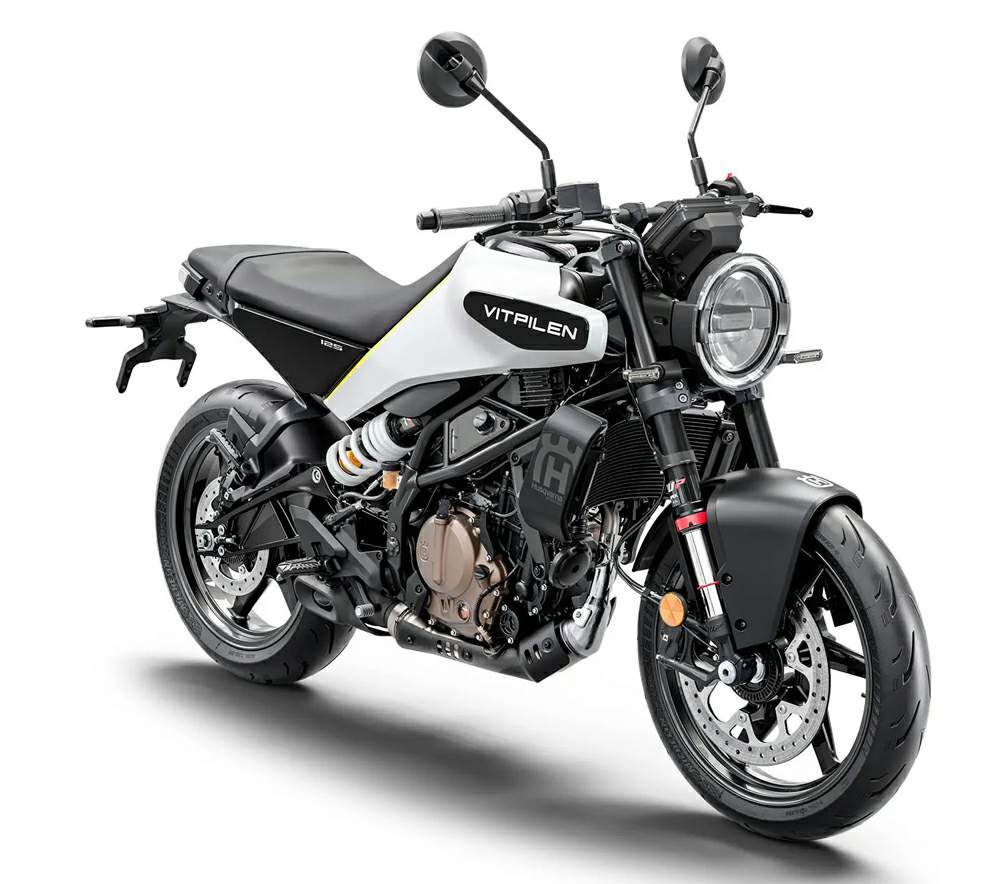

Husqvarna Vitpilen 125 is produced in 2024. Engine is Four stroke, single cylinder, DOHC with cam levers, 4 valve, displacement 125 cc / 7.6 cu-in , produces power 11 kW / 15 hp @ 1000 rpm and 11.5 Nm / 8.5 ft-lb @ 7750 rpm. Husqvarna Vitpilen 125 weighs 147.5 kg / 325 lbs. Husqvarna Vitpilen 125 has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Vitpilen 125
Years: 2024
Engine: Four stroke, single cylinder, DOHC with cam levers, 4 valve
Capacity: 125 cc / 7.6 cu-in
Bore x Stroke: 58 x 47.3 mm
Cooling System: Liquid cooled
Compression Ratio: 12.3:1
Lubrication: Wet sump with 2 oil pumps
Exhaust: Stainless steel with regulated catalytic converter
Induction: Dell' Orto EFI (33 mm throttle body)
Emission: EURO5+
Ignition: Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Engine Management: Bosch EMS with RBW
Starting: Electric 12V 8Ah
Max Power: 11 kW / 15 hp @ 1000 rpm
Max Torque: 11.5 Nm / 8.5 ft-lb @ 7750 rpm
Clutch: Multi-disc PASC slipper clutch
Transmission: 6 Speed
Primary Drive Ratio: 23:80
Final Drive Ratio: 14:45
Final Drive: X-ring chain 520
Frame: Powder coated steel trellis
Handlebars: Tapered aluminum
Front Suspension: 43mm WP Apex inverted non-adjustable open-cartridge fork
Front Wheel Travel: 150 mm / 5.9 in
Rear Suspension: WP Apex mono shock with progressive damping
Rear Wheel Travel: 150 mm / 5.9 in
Front Brakes: Single 320mm disc, ByBre, opposed 4 piston caliper
Rear Brakes: Single 240mm disc, ByBre, twin piston, floating caliper
ABS: Bosch 9.3 MP Cornering ABS and Supermoto mode, disengageable
Wheels: Cast aluminium
Front Wheel: 3.00 x 17
Rear Wheel: 4.00 x 17
Front Tyre: 110/70-R17 Michelin Power 6
Rear Tyre: 150/60-R17 Michelin Power 6
Steering Head Angle: 66?
Triple Clamp Offset: 32 mm / 1.26 in
Trail: 95 mm / 3.7 in
Wheelbase: 1368 ? 15.5 mm / 53.9 ?0.6 in
Seat Height: 820 mm / 32.3 in
Ground Clearance: 180 mm / 7.1 in
Dry Weight: 147.5 kg / 325 lbs
Fuel Capacity: 13 Litres / 3.4 US gal
