Husqvarna Vipilen 401 (2024) technical specifications

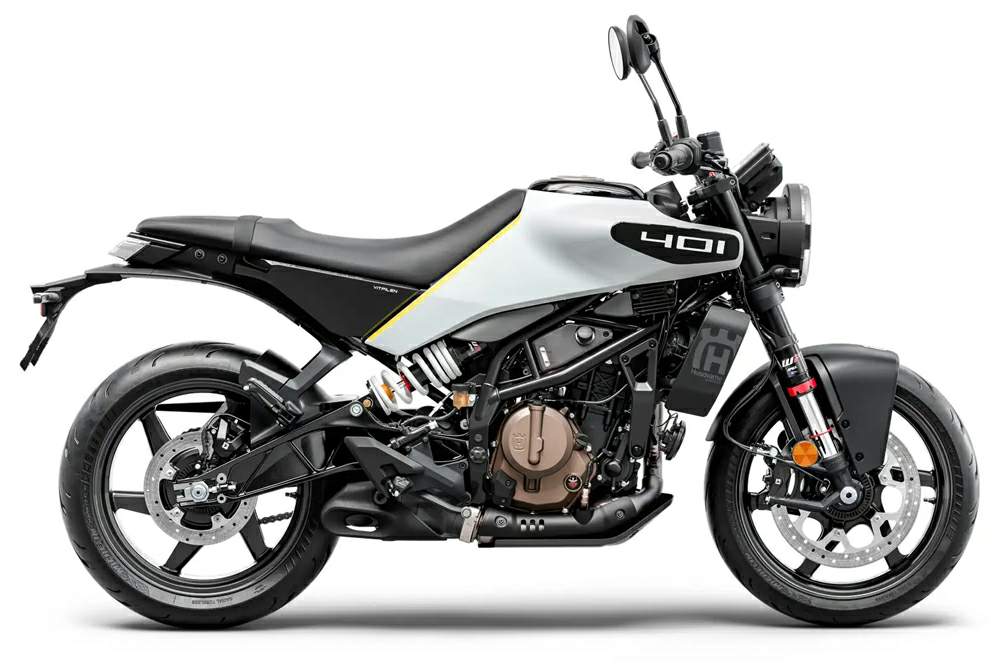

Husqvarna Vipilen 401 is produced in 2024. Engine is Four stroke, single cylinder, DOHC with cam levers, 4 valves, displacement 398.6 cc / 24.3 cu in , produces power 33 kW / 45 hp @ 8500 rpm and 39 Nm / 28.8 lb-ft @ 7000 rpm. Husqvarna Vipilen 401 weighs 154.5 kg / 340.6 lbs. Husqvarna Vipilen 401 has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Vipilen 401
Years:	2024
Engine:	Four stroke, single cylinder, DOHC with cam levers, 4 valves
Capacity:	398.6 cc / 24.3 cu in
Bore x Stroke:	89 x 64 mm
Cooling System:	Liquid cooled
Compression Ratio:	12.6:1
Lubrication:	Wet sump with 2 oil pumps
Exhaust:	Stainless steel / Aluminium silencer with regulated catalytic converter
Emission:	EURO 5+
Induction:	Dell' Orto EFI (46mm throttle body)
Engine Management:	Bosch EMS with RBW
Starting:	Electric, 12V 8Ah
Max Power:	33 kW / 45 hp @ 8500 rpm
Max Torque:	39 Nm / 28.8 lb-ft @ 7000 rpm
Clutch:	Multi disc PASC slipper clutch
Transmission:	6 Speed
Primary Drive Ratio:	33:86
Final Drive Ratio:	14:43
Final Drive:	Chain, X-Ring 520
Frame:	Steel trellis frame, powder coated
Front Suspension:	43mm WP APEX upside-down forks, with compression rebound adjustability
Front Wheel Travel:	150 mm / 5.9 in
Rear Suspension:	WP APEX monoshock with preload and rebound adjustability
Rear Wheel Travel:	150 mm / 5.9 in
Front Brakes:	Single 320mm disc, ByBre opposed 4 piston caliper
Rear Brakes:	Single 240mm disc, ByBre, twon piston, floating caliper
ABS:	Two channel Bosch 9.31MP (cornering ABS and Supermoto Mode, disengageable
Wheels:	Cast aluminium
Front Wheel:	3.00 x 17
Rear Wheel:	4.00 x 17
Front Tyre:	110/70-R17 Michelin Power 6
Rear Tyre:	150/60-R17 Michelin Power 6
Steering Head Angle:	66?
Triple Clamp Offset:	32 mm / 1.8 in
Trail:	95 mm / 3.7 in
Wheelbase:	1368 ? 15.5 mm / 53.8 ?0.6 in
Seat Height:	820 mm / 32.3 in
Ground Clearance:	180 mm / 7.1 in
Dry Weight:	154.5 kg / 340.6 lbs
Fuel Capacity:	13 Litres / 3.4 US gal
