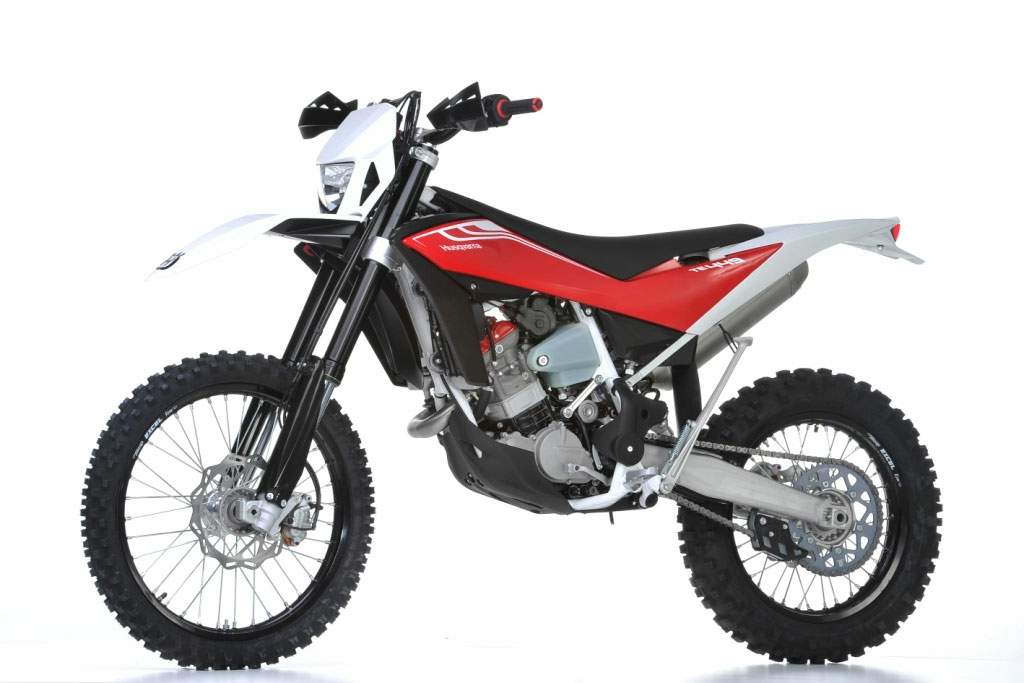

Husqvarna TE 511 (2010-12) technical specifications
Husqvarna TE 511 is produced in 2010-12. Engine is Four stroke, single cylinder, DOHC, 4 valves, displacement 501 cc / 30.5 cu-in , produces power and . Husqvarna TE 511 wet weight is 113 kg / 249.1 lb. Husqvarna TE 511 has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | TE 511 |
| Years: | 2010-12 |
| Engine: | Four stroke, single cylinder, DOHC, 4 valves |
| Capacity: | 501 cc / 30.5 cu-in |
| Bore x Stroke: | 97 x 67.8 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 12.9;1 |
| Exhaust: | Full stainless steel system (silencer and pipes) |
| Induction: | Electronic Fuel Injection |
| Ignition: | CDI electronic with digital advance control. |
| Starting: | Electric |
| Spark plug type: | NGK" CR 9EKB |
| Spark plug gap: | 0,7 mm |
| Max Power: | |
| Max Torque: | |
| Clutch: | Wet, multiplate type; hydraulic control |
| Transmission: | 6 Speed |
| Final Drive: | Chain |
| Gear Ratio: | 1st 2.286 (32/14) 2nd 1.875 (30/16) 3rd 1.533 (23/15) 4th 1.250 (25/20) 5th 1.043 (24/23) 6th 0.917 (22/24) |
| Frame: | Double beam and double cradle high resistance Cr/Mo steel (round and elliptical section); Light alloy rear frame |
| Front Suspension: | 48mm Upside-Down" telescopic hydraulic fork with advanced axle; compression and rebound stroke adjustment 295mm wheel travel |
| Rear Suspension: | ."KAYABA" Progressive link with single hydraulic shock absorber; spring preload adjustment, compression (high and low speed) and rebound adjustment, 296mm wheel travel |
| Front Brakes: | Single 260mm disc, Fixed disc, "Wave" type, with hydraulic control and double Ø24 piston floating caliper |
| Rear Brakes: | Single 240mm disc, Fixed disc, "Wave" type, with hydraulic control and floating Ø26 piston caliper |
| Front Tyre: | 90/90-21 |
| Rear Tyre: | 140/80-18 |
| Rake: | 25.8° |
| Trail: | 101 mm / 3.98 in |
| Wheelbase: | 1495 mm / 58.7 in |
| Seat Height: | 963mm / 37.9 in |
| Wet Weight: | 113 kg / 249.1 lb |
| Fuel Capacity: | 8.5 Litres / 1.9 US gal |
