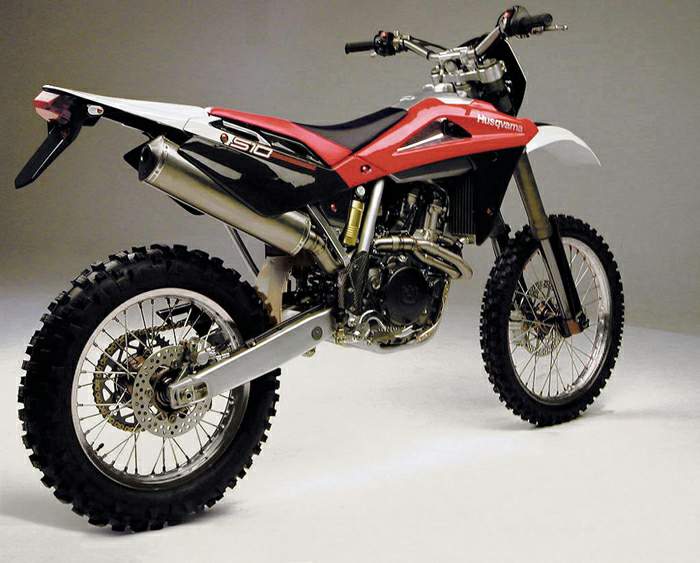

Husqvarna TE 510 Centennial Special Edition (2005) technical specifications
Husqvarna TE 510 Centennial Special Edition is produced in 2005. Engine is Four stroke, single cylinder, DOHC, 4 valves, displacement 501 cc / 30.5 cu-in , produces power 59.8 hp / 44 kW @ 8000 rpm and 49 Nm / 56 lb-ft @ 6400 rpm. Husqvarna TE 510 Centennial Special Edition weighs 117 kg / 258 lbs. Husqvarna TE 510 Centennial Special Edition has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | TE 510 Centennial Special Edition |
| Years: | 2005 |
| Engine: | Four stroke, single cylinder, DOHC, 4 valves |
| Capacity: | 501 cc / 30.5 cu-in |
| Bore x Stroke: | 97 x 67.8 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 12.5;1 |
| Induction: | 41mm Keihin MX carburetor |
| Ignition: | CDI |
| Battery: | 12 V - 6 Ah |
| Starting: | Electric & kick |
| Max Power: | 59.8 hp / 44 kW @ 8000 rpm |
| Max Torque: | 49 Nm / 56 lb-ft @ 6400 rpm |
| Clutch: | Wet / Multiplate / 6 spd |
| Transmission: | 6 Speed |
| Final Drive: | Chain |
| Gear Ratio: | 1st 2.000 (28/14), 2nd 1.611 (29/18), 3rd 1.333 (24/18), 4th 1.086 (25/23), 5th 0.920 (23/25), 6th 0.814 (22/27) |
| Frame: | Steel single tube cradle (round tubes); rear frame in light alloy |
| Front Suspension: | Marzocchi "Upside-Down" telescopic hydraulic fork with advanced axle; compression and rebound stroke adjustment |
| Front Wheel Travel: | 300 mm / 11.8 in |
| Rear Suspension: | Sachs progressive "Soft Damp" type with single hydraulic shock absorber; spring preload adjustment, compression and rebound adjustment |
| Rear Wheel Travel: | 320 mm / 12.6 in |
| Front Brakes: | Single 260mm disc |
| Rear Brakes: | Single 220mm disc |
| Front Tyre: | 90/90-21 |
| Rear Tyre: | 140/80-18 |
| Wheelbase: | 1460 mm / 57.5 in |
| Seat Height: | 975 mm / 38.4 in |
| Ground Clearance: | 340 mm / 13.4 in |
| Dry Weight: | 117 kg / 258 lbs |
| Fuel Capacity: | 9.2 Litres / 2.4 US gal |
