Technical specifications
|
| Model: |

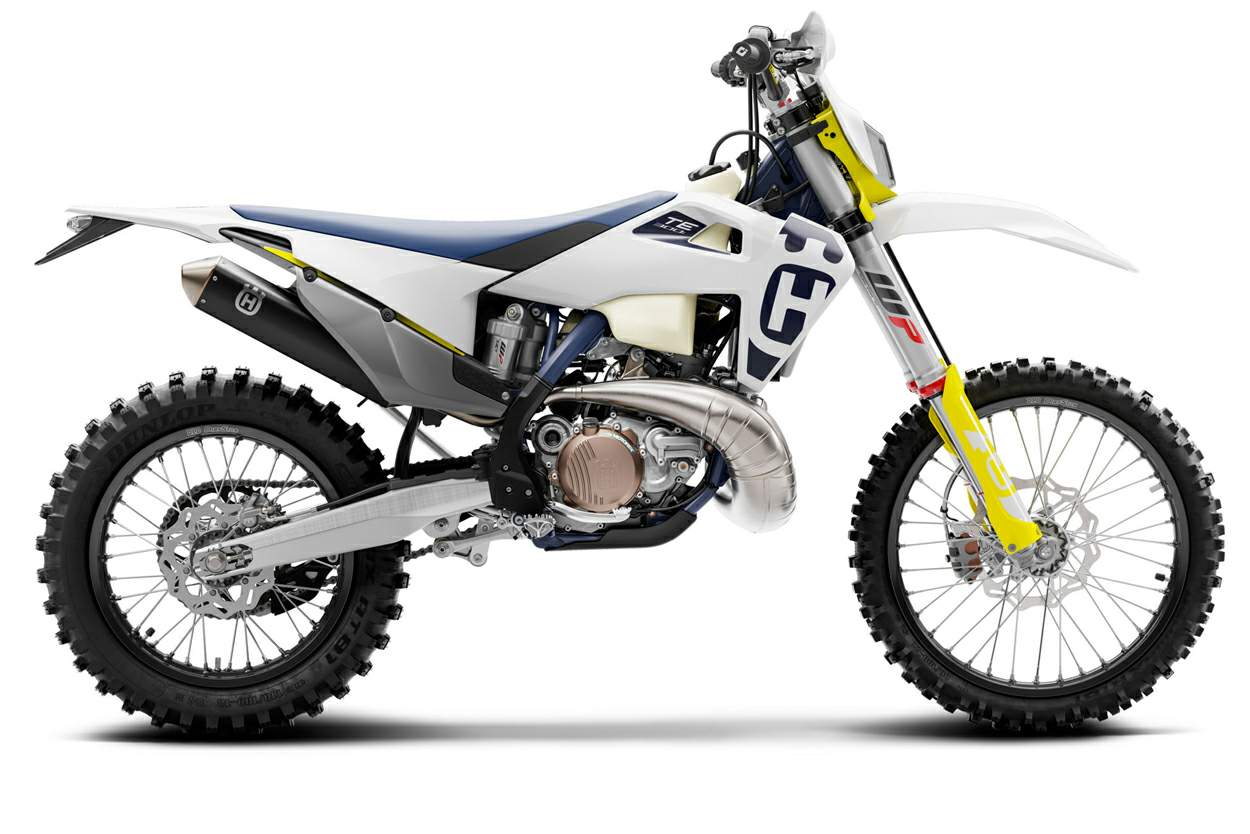

TE 300i |
| Years: |
2020-21 |
|
Engine:
|
Two stroke, single cylinder with reed intake and exhaust control
|
|
Capacity:
|
293.2 cc / 17.8 cu-in
|
|
Bore x Stroke:
|
72 x 72 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
NA
|
|
Exhaust::
|
TVC power valve
|
|
Lubrication:
|
Electronically controlled oil injection
|
|
Induction:
|
Dell’ Orto EFI w/ 39mm throttle body
|
|
Ignition:
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
|
|
Starting:
|
Electric
|
|
Max Power:
|
NA
|
|
Clutch:
|
Wet, DDS multi-disc clutch, Magura hydraulics
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
ChainX-Ring 5/8 x 1/4 in
|
|
Frame:
|
Central double-cradle chromoly steel, Carbon-fiber reinforced polyamide Subframe
|
|
Front Suspension:
|
48mm Fully adjustable WP Xplor inverted fork
|
|
Front Wheel Travel:
|
300 mm / 11.8 in
|
|
Rear Suspension:
|
Linkage-assisted fully adjustable WP Xact shock
|
|
Rear Wheel Travel:
|
330 mm / 13.0 in
|
|
Front Brakes:
|
Single 260mm disc
|
|
Rear Brakes:
|
Single 220mm disc
|
|
Front Tyre:
|
80/100-21
|
|
Rear Tyre:
|
110/100-18
|
|
Rake:
|
26.5°
|
|
Dimensions:
|
Length 2260 mm / 89.0 in
|
|
Wheelbase:
|
1482±10 mm / 58.5 in
|
|
Seat Height:
|
950 mm / 37.4 in
|
|
Ground Clearance:
|
355 mm / 14.0 in
|
|
Dry Weight:
|
111.5 kg / 246 lbs
|
|
Fuel Capacity:
|
8.310 Litres / 2.2 US gal
|
