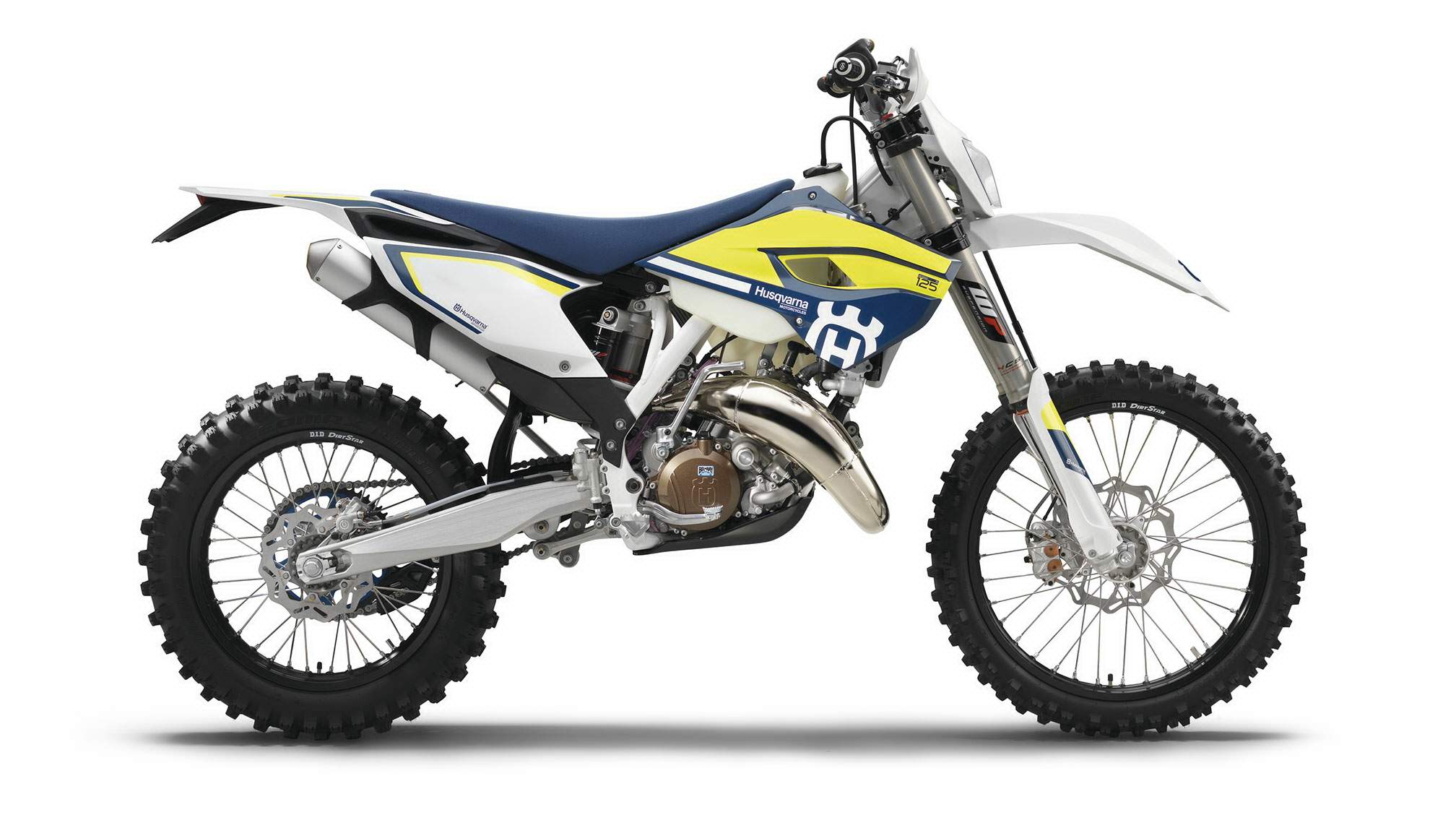

Husqvarna TE 125 (2015-16) technical specifications
Husqvarna TE 125 is produced in 2015-16. Engine is Two stroke, single cylinder, with reed intake and exhaust control, displacement 124.8cc / 7.6 cu-in , produces power and . Husqvarna TE 125 weighs 96.0 kg / 211.6 lbs. Husqvarna TE 125 has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | TE 125 |
| Years: | 2015-16 |
| Engine: | Two stroke, single cylinder, with reed intake and exhaust control |
| Capacity: | 124.8cc / 7.6 cu-in |
| Bore x Stroke: | 54.0 x 54.5 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | |
| Lubrication: | Mixture oil lubrication |
| Induction: | Keihin 29 Carburettor |
| Ignition: | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
| Starting: | Electeic |
| Max Power: | |
| Max Torque: | |
| Clutch: | Wet multi-disc clutch / Magura hydraulics |
| Transmission: | 6 Speed |
| Final Drive: | Chain. 520 X-Ring |
| Gear Ratio: | 1st 2.833 (34/12) 2nd 1.875 (30/16) 3rd 1.364 (30/22) 4th 1.143 (24/21) 5th 0.957 (22/23) 6th 0.840 (21/25 |
| Frame: | Central tube frame made of chrome molybdenum steel tubing |
| Front Suspension: | WP Suspension Up Side Down 4CS |
| Front Wheel Travel: | 300 mm / 11.8 in |
| Rear Suspension: | WP Monoshock with linkage |
| Rear Wheel Travel: | 330 mm / 12.9 in |
| Front Brakes: | Single 260mm disc 4 piston caliper |
| Rear Brakes: | Single 220mm disc 2 piston caliper |
| Front Tyre: | 90/90-21 |
| Rear Tyre: | 120/80-18 |
| Rake: | 26.5° |
| Wheelbase: | 1471 mm / 57.9 in |
| Seat Height: | 960 mm / 37.8 in |
| Ground Clearance: | 355 mm / 14.0 in |
| Dry Weight: | 96.0 kg / 211.6 lbs |
| Wet Weight: | 117.0 kg / 257.9 lbs |
| Fuel Capacity: | 9.5 Litres / 2.5 US gal |
