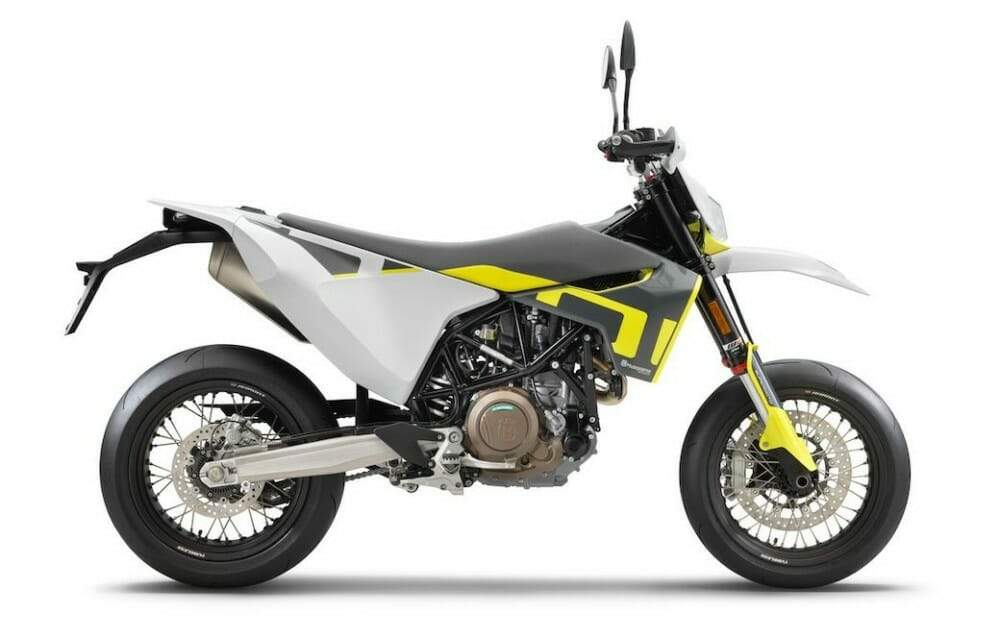

Husqvarna Supermoto 701 (2020) technical specifications
Husqvarna Supermoto 701 is produced in 2020. Engine is Four stroke, single cylinder, SOHC, 4 valves, displacement 692.7 cc / 42.27 cu in , produces power 55 kW / 74 hp @ 8000 rpm and 71 Nm / 7.24 kgf-m / 52.4 ft-lb @ 6750 rpm. Husqvarna Supermoto 701 weighs 145 kb / 319.6 lbs. Husqvarna Supermoto 701 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Supermoto 701 |
| Years: | 2020 |
| Engine: | Four stroke, single cylinder, SOHC, 4 valves |
| Capacity: | 692.7 cc / 42.27 cu in |
| Bore x Stroke: | 105 x 80 mm |
| Compression Ratio: | 12.7:1 |
| Cooling System: | Liquid cooling |
| Lubrication: | Pressure lubrication with 2 oil pumps |
| Engine Oil: | Bel Ray, SAE 10W-50 |
| Exhaust: | Stainless steel silencer with regulated catalytic converter |
| Engine Management: | Keihin EMS with Ride By Wire |
| Induction: | Keihin EMS with RBW |
| Ignition: | Double ignition |
| Starting: | Electric |
| Battery: | 12V 8.6Ah |
| Max Power: | 55 kW / 74 hp @ 8000 rpm |
| Max Torque: | 71 Nm / 7.24 kgf-m / 52.4 ft-lb @ 6750 rpm |
| Clutch: | APTC(TM) slipper clutch, hydraulically operated |
| Transmission: | 6 Speed |
| Final Drive: | Chain X-Ring 5/8 x 1/4" |
| Primary Drive Ratio: | 36:79 |
| Final Drive Ratio: | 16:42 |
| Frame: | Chromium-Molybdenum-Steel trellis frame, powder coated, Subframe Self-supporting polyamide tank |
| Handlebar: | Aluminium, tapered, Ø 28/22 mm |
| Front Suspension: | WP-USD split function fork Ø 48 mm |
| Front Wheel Travel: | 215 mm / 8.4 in |
| Rear Suspension: | WP-Monoshock with Pro-Lever linkage |
| Rear Wheel Travel: | 250 mm / 9.8 in |
| Front Brakes: | Single 320 mm disc, Brembo four piston, radially bolted caliper |
| Rear Brakes: | Single 240 mm disc, Brembo single piston, floating caliper |
| ABS: | ABS Bosch 9M+ Two Channel (disengageable, supermoto mode) |
| Front Wheel: | Spoked wheels with aluminium tubeless rims 3.50 x 17"; |
| Rear Wheel: | Spoked wheels with aluminium tubeless rims 5.00 x 17" |
| Front Tyre: | 120/70 ZR 17 |
| Rear Tyre: | 160/60 ZR 17 |
| Steering Head Angle: | 63° |
| Triple Clamp Ofset: | 35 mm / 33 mm |
| Trail: | 112 mm / 4.4 in |
| Wheelbase: | 1480 ± 15 mm mm / 58.2 in |
| Seat Height: | 890 mm / 35.0 in |
| Ground Clearance: | 270 mm / 10.6 in |
| Dry Weight: | 145 kb / 319.6 lbs |
| Fuel Capacity: | 13 L / 3.4 US gal / 2.9 Imp gal |
| Reserve: | 2.5 L / 0.66 US gal / 0.55 Imp gal |
