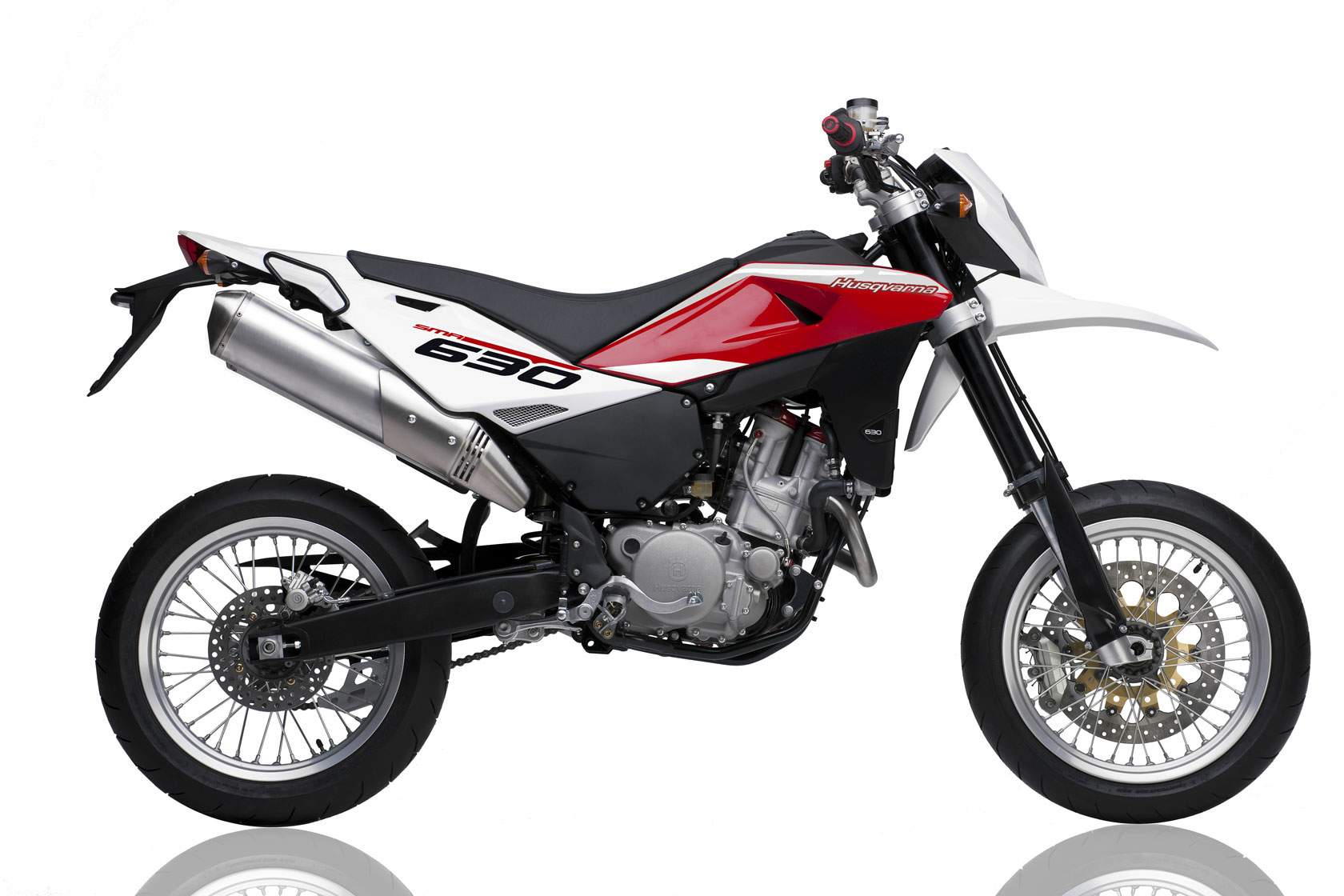

Husqvarna SMR 630 (2011) technical specifications
Husqvarna SMR 630 is produced in 2011. Engine is Four stroke, single cylinder, DOHC, 4 valves, displacement 600 cc / 36.6 cu-in , produces power and . Husqvarna SMR 630 wet weight is 148.3 kg / 326.9 lbs. Husqvarna SMR 630 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | SMR 630 |
| Years: | 2011 |
| Engine: | Four stroke, single cylinder, DOHC, 4 valves |
| Capacity: | 600 cc / 36.6 cu-in |
| Bore x Stroke: | 100 x 76.4 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 12.4:1 |
| Induction: | Electronic injection feed |
| Ignition: | Electronic, inductive discharge, w/digital control |
| Starting: | Electric |
| Max Power: | |
| Max Torque: | |
| Clutch: | Wet, multiplate; hydraulic actuated |
| Transmission: | 6 Speed |
| Final Drive: | Chain |
| Gear Ratio: | 1st 2,615 (34/13) / 2nd 1,812 (29/16) / 3rd 1,350 (27/20) / 4th 1,091 (24/22) / 5th 0,916 (22/24) / 6th 0,769 (20/26) |
| Frame: | Main frame steel single tube cradle, Sub-frame aluminum |
| Front Suspension: | 45mm Marzocchi Upside-Down" fork with advanced axle; rebound stroke adjustment |
| Front Wheel Travel: | 250 mm / 9.8 in |
| Rear Suspension: | Progressive "Soft Damp" type with single SACHS shock absorber; spring preload adjust, compression and rebound adjustment (compression stroke: double adjustment |
| Rear Wheel Travel: | 290 mm / 11.4 in |
| Front Brakes: | Single 300mm disc |
| Rear Brakes: | Single 220mm disc |
| Front Tyre: | 120/70 -17 |
| Rear Tyre: | 150/60-17 |
| Wheelbase: | 1495 mm / 58.8 in |
| Seat Height: | 910mm / 35.8 in |
| Ground Clearance: | 240 mm / 9.4 in |
| Wet Weight: | 148.3 kg / 326.9 lbs |
| Fuel Capacity: | 12 Litres / 3.1 US gal |
