Husqvarna SM 610 (2005-07) technical specifications

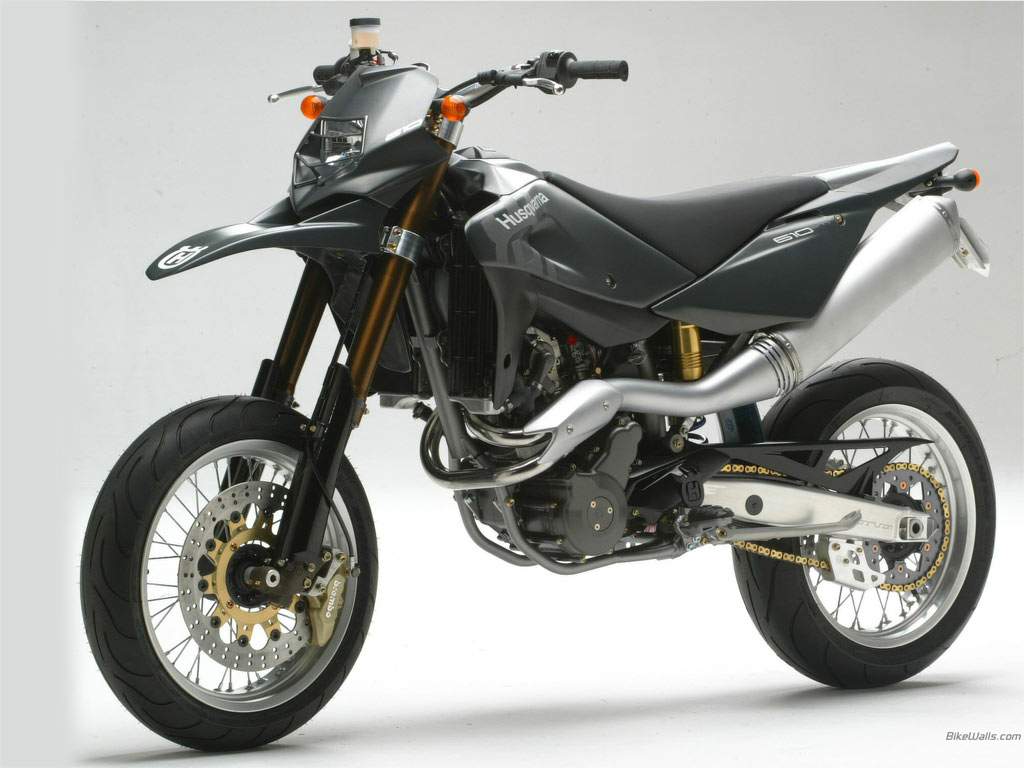

Husqvarna SM 610 is produced in 2005-07. Engine is Four stroke, single cylinder, SOHC, 4 valves, displacement 576 cc / 35.2 cu-in , produces power 53 hp / 38.3 kW @ 7000 rpm and 52 Nm / 36.8 lb-ft @ 6800 rpm. Husqvarna SM 610 top speed is 165.8 km/h. Husqvarna SM 610 weighs 142.0 kg / 313.0 lbs. Husqvarna SM 610 has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	SM 610
Years:	2005-07
Engine:	Four stroke, single cylinder, SOHC, 4 valves
Capacity:	576 cc / 35.2 cu-in
Bore x Stroke:	98.0 x 76.4 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.0:1
Induction:	41mm Keihin FCR MX
Ignition:	CDI Adjustable advance
Starting:	Electric
Max Power:	53 hp / 38.3 kW @ 7000 rpm
Max Torque:	52 Nm / 36.8 lb-ft @ 6800 rpm
Clutch:	Wet, multiplate type, hydraulic control
Transmission:	6 Speed
Final Drive:	Chain
Gear Ratio:	1st 2.615 (34/13), 2nd 1.812 (29/16), 3rd 1.350 (27/20), 4th 1.091 (24/22), 5th 0.916 (22/24), 6th 0.769 (20/26)
Frame:	Steel single tube cradle round tubes rear frame in light alloy
Front Suspension:	45mm Marzocchi "Upside-Down" telescopic hydraulic fork with advanced axle. compression and rebound stroke adjustment
Front Wheel Travel:	250 mm / 9.8 in
Rear Suspension:	Sachs progressive "Soft Damp" type with single hydraulic shock absorber, spring preload adjustment, compression and rebound adjustment
Rear Wheel Travel:	290 mm / 11.4 in
Front Brakes:	Single 320mm disc
Rear Brakes:	Single 220mm disc
Front Tyre:	120/70 -17
Rear Tyre:	150/60 -17
Wheelbase:	1497 mm / 58.9 in
Dry Weight:	142.0 kg / 313.0 lbs
Fuel Capacity:	12.5 Litres / 3.3 US gal
Consumption Average:	20.4 km/lit
Standing ¼ Mile:	13.3 sec
Top Speed:	165.8 km/h
