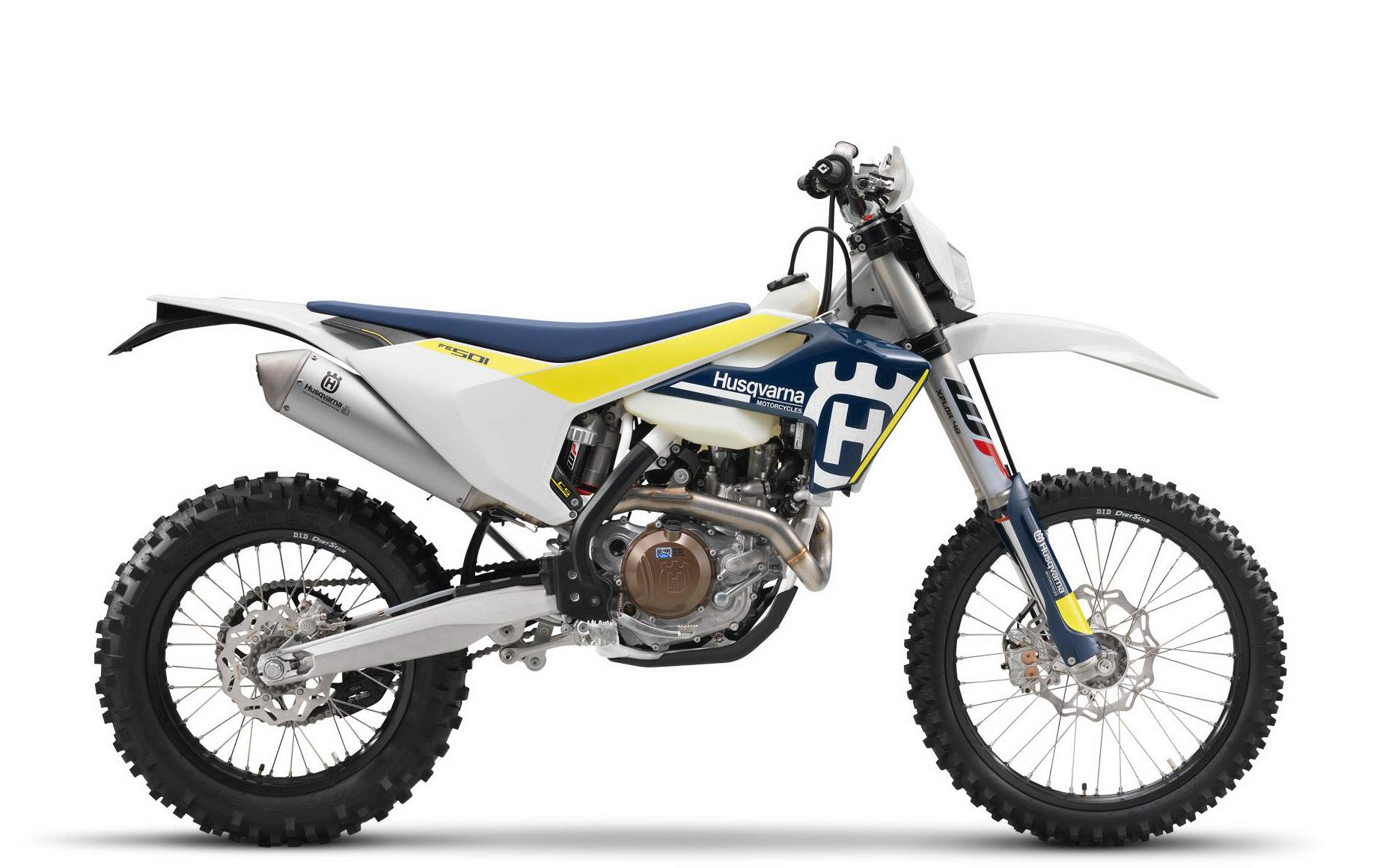

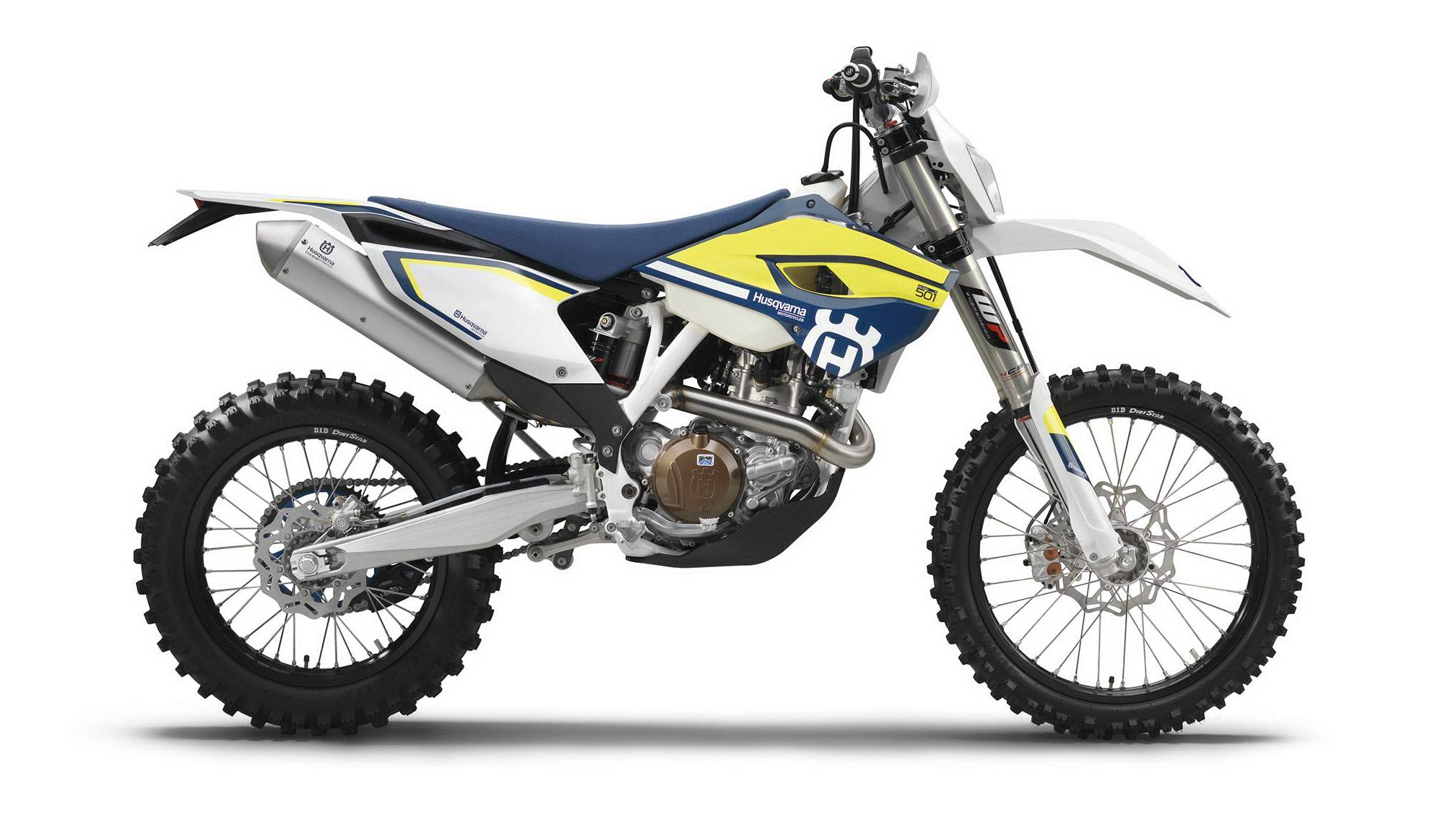

Husqvarna FE 501 (2016-17) technical specifications
Husqvarna FE 501 is produced in 2016-17. Engine is Four stroke. single cylinder. SOHC. 4 valve per cylinder, displacement 510.4 cc / 31.1 cu in , produces power 45 hp / 32.8 kW and Nm / ft-lb @ rpm. Husqvarna FE 501 weighs 113.5 kg / 250.2 lbs. Husqvarna FE 501 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | FE 501 |
| Years: | 2016-17 |
| Engine: | Four stroke. single cylinder. SOHC. 4 valve per cylinder |
| Capacity: | 510.4 cc / 31.1 cu in |
| Bore x Stroke: | 95 x 72.0 mm |
| Compression Ratio: | 12.8:1. |
| Cooling System: | Liquid cooling system, continuous circulation of cooling liquid with water pump |
| Lubrication: | Forced oil lubrication with 2 Eaton pumps |
| Induction: | Keihin electronic fuel injection and 42mm throttle body |
| Ignition: | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
| Starting: | Electric |
| Max Power: | 45 hp / 32.8 kW |
| Max Torque: | Nm / ft-lb @ rpm |
| Clutch: | Wet multi-disc clutch DDS / Brembo hydraulics |
| Transmission: | 6 Speed, claw shifted |
| Final Drive: | Chain 520 X-Ring |
| Primary Ratio: | 24:73 |
| Secondary Ratio: | 14:52 (13:52) |
| Frame: | Central tube frame made of chrome molybdenum steel tubing |
| Front Suspension: | WP Suspension Up Side Down 4CS forks. |
| Front Wheel Travel: | 300 mm /11.8 in |
| Rear Suspension: | WP Monoshock with linkage |
| Rear Wheel Travel: | 330 mm / 13.0 in |
| Front Brakes: | Single 260 mm with 4 pot brake caliper |
| Rear Brakes: | Single 220 mm with 1 pot brake caliper |
| Front Tyre: | 90/90-21 |
| Rear Tyre: | 140/90-18 |
| Steering Head Angle: | 63.5° |
| Trail: | 107 mm / 4.2 in |
| Dimensions: | Length 2260 mm / 89.0 in |
| Wheelbase: | 1482±10 mm / 58.3 in |
| Seat Height: | 970 mm / 38.2 in |
| Ground Clearance: | 345 mm / 13.6 in |
| Dry Weight: | 113.5 kg / 250.2 lbs |
| Fuel Capacity: | 9.5 Litres / 2.8 US gal |
Back to Husqvarna motorcycles
