Technical specifications
|
| Model: |

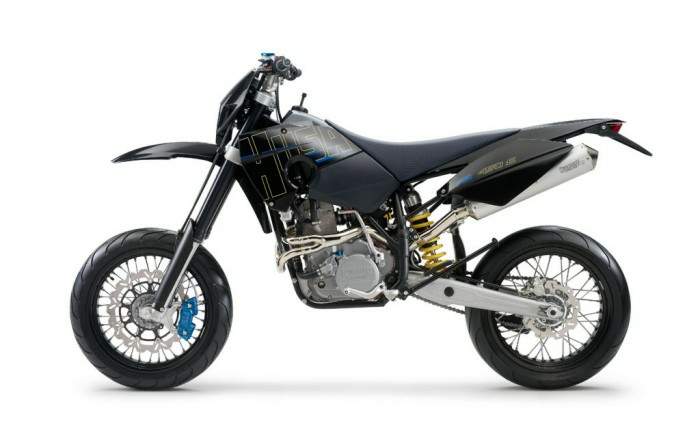

FS 450e Supermoto |
| Years: |
2006-08 |
|
Engine:
|
Four stroke, single-cylinder, SOHC, 4 valve
|
|
Capacity:
|
449.2 cc / 35.2 cu-in
|
|
Bore x Stroke:
|
100 x 57.2 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
13:1
|
|
Lubrication:
|
Wet sump
|
|
Induction:
|
Keihin MX FCR 41
|
|
Ignition:
|
Kokusan digital
|
|
Starting:
|
Electric & Kick
|
|
Max Power:
|
47.8 hp / 35.2 kW @ 6400 rpm
|
|
Max Torque:
|
48 Nm / 4.89 kg-m @ 6647 rpm
|
|
Clutch:
|
Wet multi-disc clutch, operated hydraulically
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
24 CrMo4 Tempered
|
|
Front Suspension:
|
WP 4860MA HUSABERG SUPERMOTO, 275mm wheel travel.
|
|
Rear Suspension:
|
WP 5018 DCC PDS HUSABERG SUPERMOTO, 288mm wheel travel.
|
|
Front Brakes:
|
Single 310mm 4 piston caliper
|
|
Rear Brakes:
|
Single 220mm disc 1 piston caliper
|
|
Front Tyre:
|
120/60 -17
|
|
Rear Tyre:
|
160/60 -17
|
|
Wheel base:
|
1490 mm / 58.6 in
|
|
Seat Height:
|
870 mm / 34.2 in
|
|
Dry Weight:
|
112 kg / 246.9 lbs
|
|
Fuel Capacity:
|
9 Litres / 2.4 US gal
|
