Honda XR 250R (1991) technical specifications

Honda XR 250R technical specifications

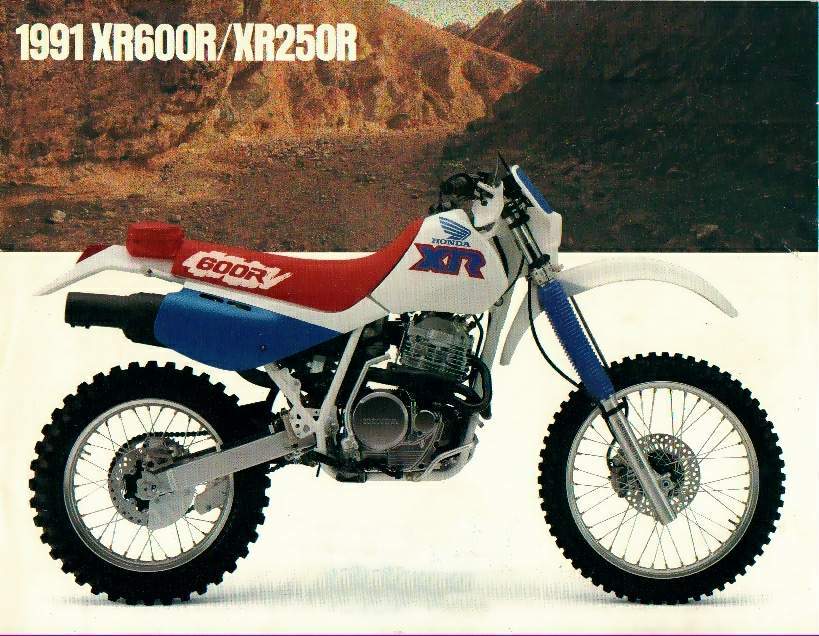

Honda XR 250R is produced in 1991. Engine is Four-stroke, single cylinder SOHC, 4 valve, displacement 249 cc / 15.1 cu-in , produces power 30 hp / 21.9 kW @ 9000 rpm and 24.5 Nm @ 7500 rpm. Honda XR 250R weighs 108 kg / 238 lbs. Honda XR 250R has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: XR 250R
Years: 1991
Engine: Four-stroke, single cylinder SOHC, 4 valve
Capacity: 249 cc / 15.1 cu-in
Bore x Stroke: 73 x 59.5 mm
Cooling System: Air cooled
Compression Ratio: 10.0:1
Induction: Single 30 mm carburator
Ignition: CDI
Spark Plug: NGK DPR 9Z
Starting: Kick
Max Power: 30 hp / 21.9 kW @ 9000 rpm
Max Torque: 24.5 Nm @ 7500 rpm
Transmission: 6 Speed
Final Drive: Chain
Front Suspension: 41 mm Air assisted telescopic forks
Front Wheel Travel: 280 mm / 11.0 in
Rear Suspension: Pro-Link, adjustable compression and rebound
Rear Wheel Travel: 280 mm / 11.0 in
Front Brakes: Single 240 mm disc 2 piston caliper
Rear Brakes: Single 220 mm disc 1 piston caliper
Front Tyre: 80/100-21
Rear Tyre: 110/100-18
Rake: 26.5°
Trail: 105 mm / 4.1 in
Dimensions: Length 2035 mm / 80.1 in Width 965 mm / 37.9 in Height 1100 mm / 43.3 in
Wheelbase: 1420 mm / 55.9 in
Seat Height: 905 mm / 35.6 in
Ground Clearance: 315 mm / 12.4 in
Dry Weight: 108 kg / 238 lbs
Wet Weight: 112 kg / 247 lbs
Fuel Capacity: 9 Litres / 2.4 gal
