Technical specifications
|

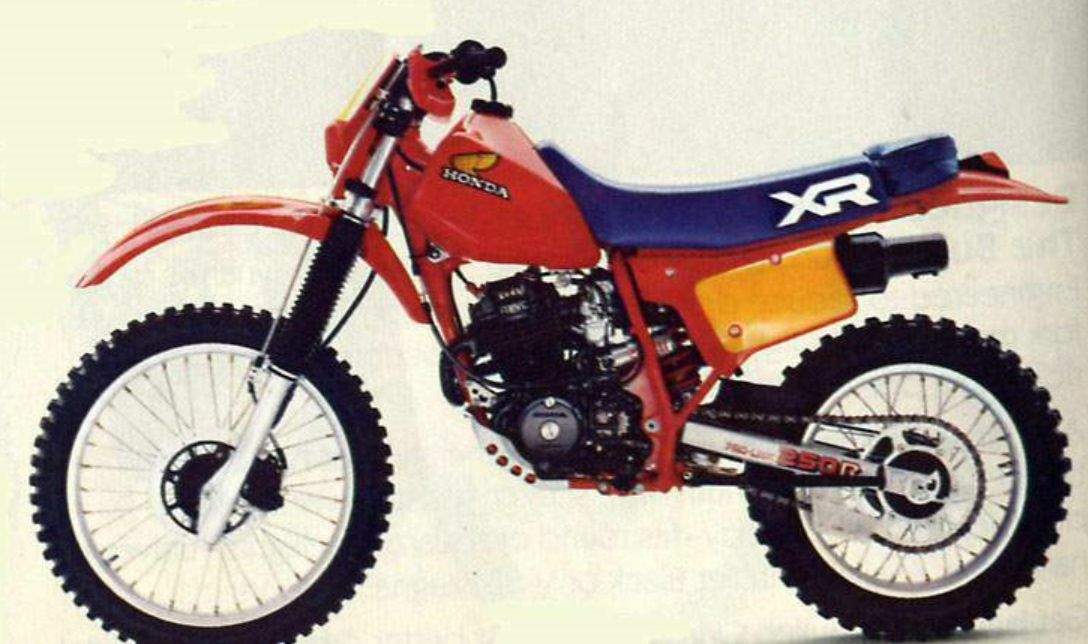

| Model: |
XR 250R |
| Years: |
1984 |
|
Engine:
|
Four-stroke, single cylinder SOHC, 4 valve, RFVC (Radial Four Valve Combustion Chamber)
|
|
Capacity:
|
249 cc / 15.1 cu-in
|
|
Bore x Stroke:
|
75 x 56.5 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
9.3:1
|
|
Induction:
|
2x 24mm Keihin CV
|
|
Ignition:
|
CDI
|
|
Spark Plug:
|
NGK DPR 9Z
|
|
Starting:
|
Kick
|
|
Max Power:
|
30 hp / 21.9 kW @ 9000 rpm
|
|
Max Torque:
|
24.5 Nm @ 7500 rpm
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Gear Ratio:
|
1st 2.769 2nd 1.882 3rd 1.380 4th 1.083 5th 0.923 6th 0.814
|
|
Front Suspension:
|
Leading axel air spring 38mm forks
|
|
Front Wheel Travel:
|
254 mm / 10.0 in
|
|
Rear Suspension:
|
Pro-link Kayaba damper adjustment for spring preload and rebound damping.
|
|
Rear Wheel Travel:
|
247 mm / 9.6 in
|
|
Front Brakes:
|
Single 240mm disc 2 piston calipers
|
|
Rear Brakes:
|
Drum
|
|
Front Tyre:
|
80/100-21
|
|
Rear Tyre:
|
110/90-17
|
|
Rake:
|
26°
|
|
Trail:
|
105 mm / 4.1 in
|
|
Wheelbase:
|
1364 mm / 53.7 in
|
|
Seat Height:
|
905 mm / 35.6 in
|
|
Ground clearance:
|
315 mm / 12.4 in
|
|
Dry Weight:
|
108 kg / 238 lbs
|
|
Wet Weight:
|
112 kg / 247 lbs
|
|
Fuel Capacity:
|
9 Litres / 2.4 gal
|
