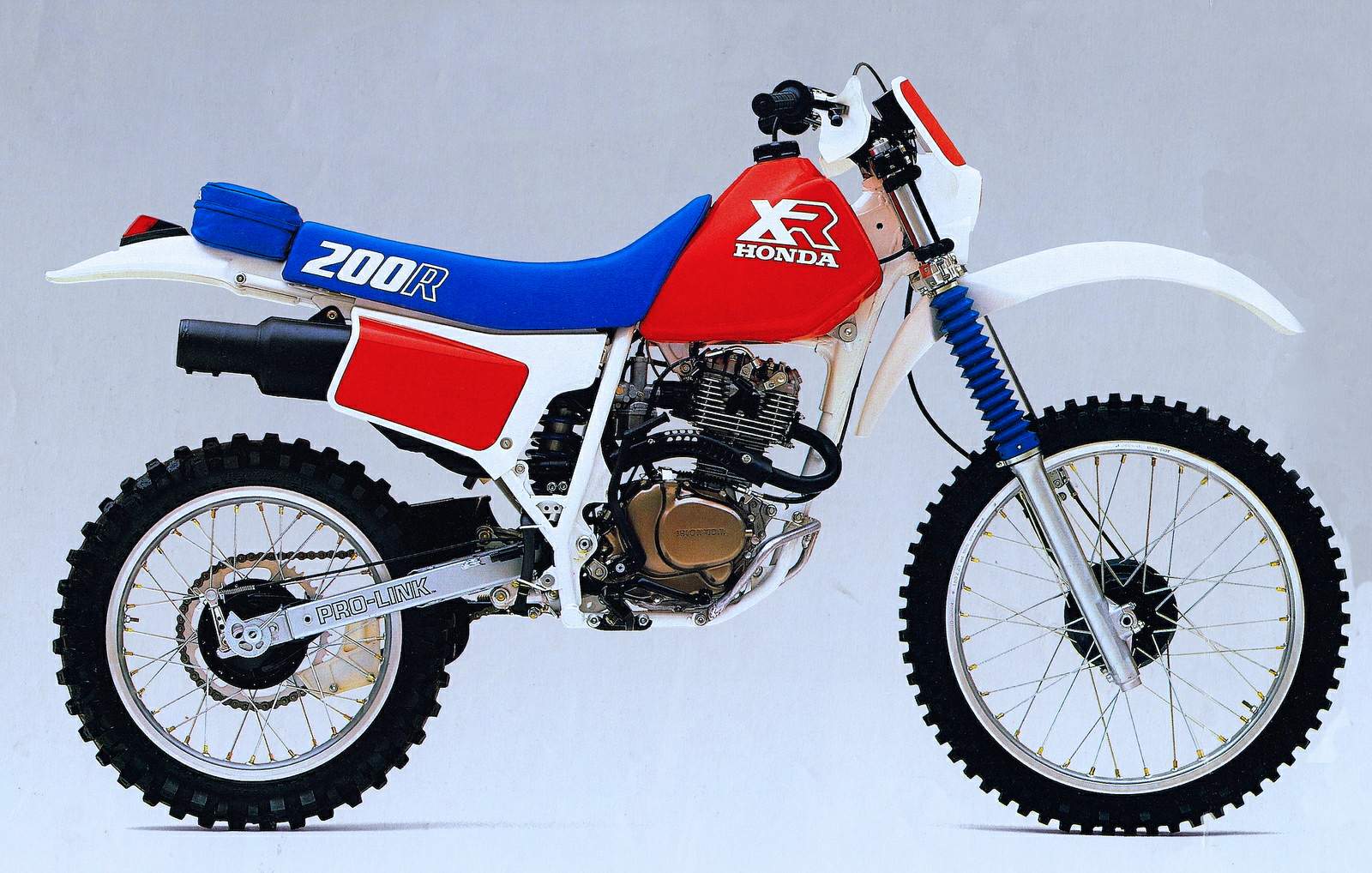

Honda XR 200R (1986) technical specifications
Honda XR 200R is produced in 1986. Engine is Four stroke, single cylinder SOHC, 2 valve, chain driven overhead camshaft, displacement 195 cc / 11.8 cu-in , produces power 23 hp / 17.1 Kw @ 9000 rpm and 19.5 Nm / 14.4 lb-ft @ 7500 rpm. Honda XR 200R weighs 102 kg / 224.8 lbs. Honda XR 200R has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | XR 200R |
| Years: | 1986 |
| Engine: | Four stroke, single cylinder SOHC, 2 valve, chain driven overhead camshaft |
| Capacity: | 195 cc / 11.8 cu-in |
| Bore x Stroke: | 67 x 56.5 mm |
| Compression Ratio: | 10.2:1 |
| Lubrication: | Forced pressure and wet sump |
| Induction: | 2x 20 mm piston valve Keihin carburator |
| Ignition: | Solid state CD |
| Spark Plug: | NGK DR8ES-L |
| Starting: | Kick |
| Max Power: | 23 hp / 17.1 Kw @ 9000 rpm |
| Max Torque: | 19.5 Nm / 14.4 lb-ft @ 7500 rpm |
| Clutch: | Wet multiplate type |
| Transmission: | 6 Speed |
| Final Drive: | Chain |
| Primary Reduction: | 3.316 |
| Gear Ratio: | 1st 2.769:1 2nd 1.941:1 3rd 1.450:1 4th 1.130:1 5th 0.923:1 6th 0.785:1 |
| Frame: | Semi double cradle |
| Front Suspension: | 36 mm Air-adjustable forks with dual Syntallic bushings |
| Front Wheel Travel: | 254 mm / 10.0 in |
| Rear Suspension: | Pro-Link, single Showa shock, adjustable |
| Rear Wheel Travel: | 246 mm / 9.7 in |
| Front Brakes: | Drum, swept area - 86.3 cm2 / 13.3 sq. in. |
| Rear Brakes: | Drum, swept area - 86.3 cm2 / 13.3 sq. in |
| Front Tyre: | 3.00/21(6PR) |
| Rear Tyre: | 110/90/17(6PR) |
| Rake: | 26° |
| Trail: | 105 mm / 4.1 in |
| Dimensions: | Length 2035mm / 80.1 in Width 865mm / 34.1 in Height 1180mm / 46.5 in |
| Wheelbase: | 1365 mm / 53.7 in |
| Seat Height: | 905 mm / 35.6 in |
| Dry Weight: | 102 kg / 224.8 lbs |
| Wet-Weight: | 109 kg / 240 lbs |
| Ground Clearance: | 315 mm / 12.4 in |
| Fuel Capacity: | 9.0 Litres / 2.4 gal |
