Technical specifications
|
| Model: |

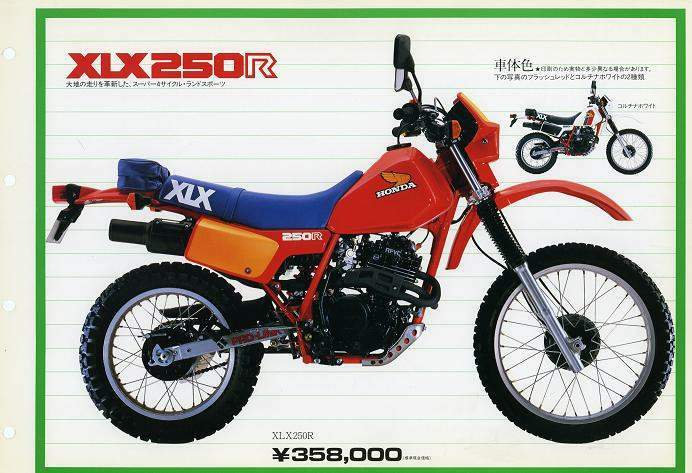

XLX 250R |
| Years: |
1983 |
|
Engine:
|
Four stroke, single cylinder, SOHC, 4 valve
|
|
Capacity:
|
249 cc / 15.1 cu-in
|
|
Bore x Stroke:
|
75 x 56.5 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
10.2:1
|
|
Induction:
|
1x 28mm Keihin
|
|
Ignition:
|
Electronic
|
|
Starting:
|
Kick
|
|
Clutch:
|
Wet multi-plate
|
|
Max Power:
|
20.2 hp / 15 kW @ 7500rpm
|
|
Max Torque:
|
19.6 Nm / 14.5 lb ft @ 8000 rpm
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
Air assisted telescopic fork
|
|
Front Wheel Travel:
|
210 mm / 8.2 in
|
|
Rear Suspension:
|
Single shock, swing arm
|
|
Rear Wheel Travel:
|
109 mm / 4.2 in
|
|
Front Brakes:
|
Drum
|
|
Rear Brakes:
|
Drum
|
|
Front Tyre:
|
3.00 -21
|
|
Rear Tyre:
|
4.60 -17
|
|
Wet Weight:
|
131.0 kg / 288.8 lbs
|
|
Fuel Capacity:
|
9 Litres / 2.6 gal
|
