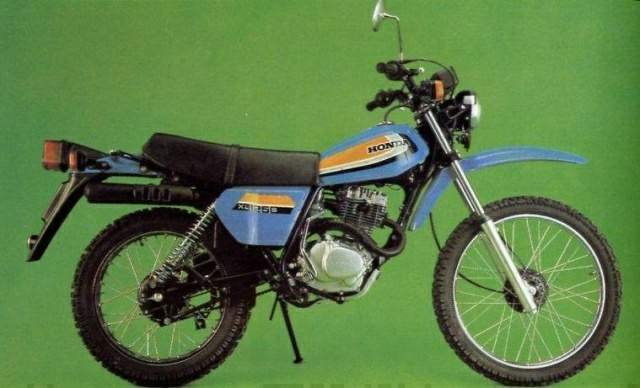

Honda XL125S (1977-78) technical specifications
Honda XL125S is produced in 1977-78. Engine is Four stroke, single cylinder, OHC, displacement 124 cc / 7.6 cu-in , produces power 12.5 hp / 9.5 kW @ 10000 rpm. Honda XL125S weighs 106.6 kg / 235 lbs. Honda XL125S has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | XL125S |
| Years: | 1977-78 |
| Engine: | Four stroke, single cylinder, OHC |
| Capacity: | 124 cc / 7.6 cu-in |
| Bore x Stroke: | 56 X 49 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.3;1 |
| Induction: | 1X 26 Keihin carburetor |
| Ignition: | Magneto |
| Starting: | Kick |
| Max Power: | 12.5 hp / 9.5 kW @ 10000 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Front Suspension: | Telescopic forks |
| Rear Suspension: | Swinging fork |
| Front Brakes: | 130mm Drum |
| Rear Brakes: | 120mm Drum |
| Front Tyre: | 2.75 -21 |
| Rear Tyre: | 4.00 -18 |
| Seat Height: | 818 mm / 32.2 in |
| Dry Weight: | 106.6 kg / 235 lbs |
| Fuel Capacity: | 6.8 Litres / 1.6 US gal |
