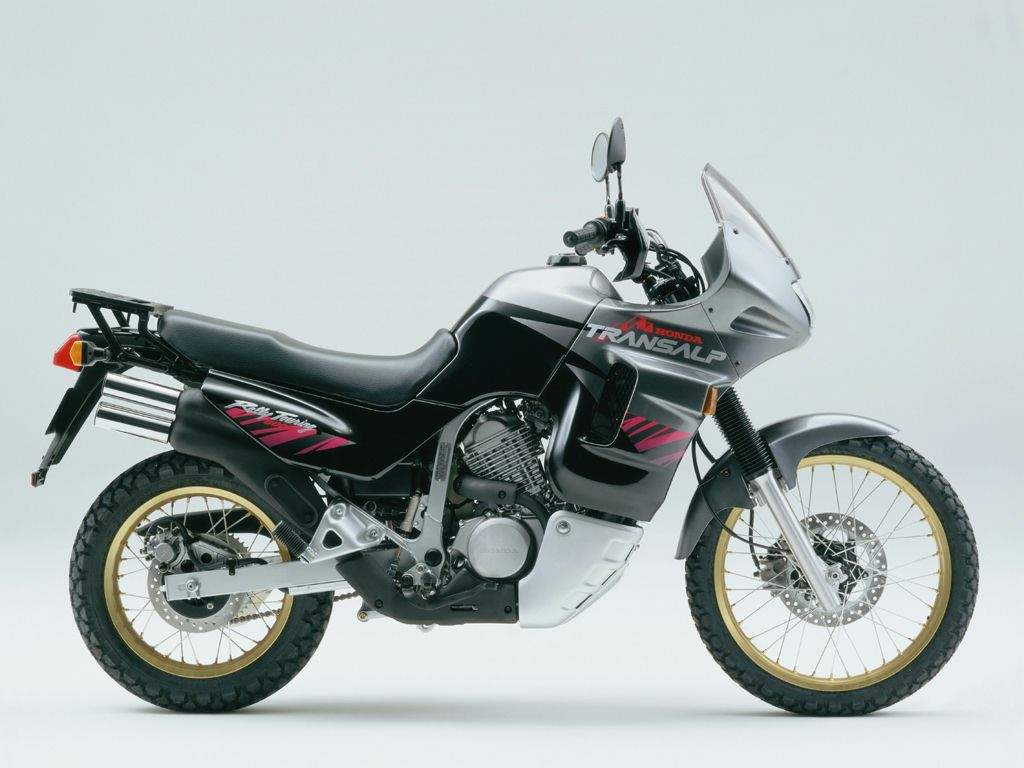

Honda XL 600V Transalp (1994) technical specifications
Honda XL 600V Transalp is produced in 1994. Engine is Four stroke, 52° V-Twin, SOHC, 3 valves per cylinder, displacement 583 cc / 35.5 cu-in , produces power 50 hp / 36.5 kW @ 8000 rpm and 52.6 Nm / 38.8 ft-lb @ 6000 rpm. Honda XL 600V Transalp top speed is 172.5 km/h. Honda XL 600V Transalp weighs 183.0 kg / 404 lbs. Honda XL 600V Transalp has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | XL 600V Transalp |
| Years: | 1994 |
| Engine: | Four stroke, 52° V-Twin, SOHC, 3 valves per cylinder |
| Capacity: | 583 cc / 35.5 cu-in |
| Bore x Stroke: | 75.0 x 66 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 9.2:1 |
| Induction: | 2x 32 mm Keihin Carburettor CV |
| Ignition: | Electronic |
| Electrical: | Electronical double CD-I ingnition, 12Vdc, 12V/12Ah battery, AC-generator, electrical starter, electronic safegard on side stand |
| Generator: | 0.310 kW / 5000 rpm |
| Starting: | Electric |
| Max Power: | 50 hp / 36.5 kW @ 8000 rpm |
| Max Torque: | 52.6 Nm / 38.8 ft-lb @ 6000 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Gear Ratio: | 1st: 2.571 2nd: 1.777 3rd: 1.380 4th: 1.125 5th: 0.961 |
| Frame: | Single downtube with double loop cradle of rectangular section |
| Front Suspension: | 41 mm Telescopic hydraulic forks |
| Front Wheel Travel: | 200 mm / 7.8 in |
| Rear Suspension: | Pro-link monoshock |
| Rear Wheel Travel: | 187 mm / 7.4 in |
| Front Brakes: | Single 276 mm disc 2 piston caliper |
| Rear Brakes: | Single 240 mm disc 1 piston caliper |
| Front Tyre: | 90/90-21 |
| Rear Tyre: | 130/80-17 |
| Dimensions: | Length 2260 mm / 89.0 in Width 865 mm / 34.0 in Height 905 mm / 35.6 in |
| Wheelbase: | 1505 mm / 59.2 in |
| Seat Height: | 850 mm / 33.5 in |
| Ground Clearance: | 195 mm / 7.7 in |
| Dry Weight: | 183.0 kg / 404 lbs |
| Wet Weight: | 202.0 kg / 445 lbs |
| Fuel Capacity: | 18 Litres / 4.7 US gal |
| Consumption Average: | 18.3 km/lit |
| Braking 60 - 0 / 100 - 0: | 13.3 m / 42.1 m |
| Standing ¼ Mile: | 13.4 sec / 152.8 km/h |
| Top Speed: | 172.5 km/h |
| Related Links: | Technical / xrv.org.uk / blackbears.ru |

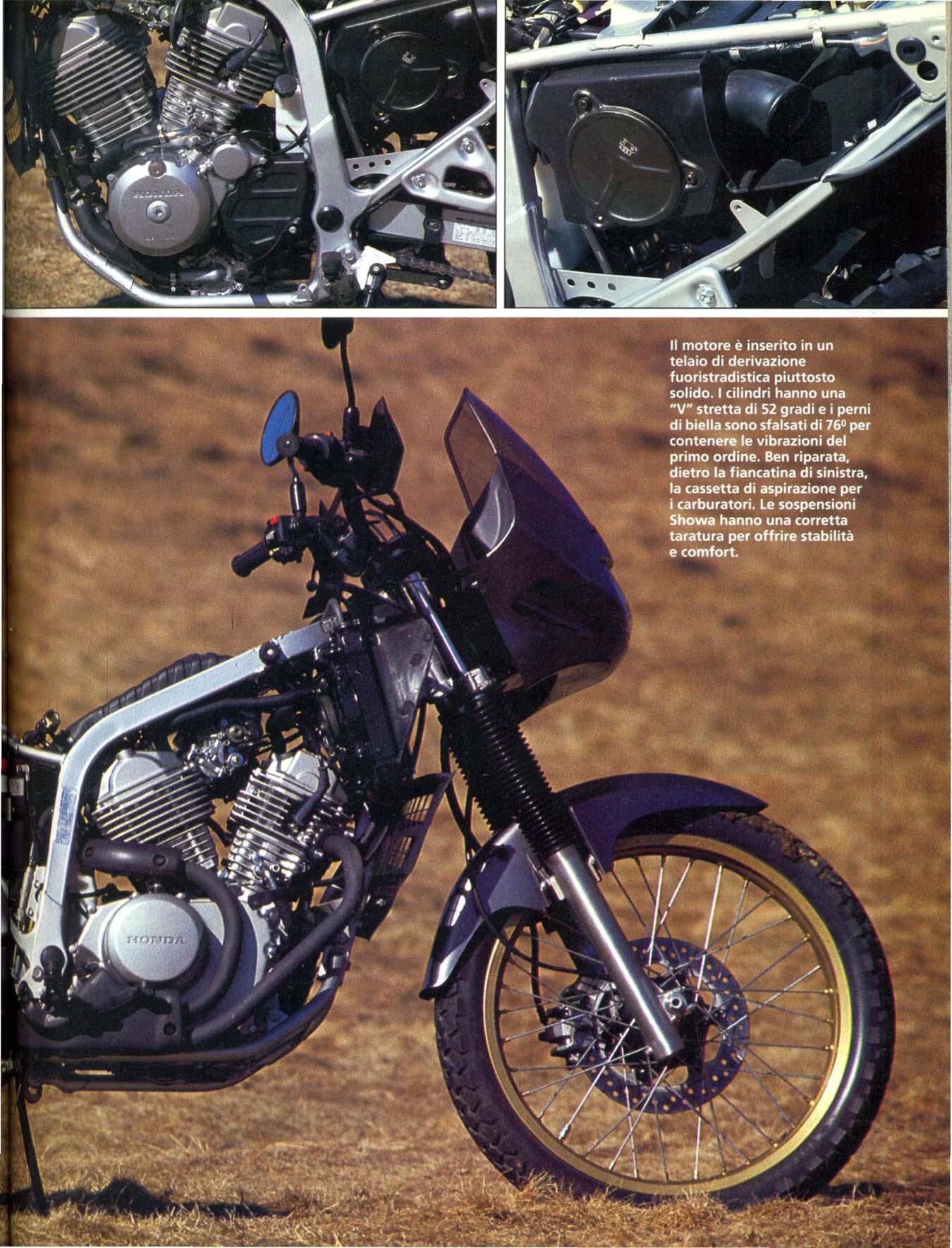

| Road Test: | Motociclismo 1994 |
